Engine Control Module

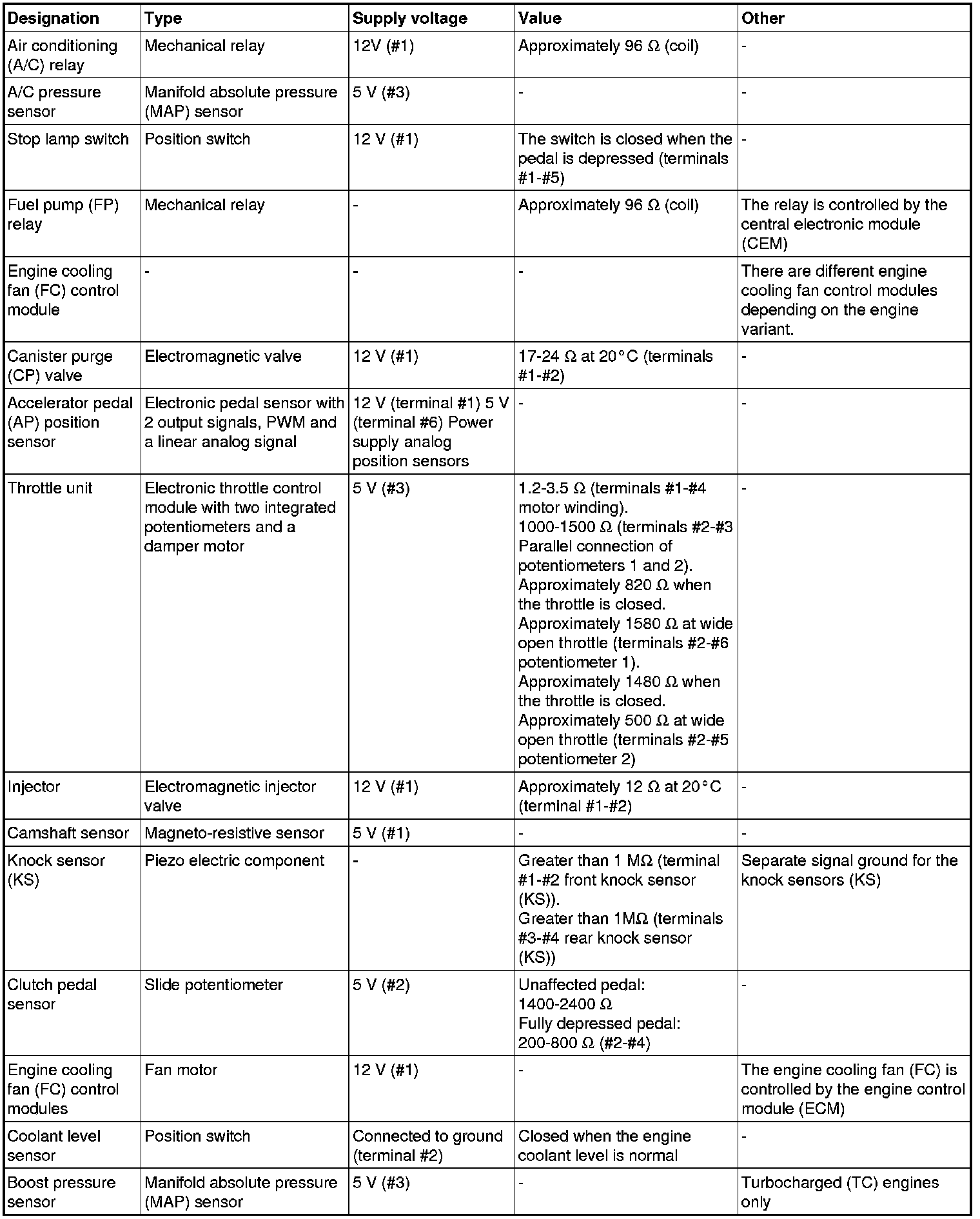

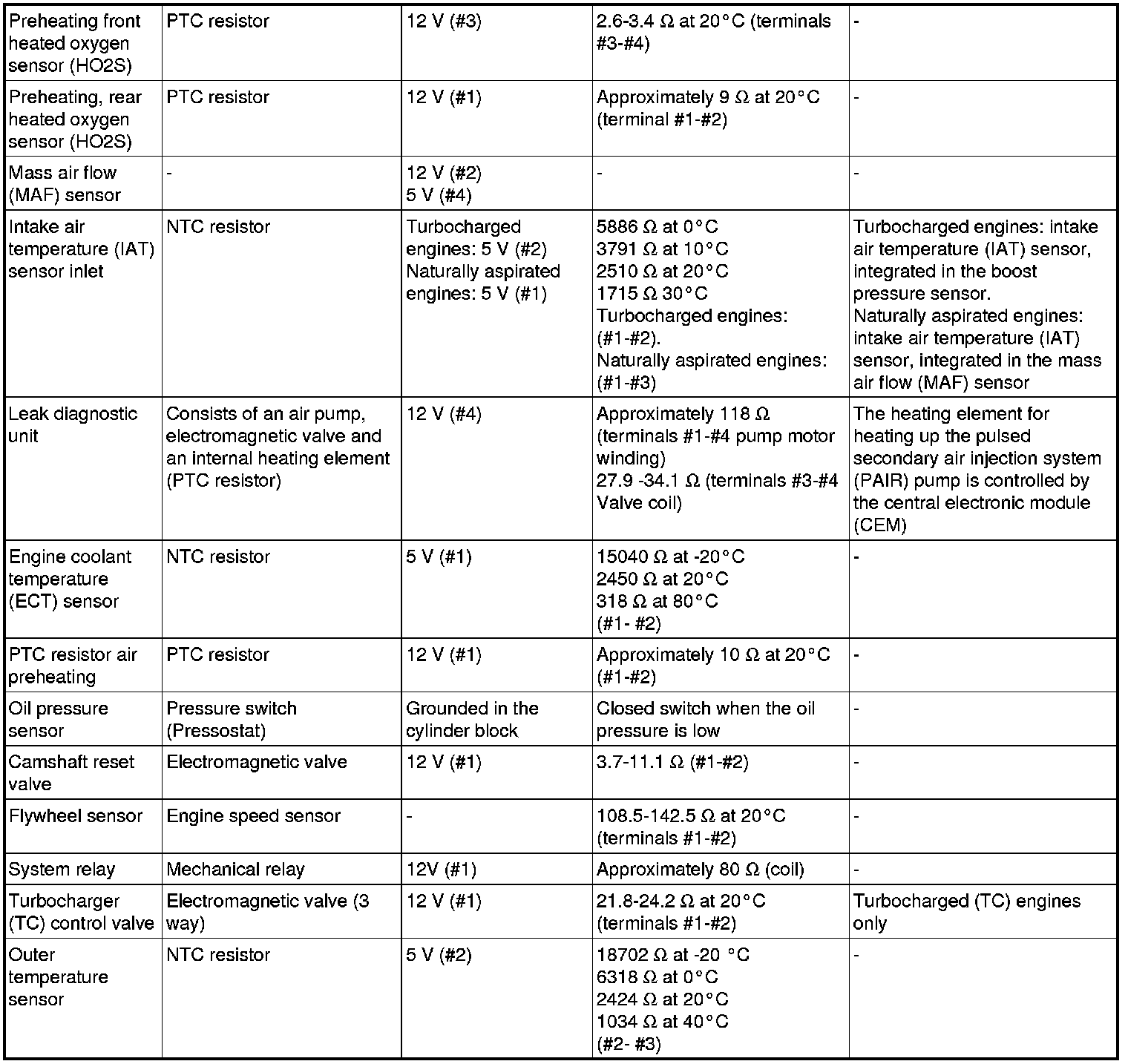

Component specifications

Note! For S60/V70 2004- B5254T2 AW55-50SN US market, see Component specifications, B5244T5, B5254T2 Specifications.

The component specification gives the value of the component when the connector is disconnected. Where no value is given, it is not possible to measure a relevant value at the component.
The figure within the brackets indicates the terminal pin on the component to which the value refers.
