Rear Subframe: Service and Repair
Sub-frame rear, replacing
Special tools:
999 5659 Tension caliper 999 5659 Tension Caliper
Removing the sub-frame
Preparations
Raise the car.
Note! Lift the sill edges so that the rear axle is free.
Remove
- the wheels
- the mounting screws for the brake caliper
- the ABS sensor
- The mountings for the ABS line. Hang up the line and the brake caliper. Use a piece of wire
- the screw for the bracket for the brake pipe on the sub-frame
- the locating pin for the brake disc
- the brake disc.
- the return spring at the expander
- the expander. Lift the brake shoe slightly.
Unhook the expander (1) from the mounting for the mechanical cable.

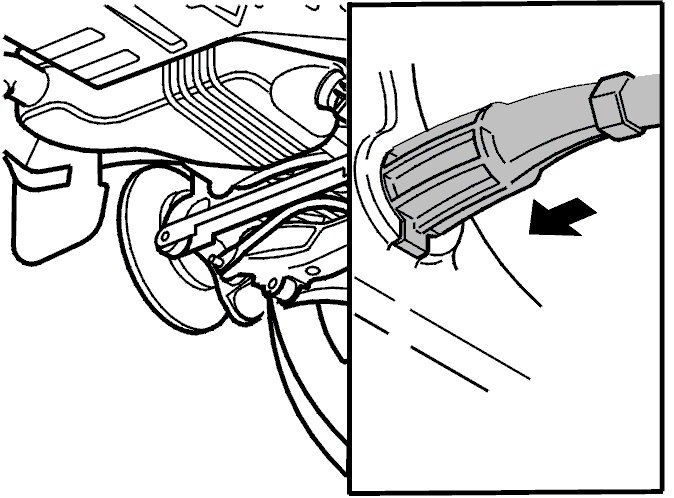

- the guide sleeve for the cable sleeve. Apply a screwdriver between the guide sleeve lug and wheel arch. Pry apart slightly to remove the sleeve.
- the parking brake cable from the tie rod and sub-frame
- the exhaust system. See Exhaust system, replacing Service and Repair
- the springs and shock absorbers. See Spring rear, replacing Spring Rear, Replacing.
- EVAP canister screw.
Note! The canister hangs in the bodywork when the sub-frame is lowered.
Remove
- the plastic nut for the fender liner. Bend the fender liner out of the way.
Drill out the heat deflector plate rivet on the sub-frame left rear bushing.
Remove the sub-frame
Position a lifting table under the sub-frame.
Remove
- the four sub-frame mountings
- the sub-frame brackets screws

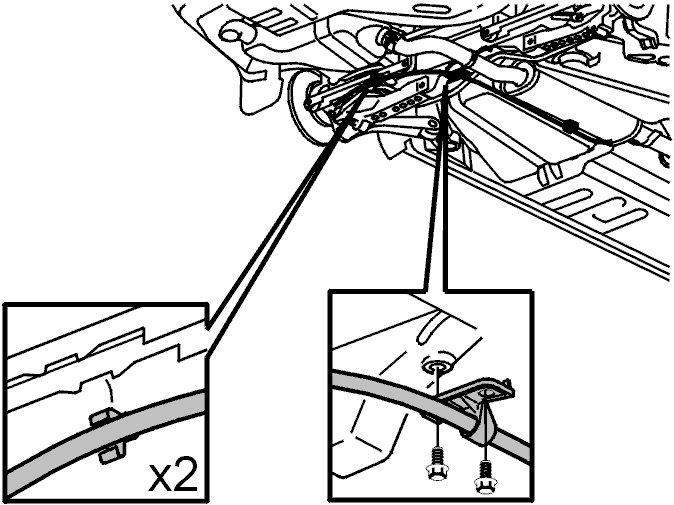

- the brake hose mounting stays from mountings on the brackets
- the brake pipes from the plastic clips on the brackets.
Note! Remove the fuel filter bracket on the right bracket.
Carefully lower the sub-frame.
Remove components from the sub-frame

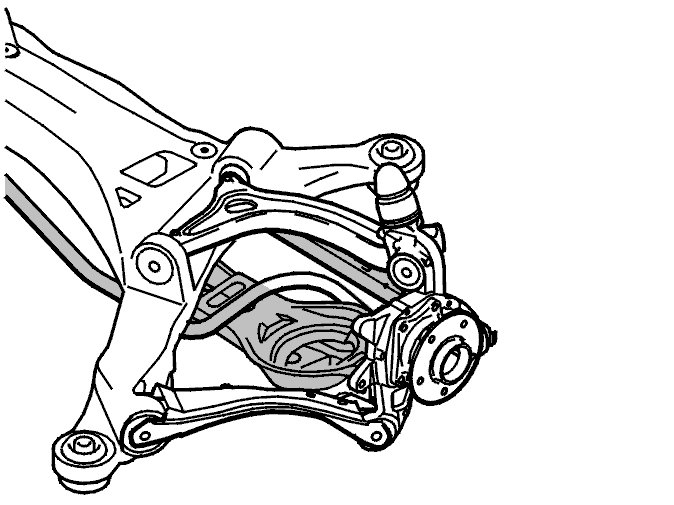

Note! The lateral link, tie rod, lower control arm and wheel spindle are removed from the sub-frame as one unit.
Remove
- the lateral links from the sub-frame
- the tie rods
- the wheel spindle from the upper control arm
- the anti-roll bar control arms from the upper control arm
- the anti-roll bar from the sub-frame.
Installing the sub-frame
Install components on the sub-frame
Note! To ensure that there is no exhaust leakage, see: Flanged joint, assembling Flanged Joint, Assembling.
Install
- the upper control arm. See Installing the upper control arm Installing the Upper Control Arm

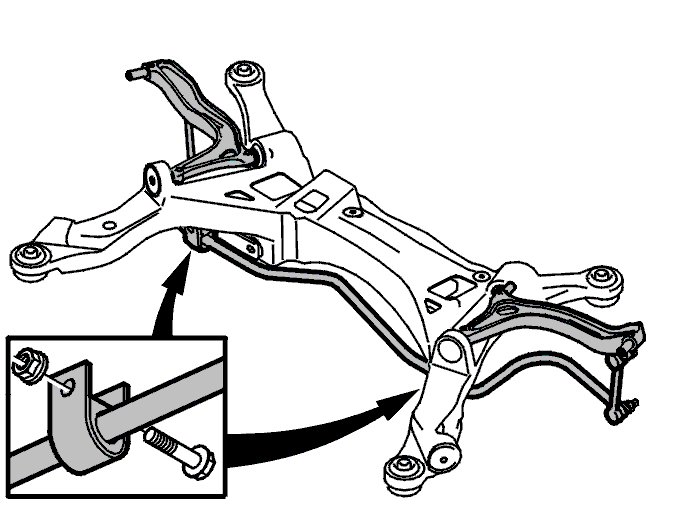

- the anti-roll bar on the new sub-frame. Tighten to 80 Nm.
Note! Lateral link, tie rod, lower control arm and wheel spindle are installed on the new sub-frame as one unit.
Install
- the wheel spindle to the upper control arm. Do not tighten so hard that the toothed segment goes into the bushing on the wheel unit
- the lateral links on the sub-frame. Finger tighten
- tie rods on the sub-frame. Finger tighten
- the lower control arm on the sub-frame. Finger tighten.
Press the control arm to the normal position using a mobile jack. See Normal position Normal Position.

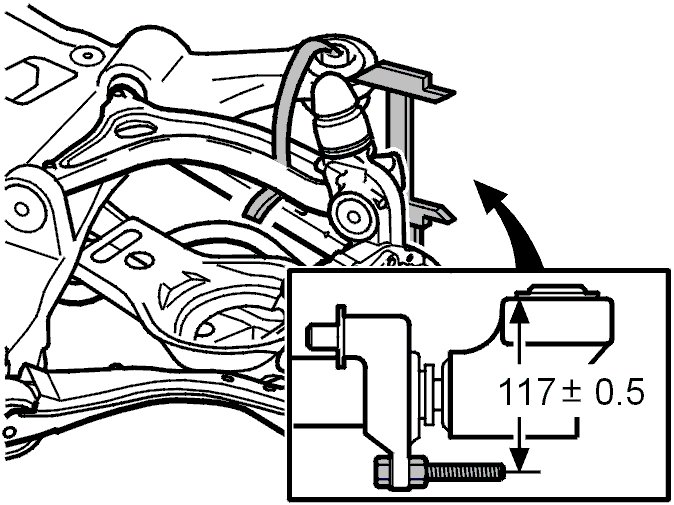

- Install a M12x70 mm screw and nut in the hole for the anti-roll bar on the control arm, to assist when measuring
- Check the height measurement on the control arm. If necessary adjust the height measurement using a tie strap
- Tighten the wheel spindle to the upper control arm. Tighten to 50 Nm

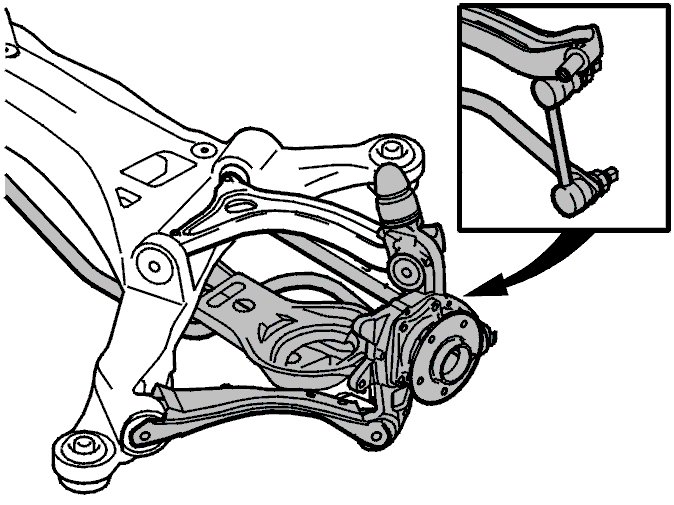

- Install anti-roll bar control arms to the upper control arm. Tighten to 80 Nm.
Note! Counterhold the ball joint so as not to damage the boot.
Reinstall the sub-frame
Hint: Make up two centering sleeves which are then placed on the rear mountings for the sub-frame. This will make it easier to center the rear suspension. Measured at the centering sleeves A=20mm, B=13mm, C=50mm.
Place the sub-frame on a lifting table.
- Lift up the sub-frame enough to be able to install the EVAP canister. Tighten to 25 Nm
- Lift the sub-frame up completely to the bodywork.
Release the lower control arms from the sub-frame.
Note! Ensure that the brake pipes are not crimped at the sub-frame mountings.
Install
- the brake line mounting stays on the sub-frame bracket. Tighten to 25 Nm
- the brake pipe in the clips on the sub-frame brackets.
Note! Use newscrews for the sub-frame mountings.
- Slide up the centering sleeves in the two rear mountings on the sub-frame
- Install the screw. Tighten lightly
- Install the screws for the front mountings on the sub-frame. Install the screws through the brackets
- Install the screw for the brackets
- Tighten all the front mountings. Tighten to 80 Nm
- Remove the screw for the rear mountings on the sub-frame. Remove the centering sleeves
- Install the screws for the rear mountings on the sub-frame. Tighten to 80 Nm
- Install the fuel filter and holder on the right bracket. Tighten to 25 Nm.
Remove the lifting table.
Finishing
- Pop rivet the heat deflector for the exhaust pipe into the left rear mounting on the sub-frame
- Install the fender liner. Tighten the fender liner with the plastic nut.
Install
- the parking brake cable mounting in the sub-frame. Tighten to 25 Nm
- the mounting for parking brake cable on the tie rod
- the exhaust system. See Exhaust system, replacing Service and Repair
- the springs and shock absorbers. See Spring rear, replacing Spring Rear, Replacing.
Note! At the same time, tighten the tie rods and lateral links to the sub-frame. Tighten to 80 Nm.Use tensioner 999 5659 Tension caliper 999 5659 Tension Caliper
Press the cable sleeve guide sleeve into place in the mounting.
Install
- the expander on the mounting for the mechanical cable
- the expander between the brake shoes
- the return spring.
Check the function.
Install
- the brake disc and the locating pin. Tighten to 10 Nm
- the brake caliper. Use new screws. Tighten to 60 Nm
- the ABS sensor. Tighten to 10 Nm.
- the ABS line on the holder on the wheel spindle.
- the wheels. See Installing wheels Service and Repair.
Align the wheels. See Wheel alignment, checking / adjusting Service and Repair.
