Quarter Window Glass: Service and Repair

Side window fixed, rear

Special tools:
951 2786 Handle 951 2786 Handle
951 2788 Knife blade 38 mm 951 2788 Knife Blade 38 mm

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

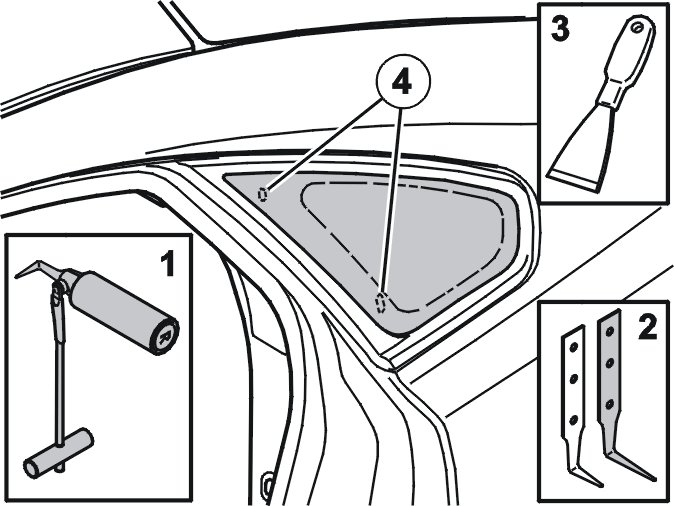

Removing the rear side window




(1) = 951 2786 Handle 951 2786 Handle
(2) = 951 2788 Knife blade 38 mm 951 2788 Knife Blade 38 mm
(3) = Sharpened putty knife
Lubricate the surfaces and inner edges of the side window using soap solution.
Note the position of the locating pins (4). See the illustration.





Note! The knife must not be too sharp above the angle (A), see the illustration.

Cut out the top of the window using the long knife. Pull in the direction of the arrow.
Stop 40 mm before the corner. Slide the knife back. Remove the knife.




Fold out the front edge of the rubber strip. Slide in the putty knife against the adhesive bead.
Tap using a hammer if necessary.
Continue down in the same way until the side window releases.

Installation

Installing the rear side window
Install the side window. See: Bonded window general, information Service and Repair.
