Antitheft - Immobilizer Lamp ON/DTC 321 Set
NO: 36-58DATE: 5-1-2007
MODEL:
S40, V40
MODEL YEAR:
2000-2004
SUBJECT:
Immobilizer Warning Lamp Lit or Flashing, IMMO-DTC 321
REFERENCE:
VIDA
DESCRIPTION:
In S40 and V40 cars, the Immobilizer warning lamp may be lit after a successful cold start.
After a restart, or after switching ignition off and on, the warning lamp is not lit any more.
While the warning lamp is lit (engine is still running), Immobilizer Diagnostic Trouble Code IMMO-DTC 321 is stored. This DTC indicates a communication problem between IMMO-ECU and ECM (Engine Control Module). When the warning lamp is not lit, there are no IMMO or ECM DTCs stored.
The customer may also experience intermittent no crank (starter motor not activated) and flashing Immobilizer warning lamp in the DIM. In most cases the engine will crank normally if the ignition is switched off and a new start attempt is made. In a few cases, several start attempts are needed to get the engine running.
SERVICE:
Install service harness P/N 30652280 according to the method below.

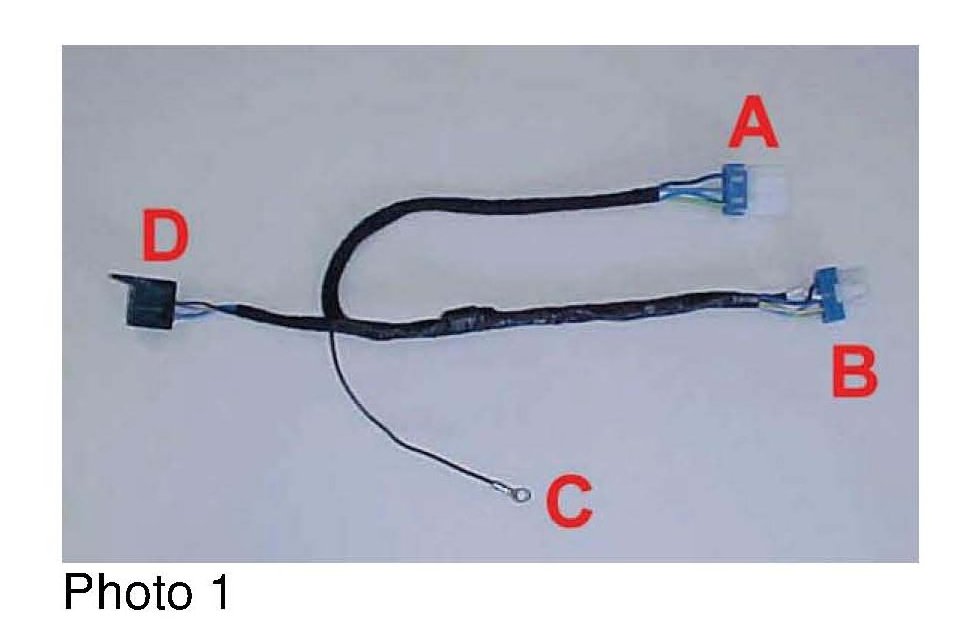

1. Required parts. Refer to Photo 1.
2. Remove driver side dashboard sound proofing.
Refer to VIDA.
3. Remove steering column covers.
Refer to VIDA.
4. Remove connector from starter switch.

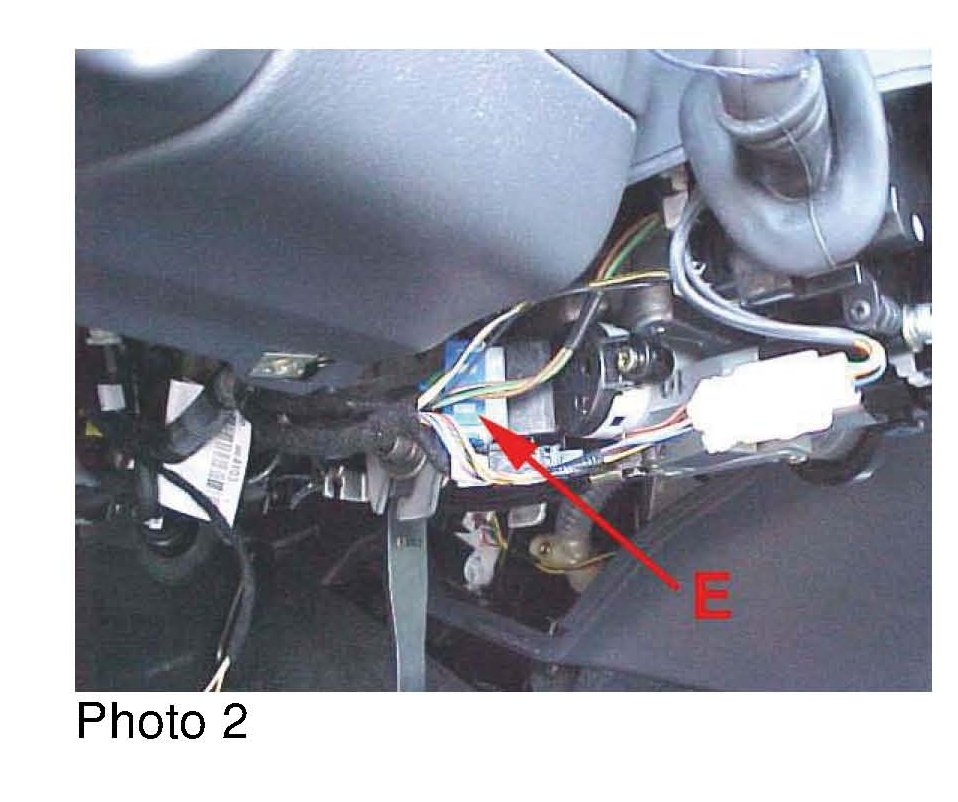

Refer to Photo 2.
^ Push the white plastic connector unlocking latch at the rear side of the connector.
^ While pushing the unlocking latch, pull connector E from the starter switch.
5. Install relay
Refer to Photo 1.
Install the relay (P/N 3472210) in relay socket D of the service harness.
6. Install service harness

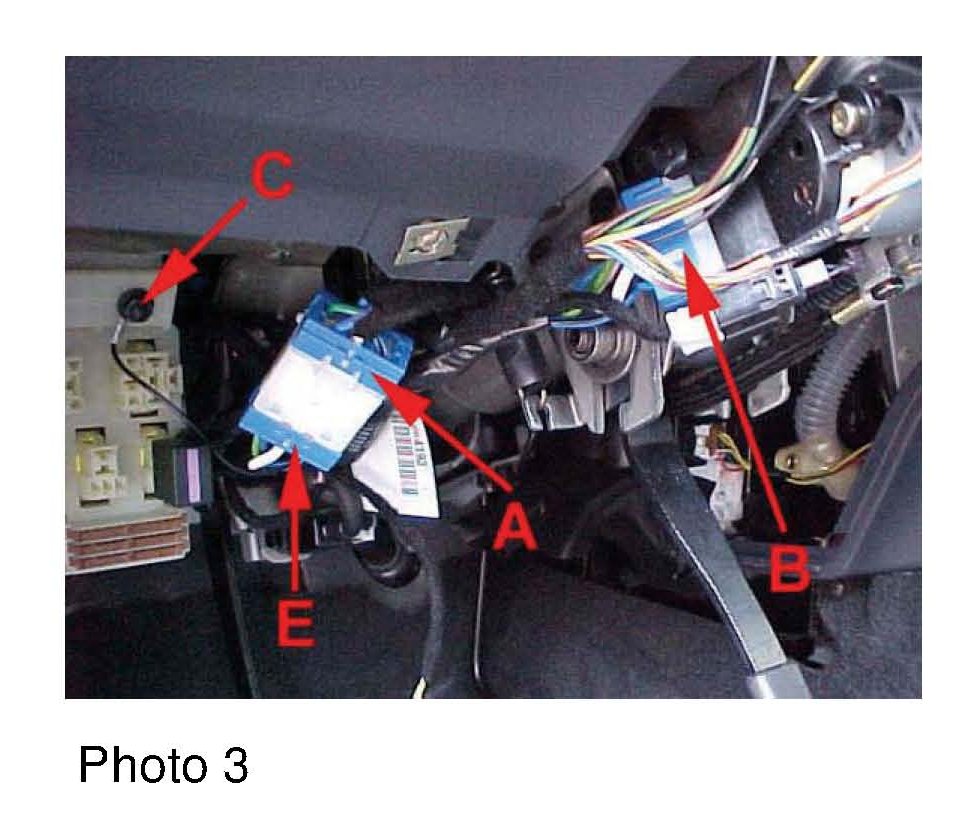

Refer to Photo 3.
^ Install connector A from the service harness to connector E (that was removed from the starter switch).
^ Install connector B from the service harness to the starter switch.
^ Place the service harness in its mounting position and fasten it with the two cable ties to the existing harness. Make sure the routing avoids potential chafing of the harness.
^ Remove one of the Junction Box upper fixation nuts, and install ground terminal C on the threaded stud. Tightening torque of the fixation nut 4.5 Nm (3.3 lb-ft).
^ Check the resistance to ground through terminal C with an ohmmeter. The resistance shall be less than 1 Ohms.
7. Test function
^ Switch ignition on.
^ The relay located in relay socket D must switch on with ignition on.
^ Crank engine; engine must start.
^ Check if Immobilizer warning lamp switches off.
^ Switch ignition off; relay located in relay socket D must switch off.
8. Re-install steering column covers
Refer to VIDA.
9. Install driver side dashboard soundproofing
Refer to VIDA.

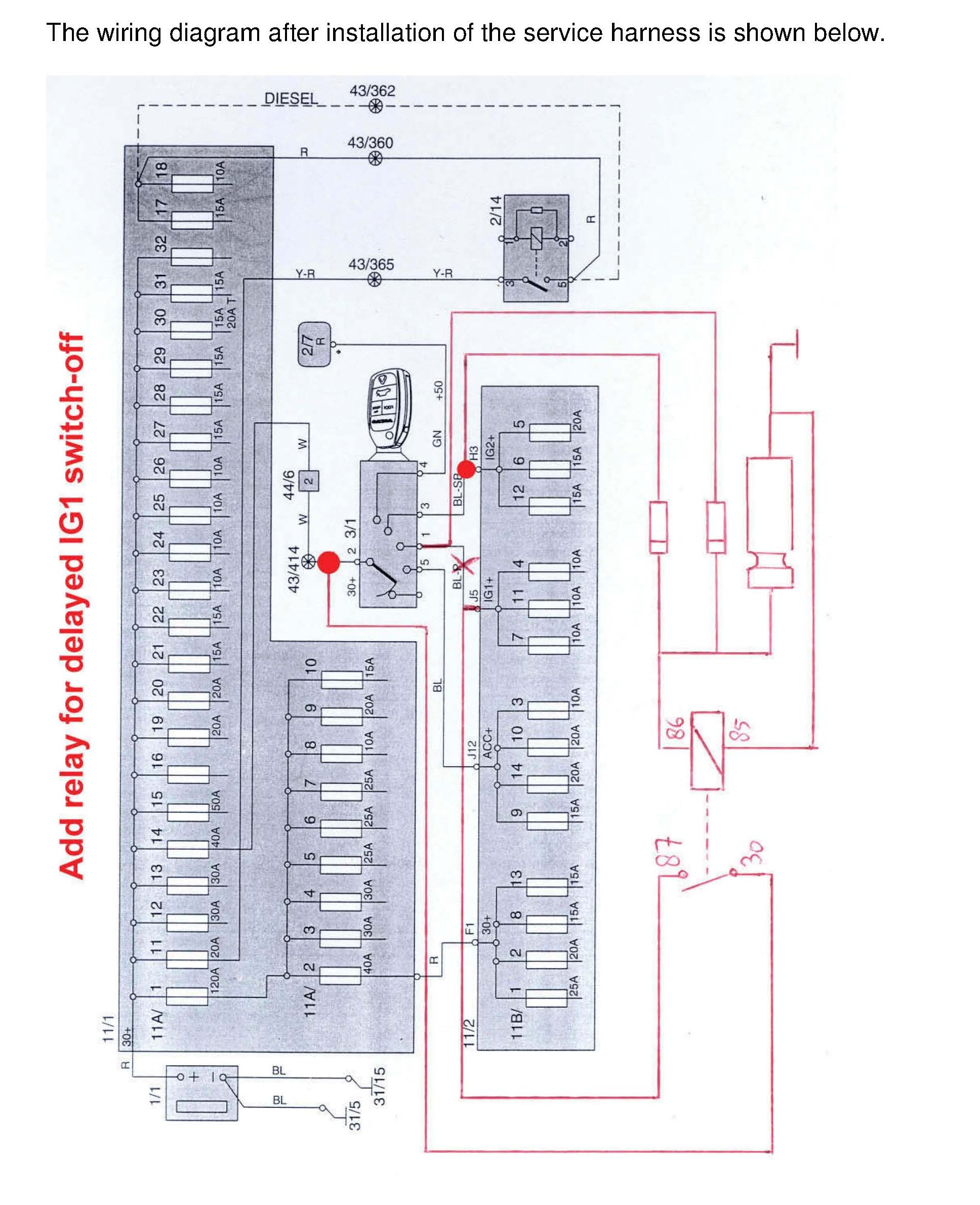

The wiring diagram after installation of the service harness is shown.

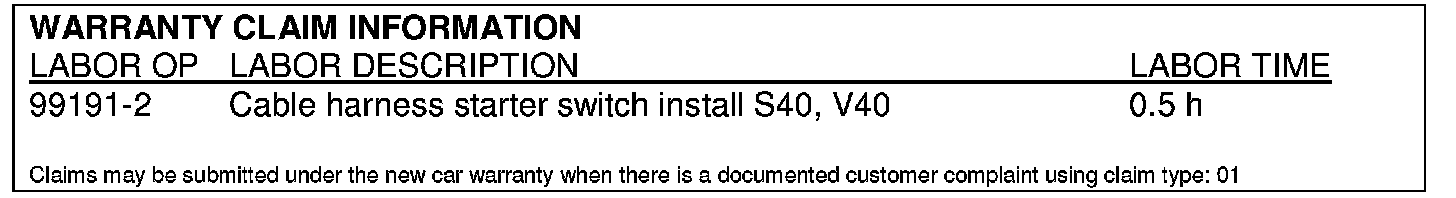

WARRANTY CLAIM INFORMATION
