Home >> Volvo >> 2004 >> S40 L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Engine Compartment Distribution Box F1-F8

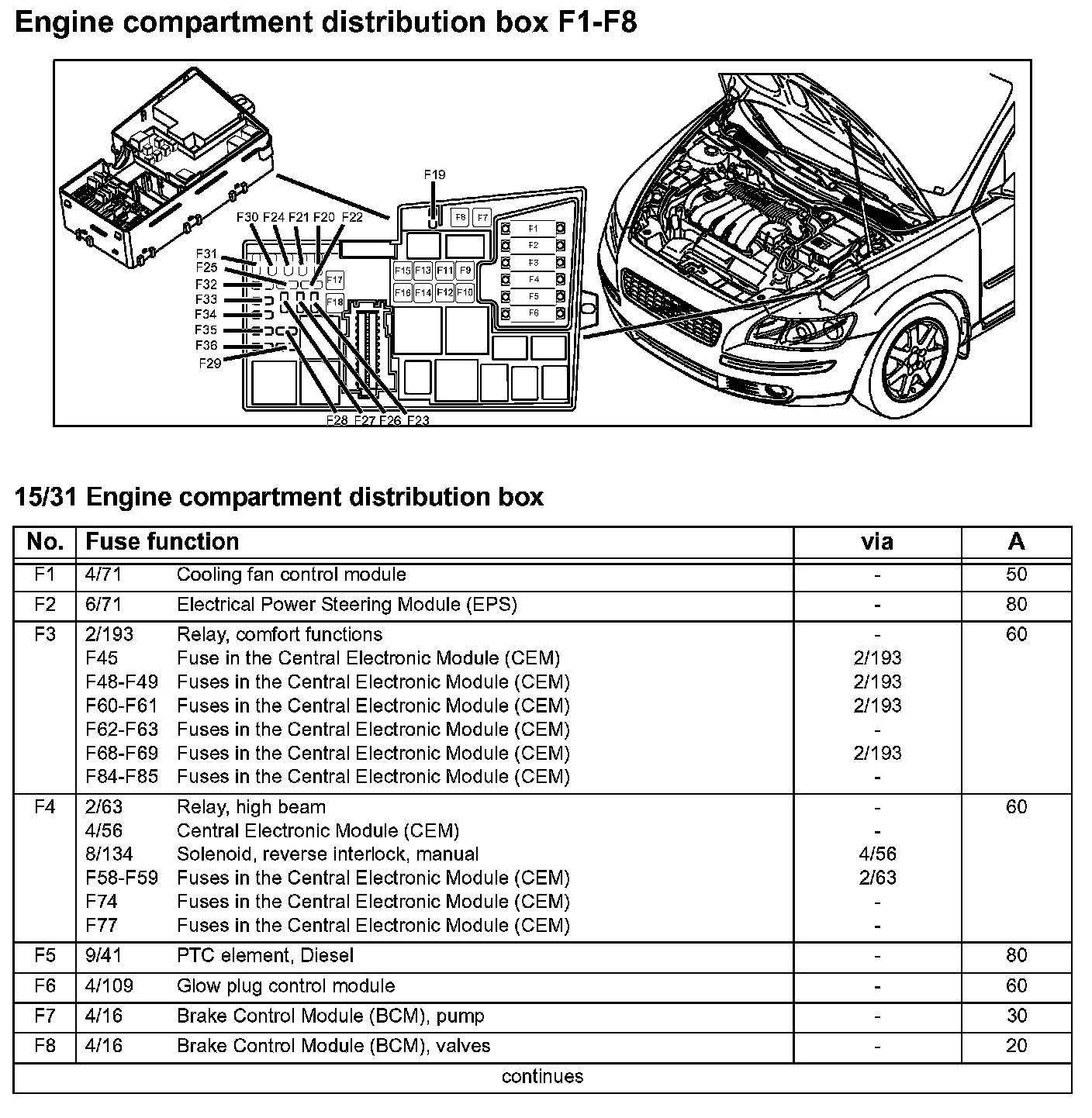

Engine Compartment Distribution Box F1-F8

Engine Compartment Distribution Box F1-F8:
