Home >> Volvo >> 2004 >> S40 L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Central Electronic Module (CEM) F67-F86

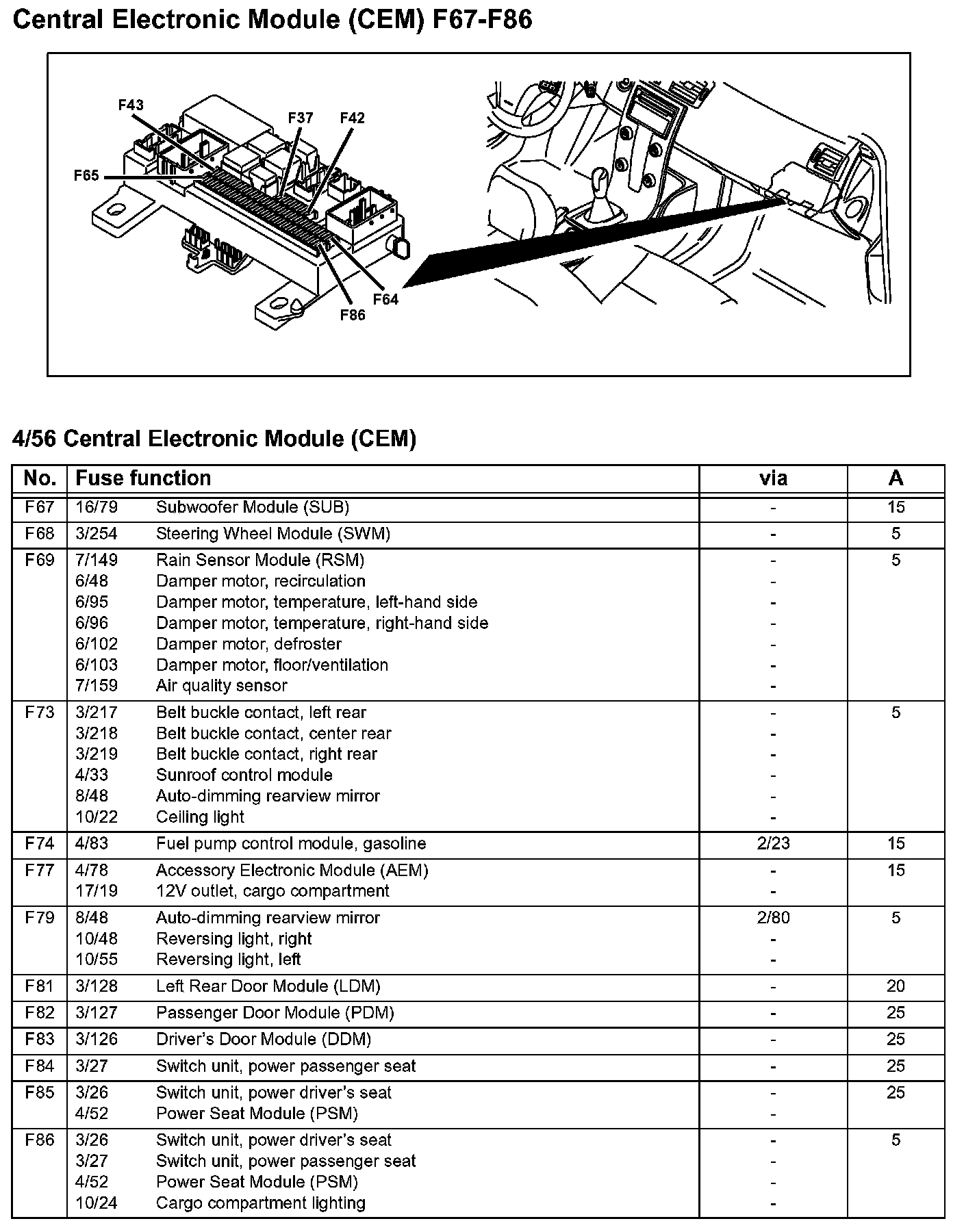

Central Electronic Module (CEM) F67-F86

Central Electronic Module (CEM) F67-F86:
