Cigarette Lighter Assembly/Electrical Socket Front, Replacing

Cigarette lighter assembly/electrical socket front, replacing

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off





Ignition off.

Removal

Removing the cigarette lighter/electrical socket

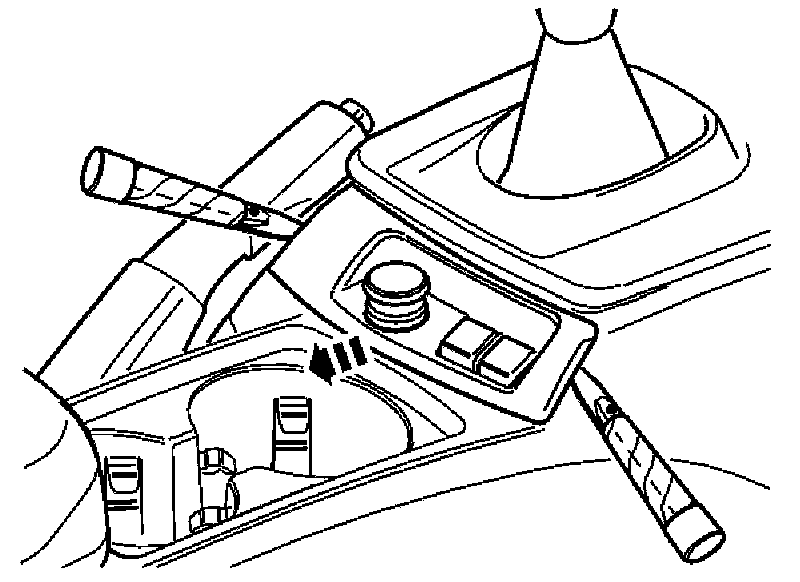

Remove:





- the cover
- the connectors.

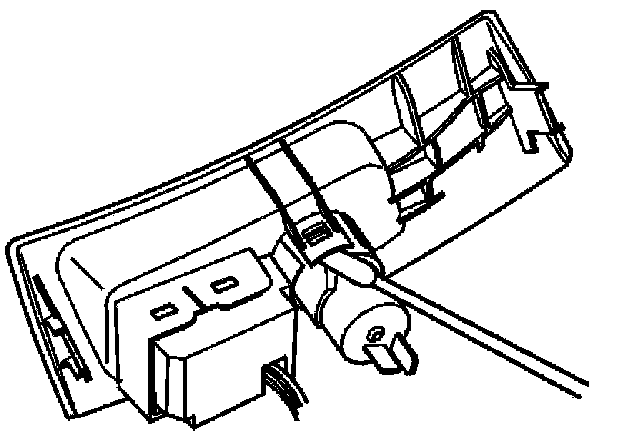

Lift up the catches (as illustrated) using a small screwdriver. Press out the cigarette lighter/electrical socket.

Installation

Installing the cigarette lighter/electrical socket

Install:
- the cigarette lighter/electrical socket
- the connectors
- the cover.
