Trim Panel, Doors

Trim Panel, Doors





Trim panel, doors

- Turn the ignition key to position 0.

NOTE: Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.

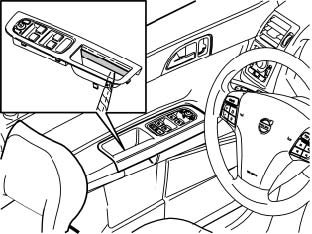

Removing the internal panel for the door handle





- Carefully pry off the small internal panel from the door handle. Use a weatherstrip tool positioned opposite the three catches, in the join at the top and bottom.

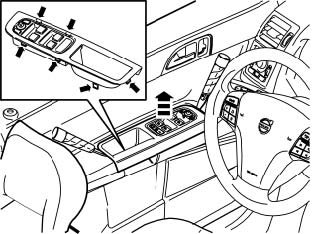

Removing the door handle panel and door module Illustration A





- Carefully pry all the way around the door handle panel and door module so that the six clips release and the trim panel releases from the door panel.

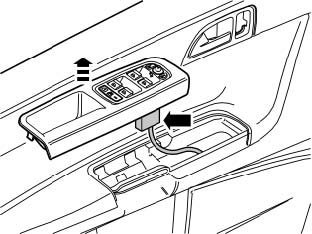

Illustration B





- Pull up the panel and door module. Disconnect the connector on the underneath.

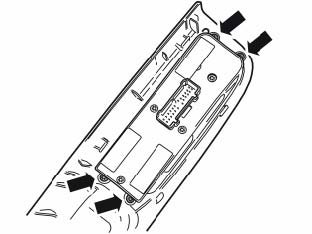

Removing the door module





- Remove the four screws holding the door module at the panel
- Remove the door module.

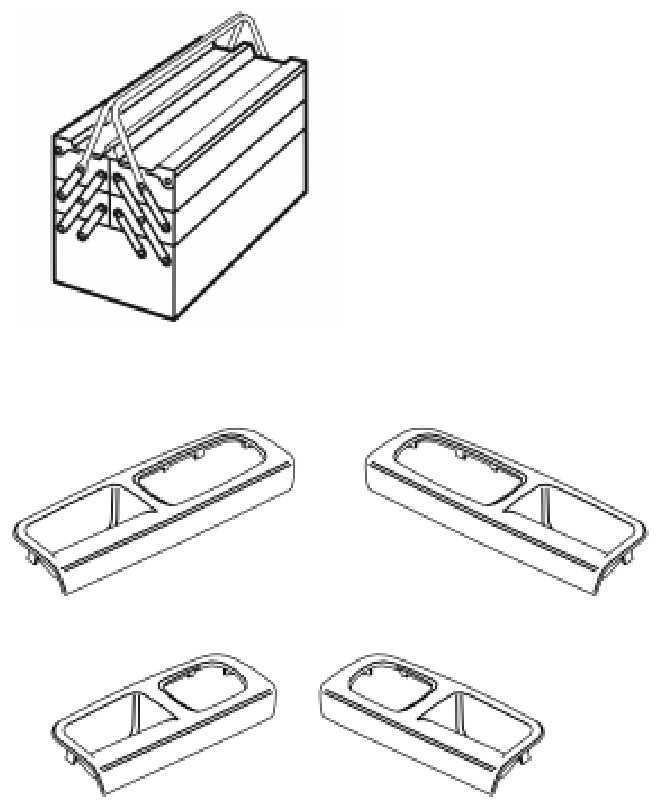

Installing a new trim panel
- Take the new panel from the kit and tighten the door module to it
- Connect the connector to the door module
- Press the new panel and door module into place. Ensure that the catches engage
- Reinstall the small internal panel.
- Repeat points 2-5 on all doors.
