Ambient Temperature Sensor / Switch HVAC: Service and Repair

Sun Sensor

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

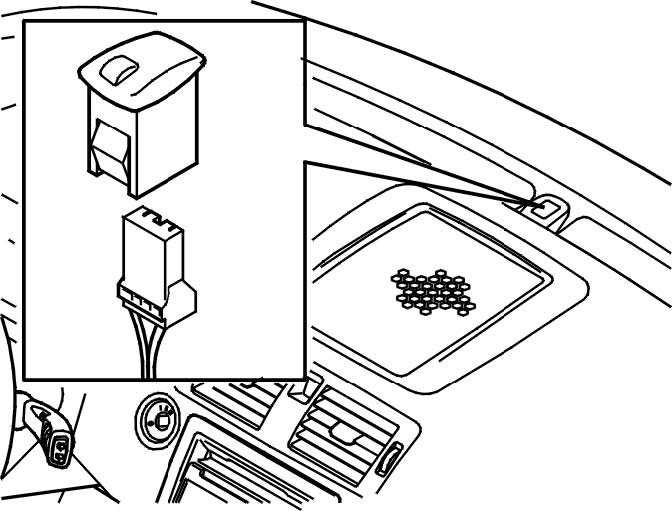

Removing the sun sensor/alarm LED

Remove:
- the sun sensor/alarm LED. Use a weather strip tool
- the connector, x 1.





Installation

Installing the sun sensor/alarm LED

Install:
- the connector, x 1
- the sun sensor/alarm LED.
