Initial Inspection and Diagnostic Overview

Supplementary Restraint System (SRS), Inspection

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Inspecting the SRS (supplemental restraint system)

NOTE: Check that the SRS indicator lamp is not defective by turning the key to position II.





The SRS indicator lamp must light and go out after approximately 7 seconds.

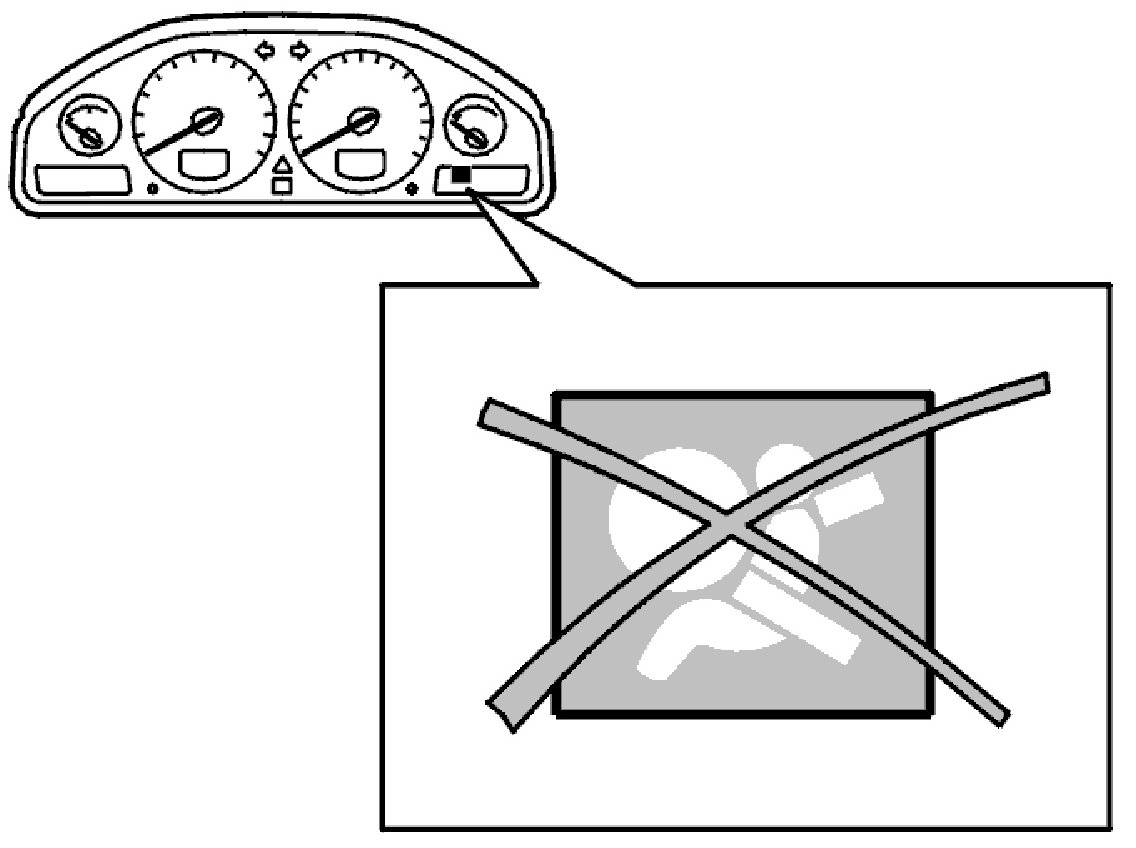

Check that the SRS indicator lamp in the combined instrument panel is not constantly lit. Fault-trace the supplementary restraint system (SRS) if the lamp is constantly lit.
