Media Player Module (MPM)

Media Player Module (MPM), Replacement

NOTE: The illustrations in this service information are used model years and/or models. Some variation may occur. However, essential information in the illustrations is always correct.

Preparatory work

Ignition off





Ignition off.

Removal

Removing the surround and panel

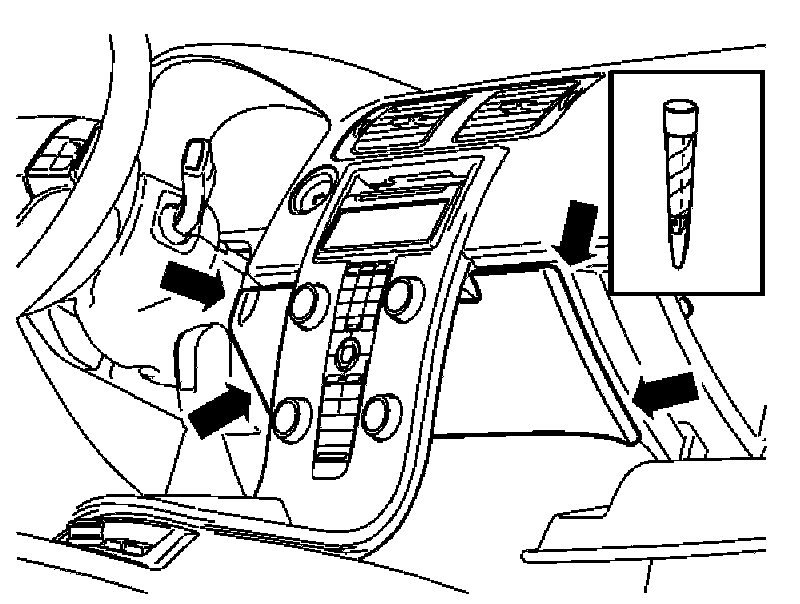

Remove the surround around the control module.





Remove the panel on the rear side of the center console.

Removing the Infotainment Control Module (ICM)

Remove:

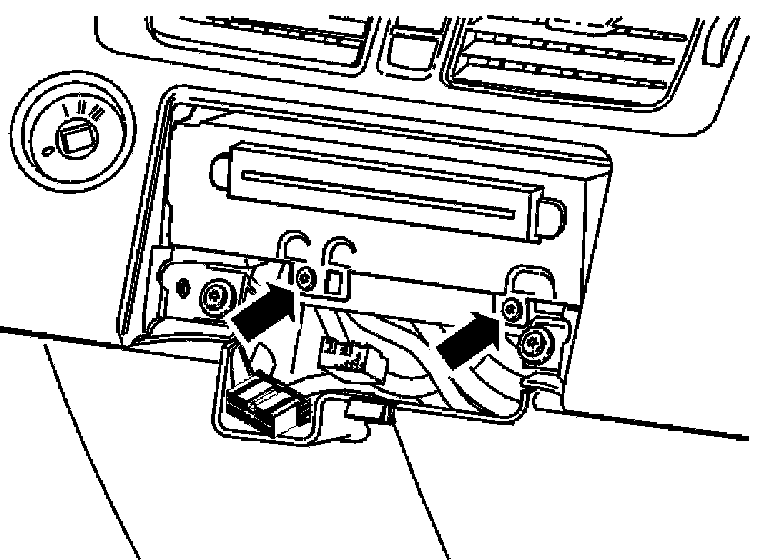

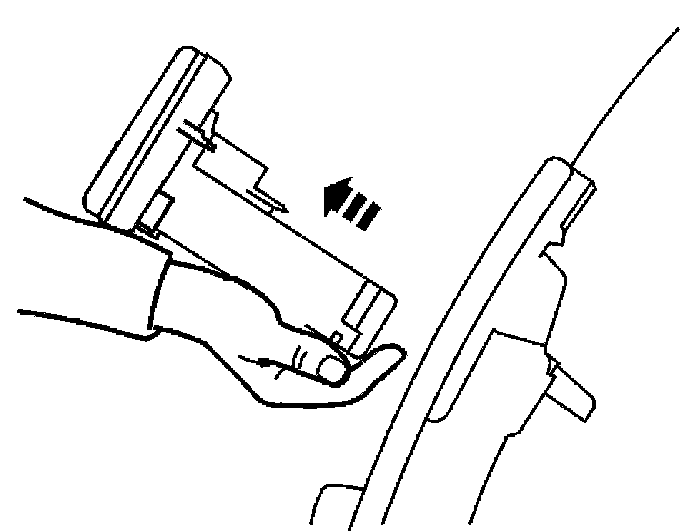

- the control module by pressing it out from behind
- the connectors.

Removing the Media Player Module (MPM)

Remove:

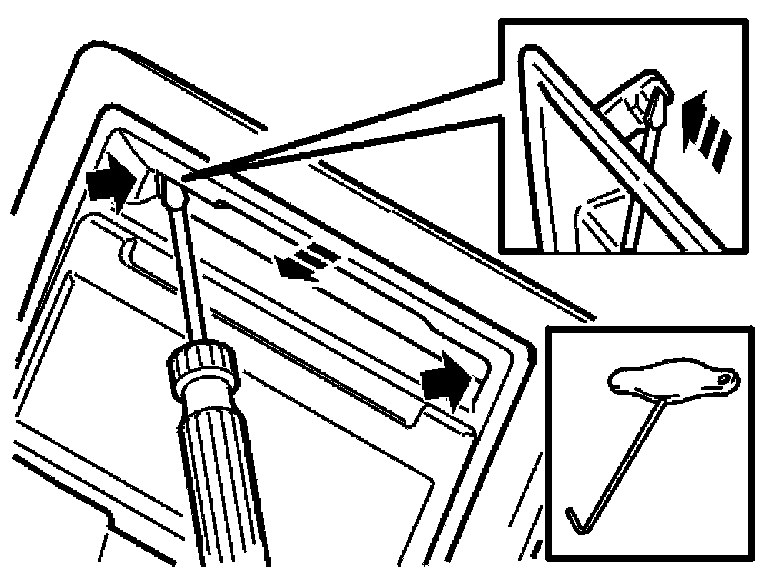

- the bolts, x2, to the control module
- the control module
- the connector.

Installation

Installing the Media Player Module (MPM)

Install:
- the connector.
- the control module
- the bolts, x2, to the control module

Installing the Infotainment Control Module (ICM)

Install:
- the connectors
- the control module.

Installing the surround and panel

Install:
- the surround
- the panel to the rear side of the center console.

Finishing

Checking the function
Check the function.
