Symptom Related Diagnostic Procedures

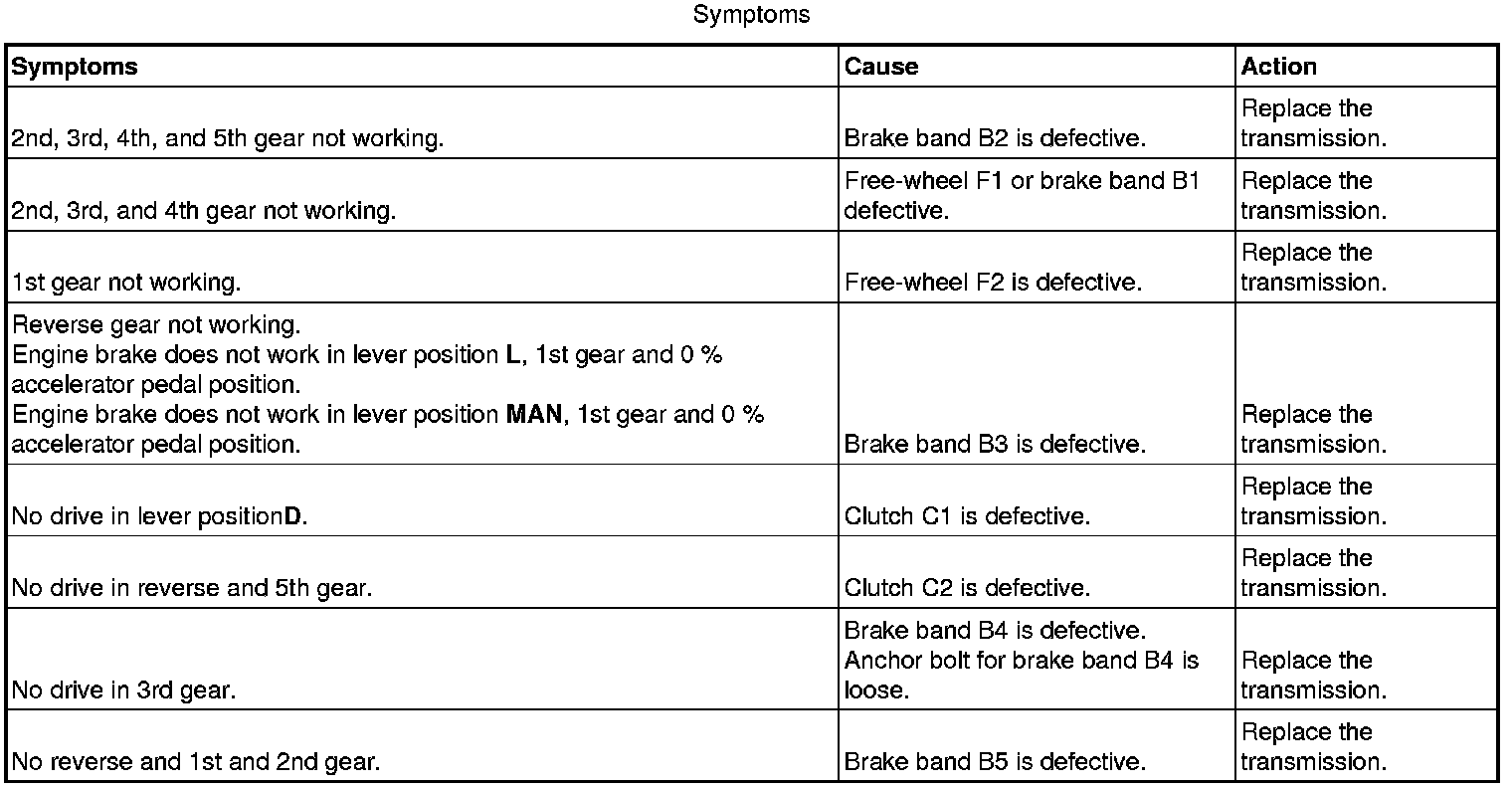

Checking the function of the transmission

Note! The information can be used when all other troubleshooting has failed and the problem symptoms still remain.

Hint: Information for checking lost drive in other gears than 1st gear and reverse:

Lever carrier, standard
- D = 1st gear.
- L + Winter mode = 2nd gear.
- D + Winter mode = 3rd gear.

Lever carrier, Geartronic (MAN)
- Manual gear position = 3rd gear.





Other information
- Component/function, AW50/51 AWD, AW55-50/51SN Component/Function

-------------------------------------------------
