Oxygen Sensor: Description and Operation

Heated Oxygen Sensors (HO2S)

There are two heated oxygen sensors (HO2S), front and rear.

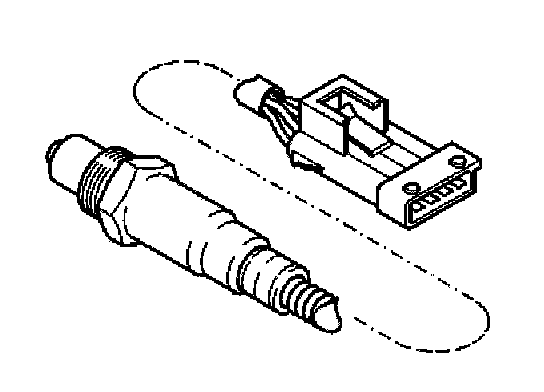

Front heated oxygen sensor (HO2S)

CAUTION: The air lines for the heated oxygen sensors (HO2S) must not be trapped or damaged in any way. The connectors for the heated oxygen sensors (HO2S) must not be greased under any circumstances. The oil in the grease would disrupt the reference air and the function of the heated oxygen sensors (HO2S).







The front heated oxygen sensor (HO2S) is used to provide the engine control module (ECM) with information about the remaining oxygen content of the exhaust gases in front of the three-way catalytic converter (TWC). This is so that the Engine Control Module (ECM) can continually check the combustion so that lambda=1. lambda=1 is the ideal fuel-air ratio, with 14.7 kg air per 1 kg fuel.

The heated oxygen sensor (HO2S) uses current control and its signal characteristic is linear. With a linear signal characteristic, the amplitude of the signal curve is low when changing the oxygen content in the exhaust gases. The probe consists of a preheating element (see "Pre-heating heated oxygen sensors (HO2S)") and the actual lambda sensor. The lambda sensor is an oxygen sensitive ceramic body consisting of zirconium oxide. The control module supplies power to the ceramic body, which reacts to the oxygen content of the exhaust gases. This in turn affects the signal to the engine control module (ECM). In order to determine the oxygen content in the exhaust pipe, the heated oxygen sensor (HO2S) needs reference air from the surrounding air. This reference air reaches the heated oxygen sensor (HO2S) via the air lines.

CAUTION: The air lines for the heated oxygen sensors (HO2S) must not be trapped or damaged in any way. The connectors for the heated oxygen sensors (HO2S) must not be greased under any circumstances. The oil in the grease would disrupt the reference air and the function of the heated oxygen sensors (HO2S).

The engine control module (ECM) can diagnose the heated oxygen sensor (HO2S). For more information, See, Heated oxygen sensor (HO2S) diagnostic.

Vehicle Information and Diagnostics Application (VIDA) can be used to read off the calculated lambda value from the heated oxygen sensor (HO2S).

Rear Heated Oxygen Sensor (HO2S)






CAUTION: The air lines for the heated oxygen sensors (HO2S) must not be trapped or damaged in any way. The connectors for the heated oxygen sensors (HO2S) must not be greased under any circumstances. The oil in the grease would disrupt the reference air and the function of the heated oxygen sensors (HO2S).

The rear heated oxygen sensor (HO2S) is used to provide the Engine Control Module (ECM) with information about the remaining oxygen content of the exhaust gases behind the three-way catalytic converter (TWC). This information is used by the Engine Control Module (ECM) to check the function of the three-way catalytic converter (TWC). This check is carried out when the conditions for the catalytic converter diagnostics have been met. The rear heated oxygen sensor (HO2S) has no direct effect on regulation of the fuel/air mixture. However the Engine Control Module (ECM) uses the signal to optimize the signal from the front heated oxygen sensor (HO2S). For more information, See, Three-way catalytic converter (TWC) diagnostics.

The heated oxygen sensor (HO2S) uses voltage control. The signal characteristic is binary. With a binary signal characteristic, the amplitude of the signal curve changes considerably when changing the oxygen content in the exhaust gases. Otherwise its components and function are the same as the front heated oxygen sensor (HO2S).

CAUTION: The air lines for the heated oxygen sensors (HO2S) must not be trapped or damaged in any way. The connectors for the heated oxygen sensors (HO2S) must not be greased under any circumstances. The oil in the grease would disrupt the reference air and the function of the heated oxygen sensors (HO2S).

The engine control module (ECM) can diagnose the rear heated oxygen sensor (HO2S). The signal can be read using Vehicle Information and Diagnostics Application (VIDA).

Preheating of the heated oxygen sensors (HO2S)
The heated oxygen sensor (HO2S) only functions above a certain temperature, approximately 300 degree C. The normal operating temperature is between 300 - 900 degree C. The heated oxygen sensors (HO2S) are electrically pre-heated so that operating temperature is rapidly reached. This also ensures that the heated oxygen sensors (HO2S) maintain normal operating temperature and to prevent condensation which could damage the heated oxygen sensor (HO2S).

The heater element in the probe consists of a positive temperature coefficient (PTC) resistor. The system relay supplies the heater element with voltage. The element is grounded in the engine control module (ECM). When the control module grounds the connection a current flows through the PTC resistor. When the heated oxygen sensor (HO2S) is cold, the resistance in the PTC resistor is low and a large current will flow through the circuit. The current from the Engine Control Module (ECM) is pulsed at first to prevent condensation damage to the heated oxygen sensor (HO2S). Depending on the temperature, allowances are made for factors such as the dew point. As the temperature in the PTC resistor rises, the resistance rises, the current falls and switches in stages to a constant current. The preheating time for the front heated oxygen sensor (HO2S) is short, approximately 20 seconds.

Probe preheating begins as soon as the engine is started. The heater element heats the heated oxygen sensors (HO2S) to approximately 350 degree C. The probes maintain this as a minimum temperature.

The engine control module (ECM) can diagnose the heater element.
