Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

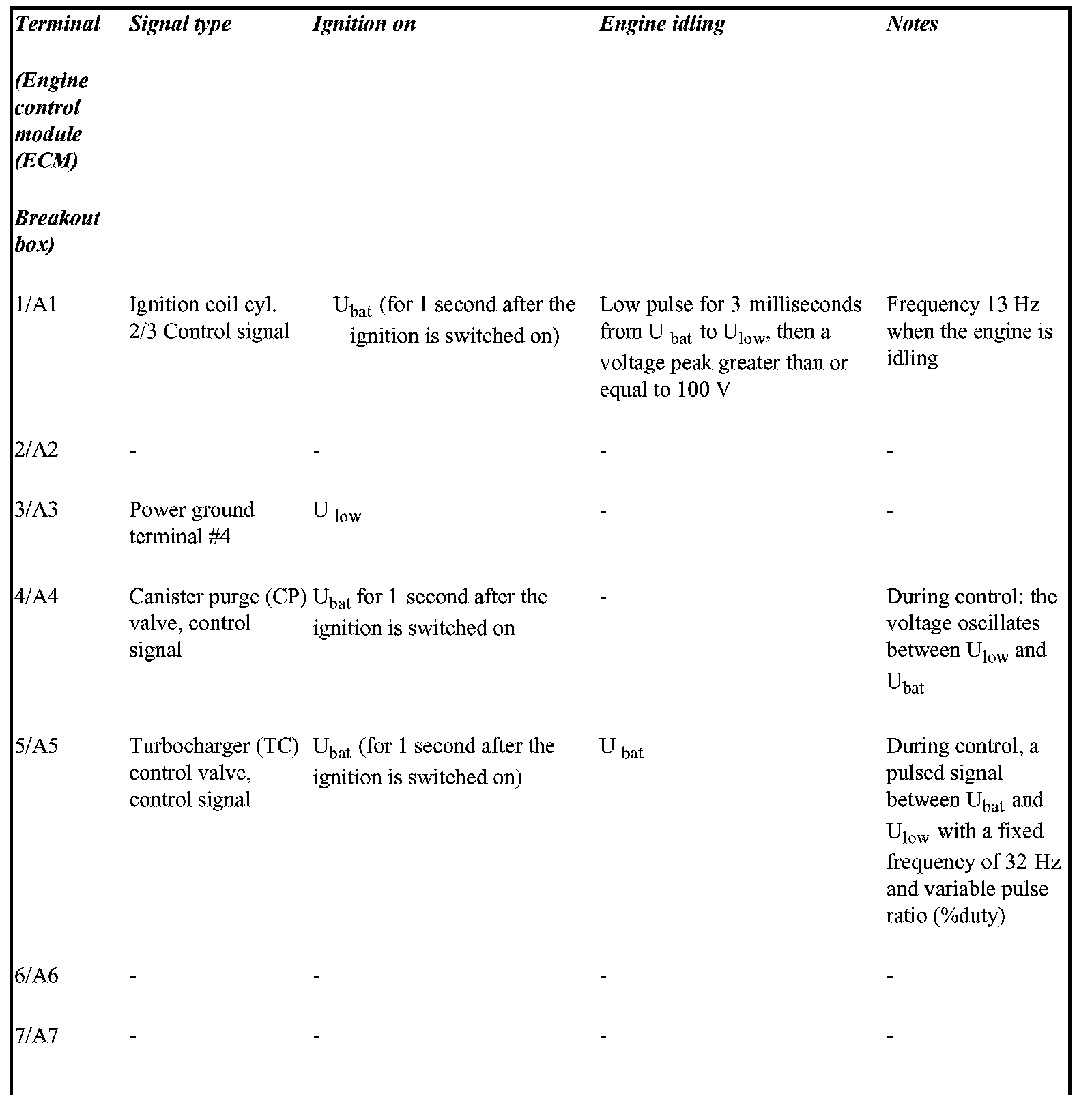

1/A1 - 7/A7:

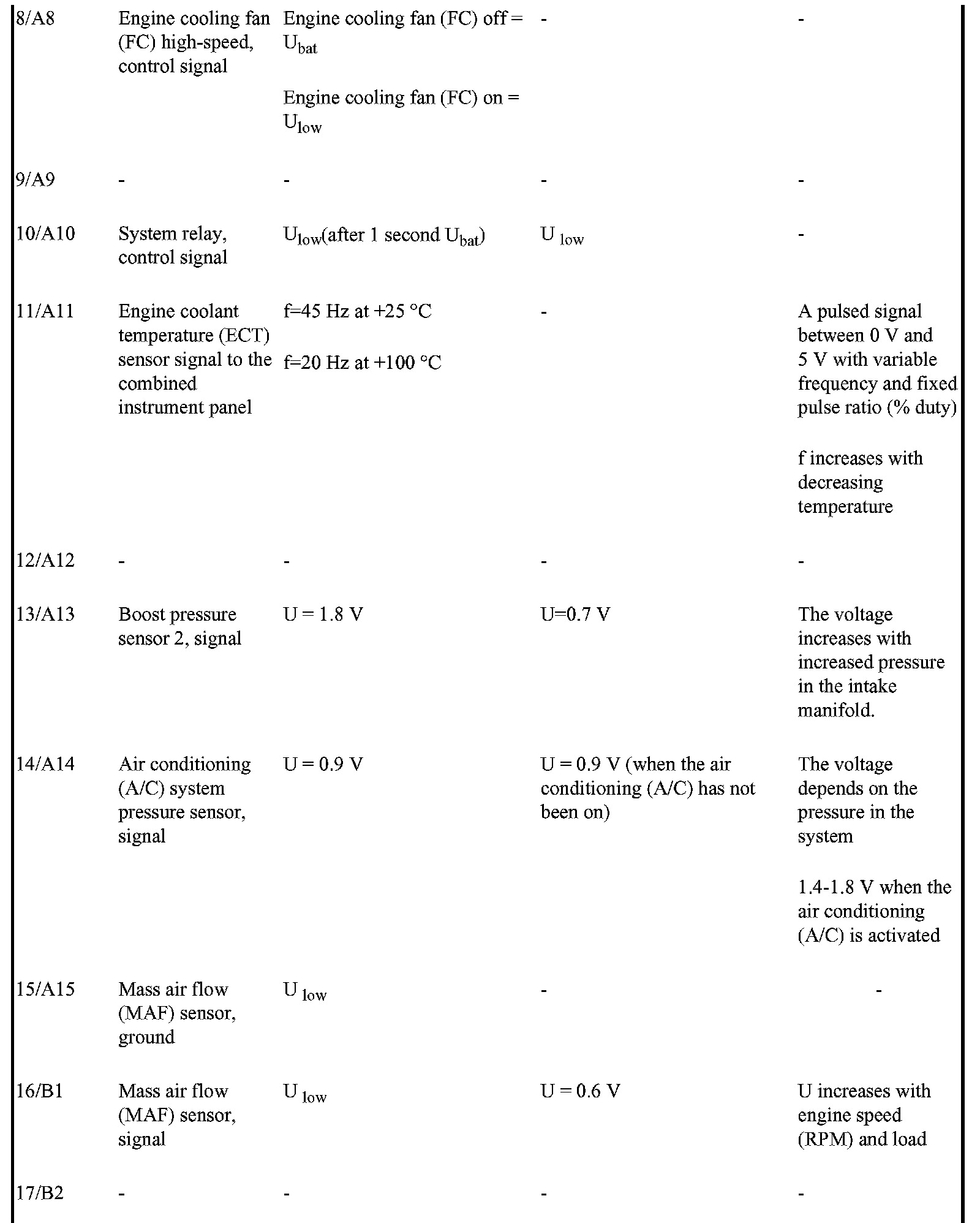

8/A8 - 17/B2:

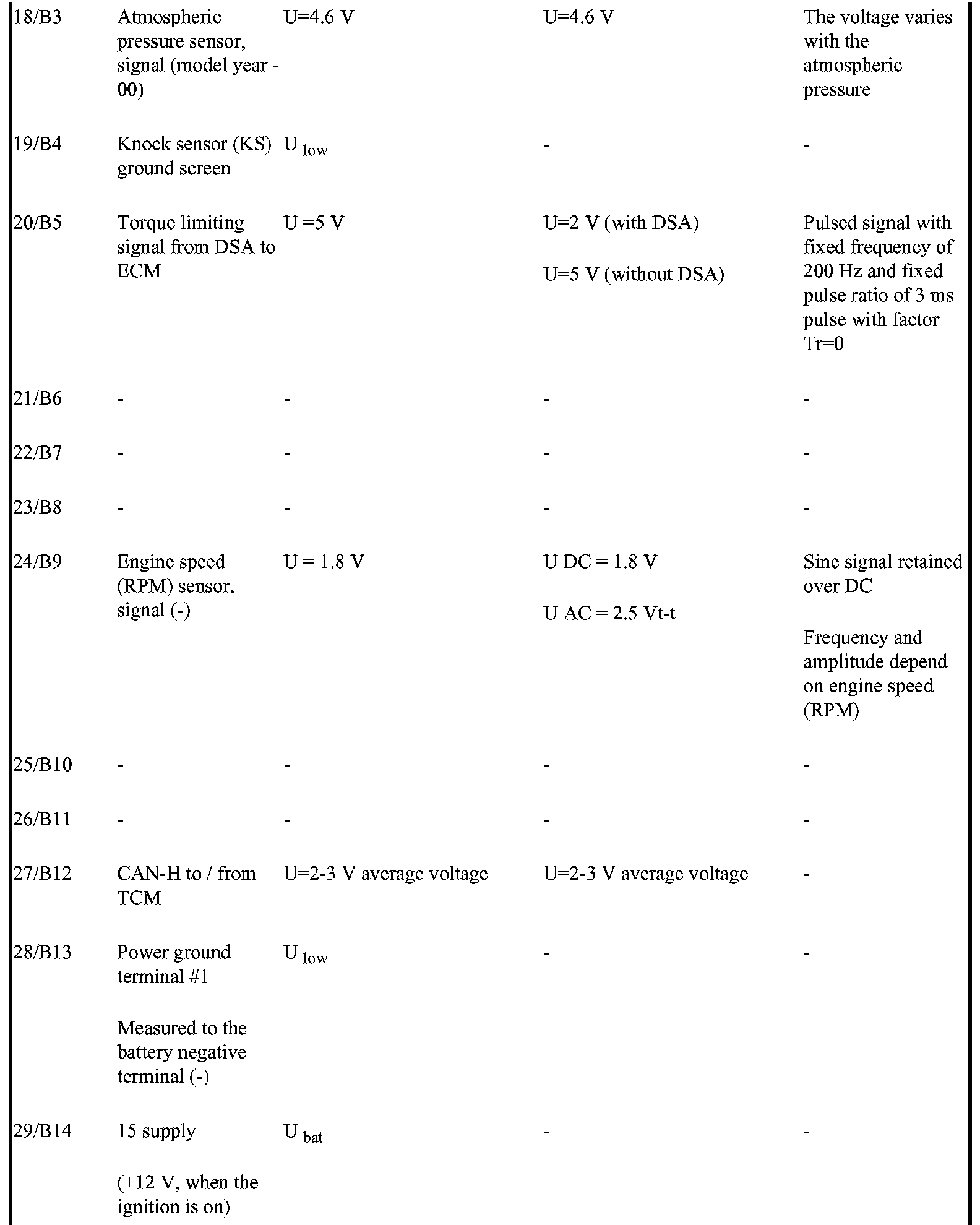

18/B3 - 29/B14:

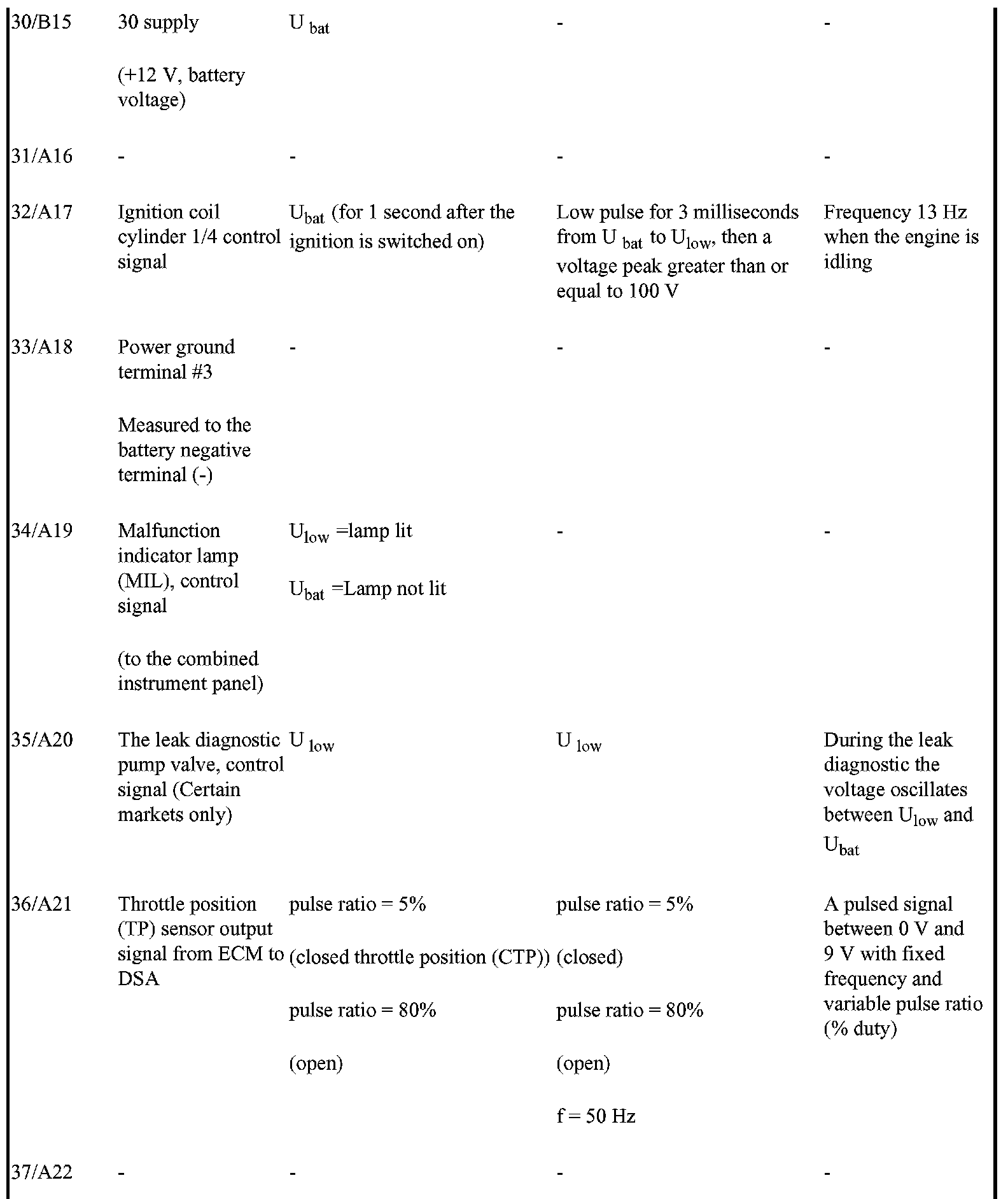

30/B15 - 37/A22:

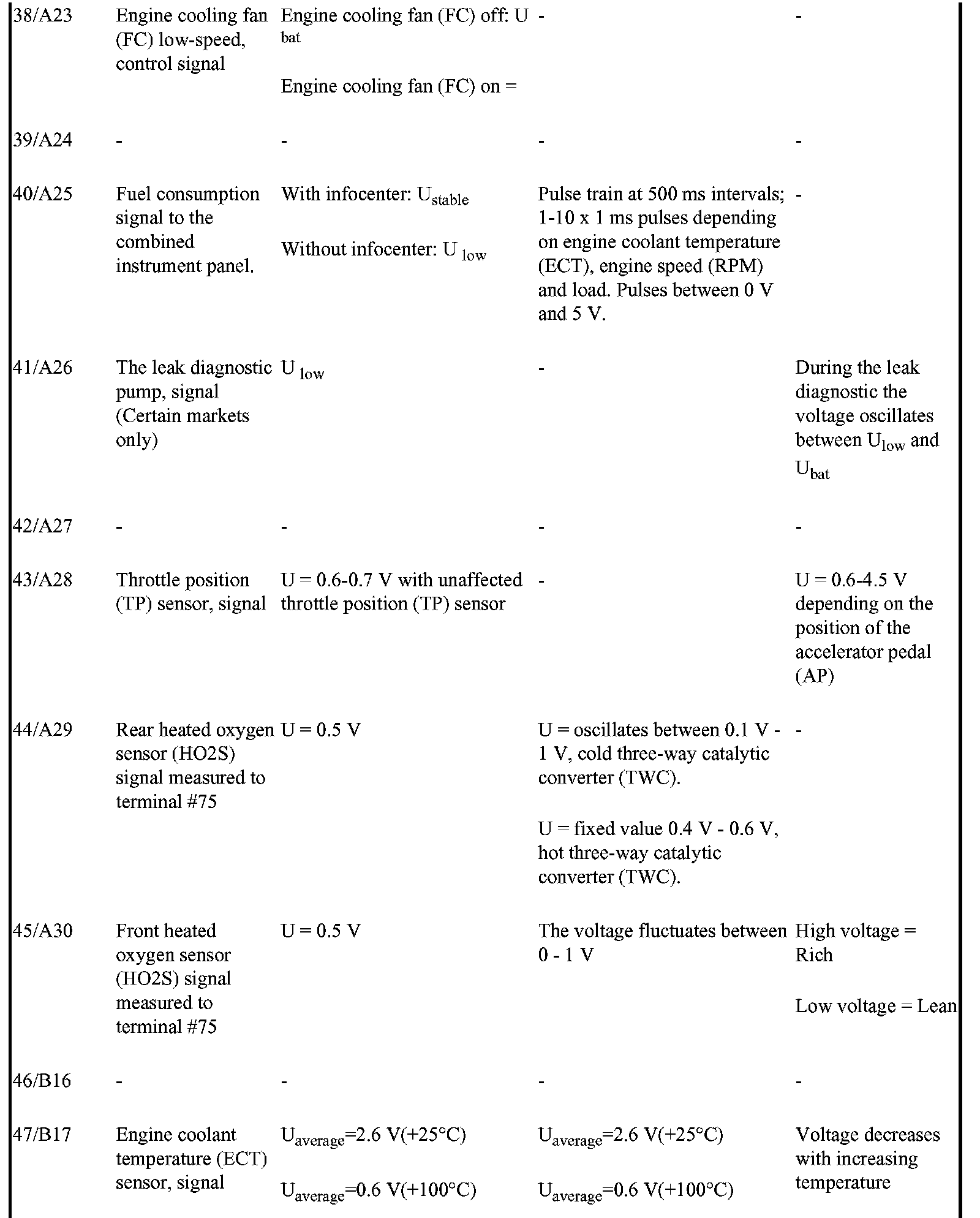

38/A23 - 47/B17:

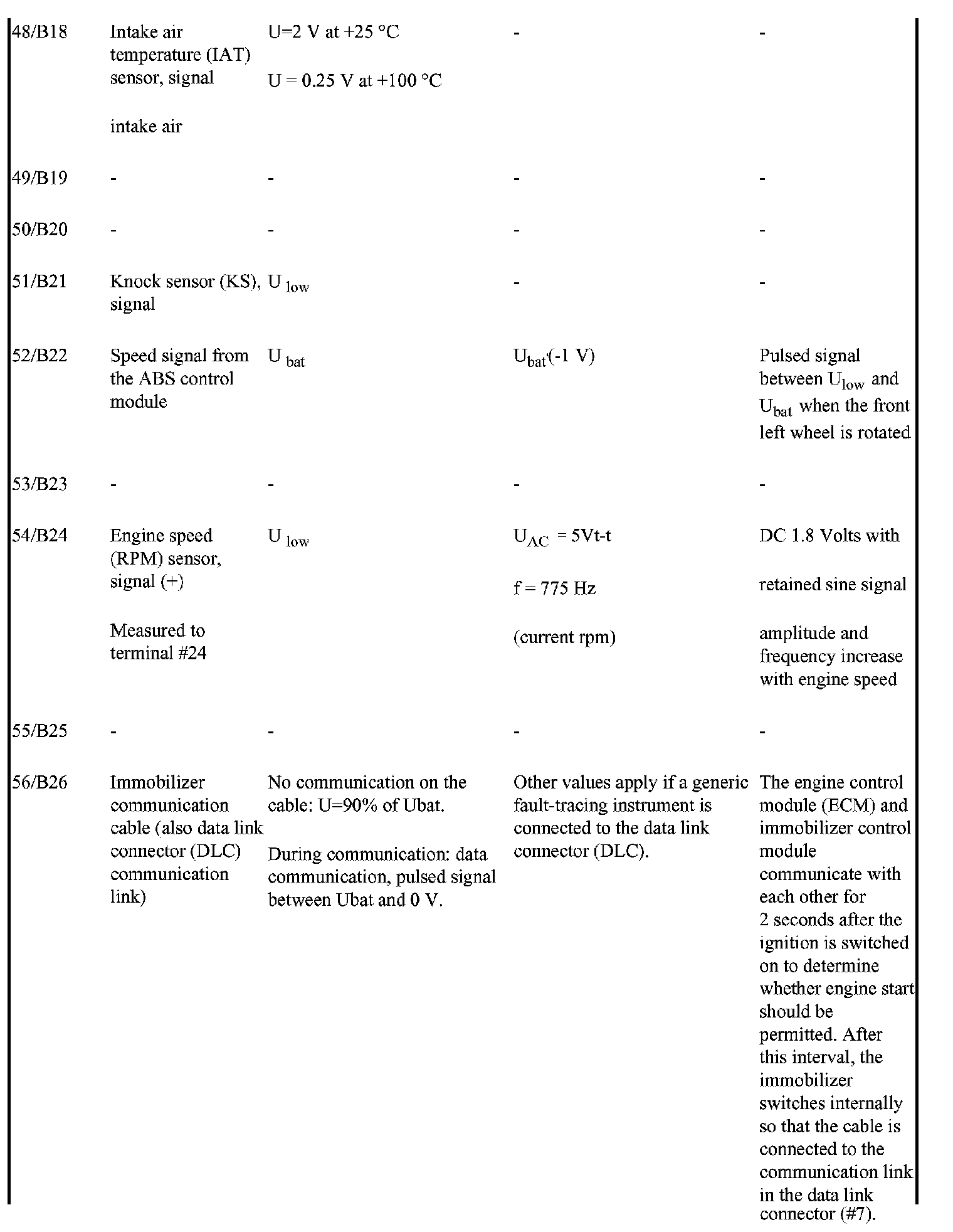

48/B18 - 56/B26:

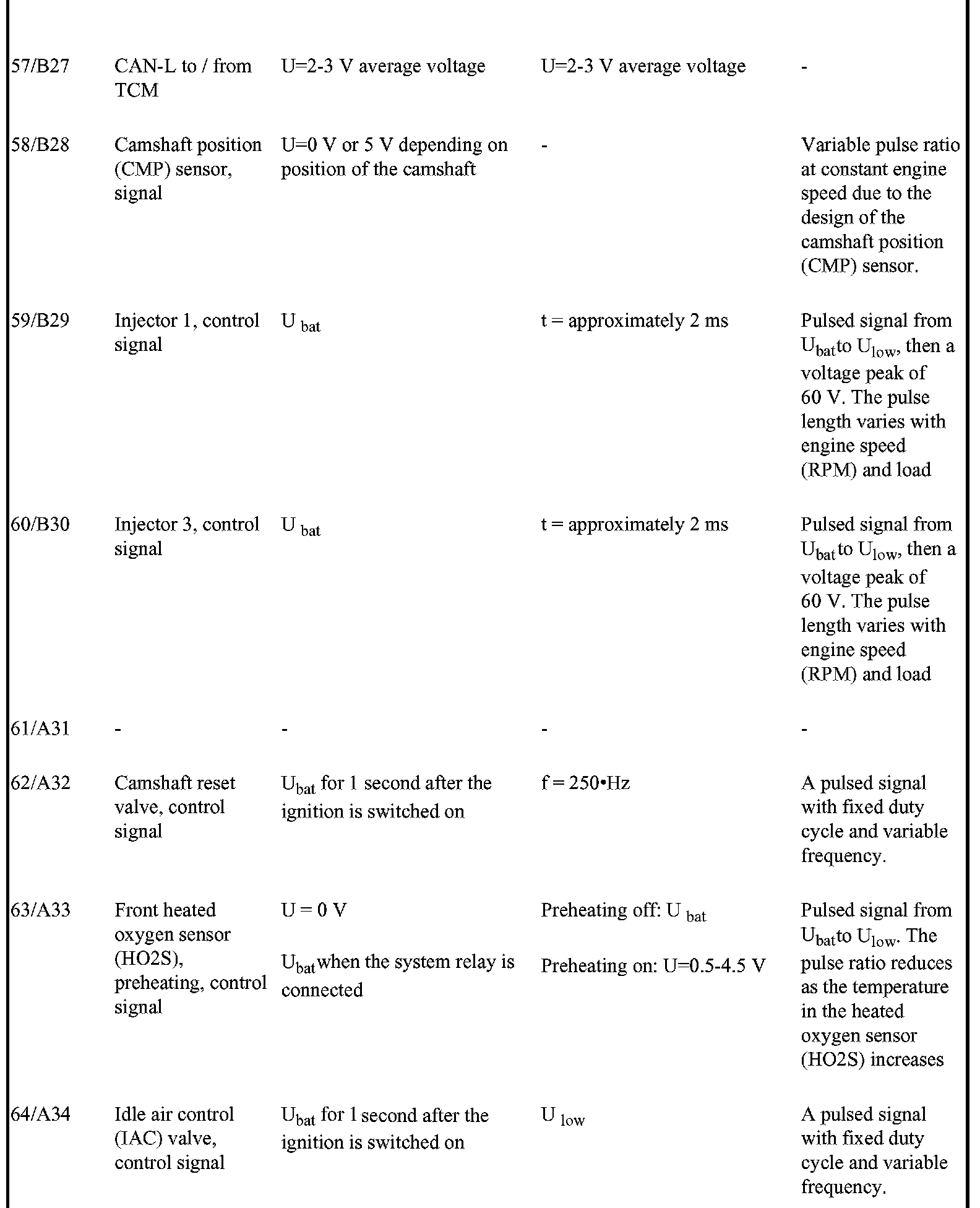

57/B27 - 64/A34:

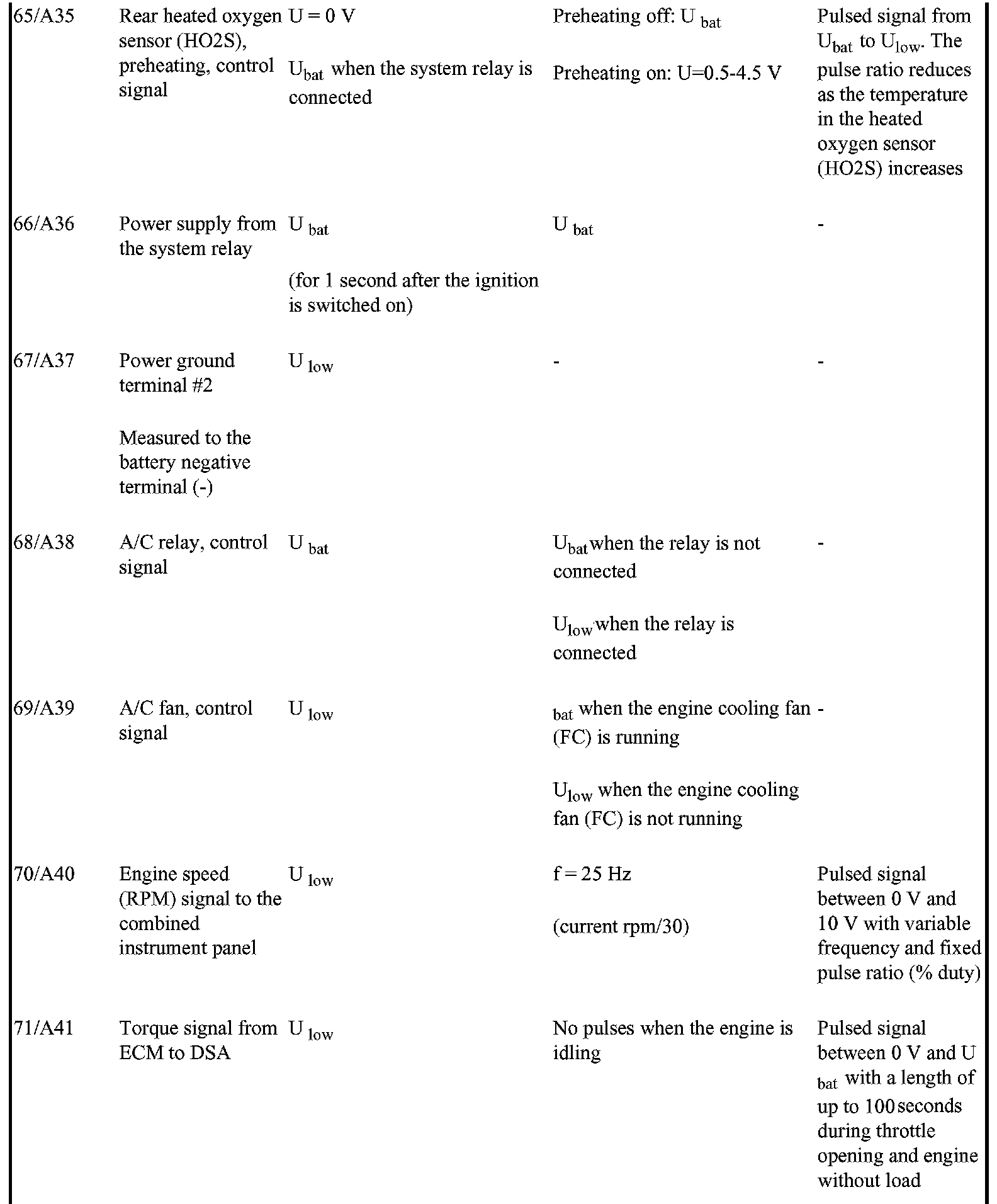

65/A35 - 71/A41:
72/A42 - 84/B39:

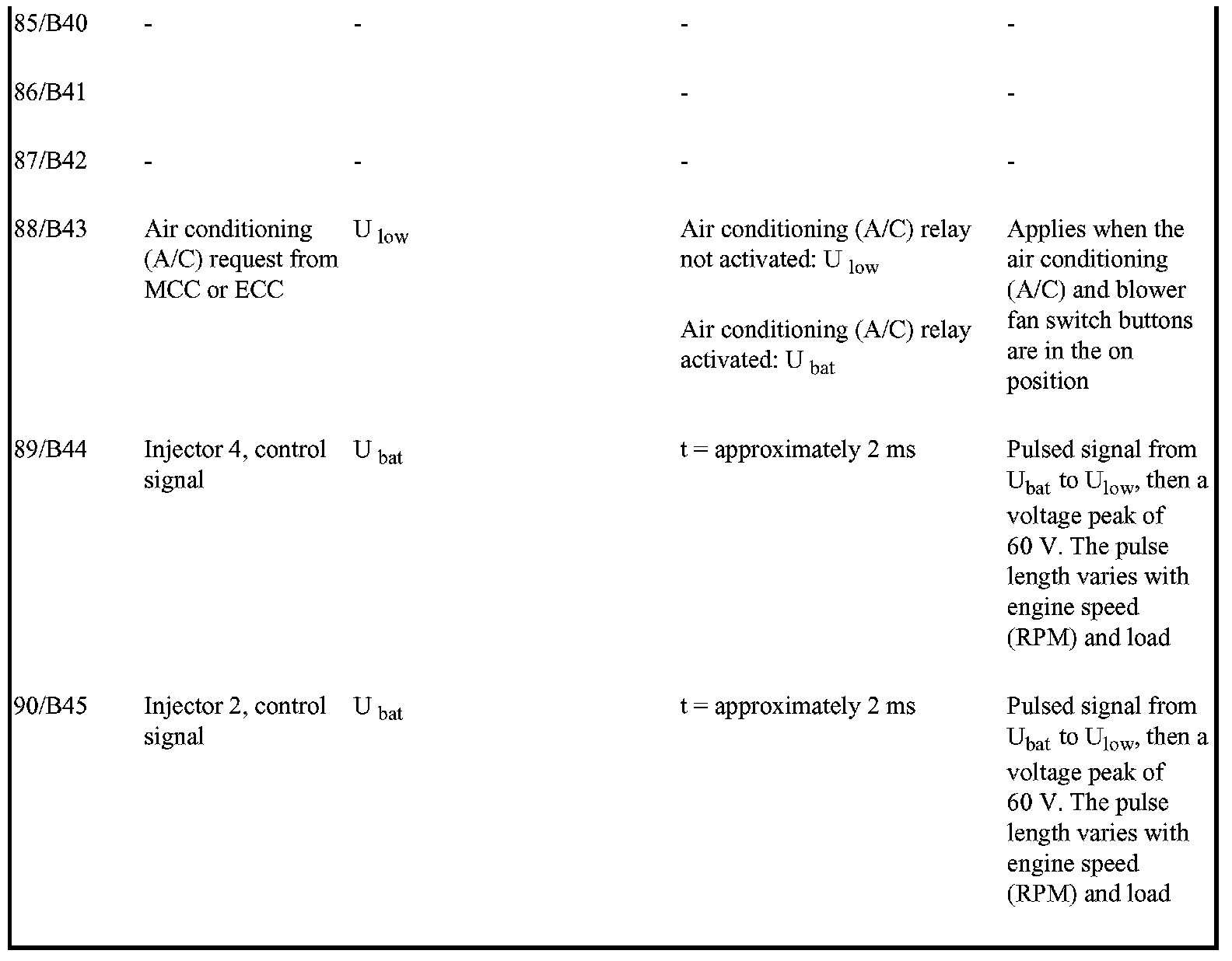

85/B40 - 90/B45:
