Home >> Volvo >> 2004 >> S40 L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Central Electronic Module (CEM) F43-F52

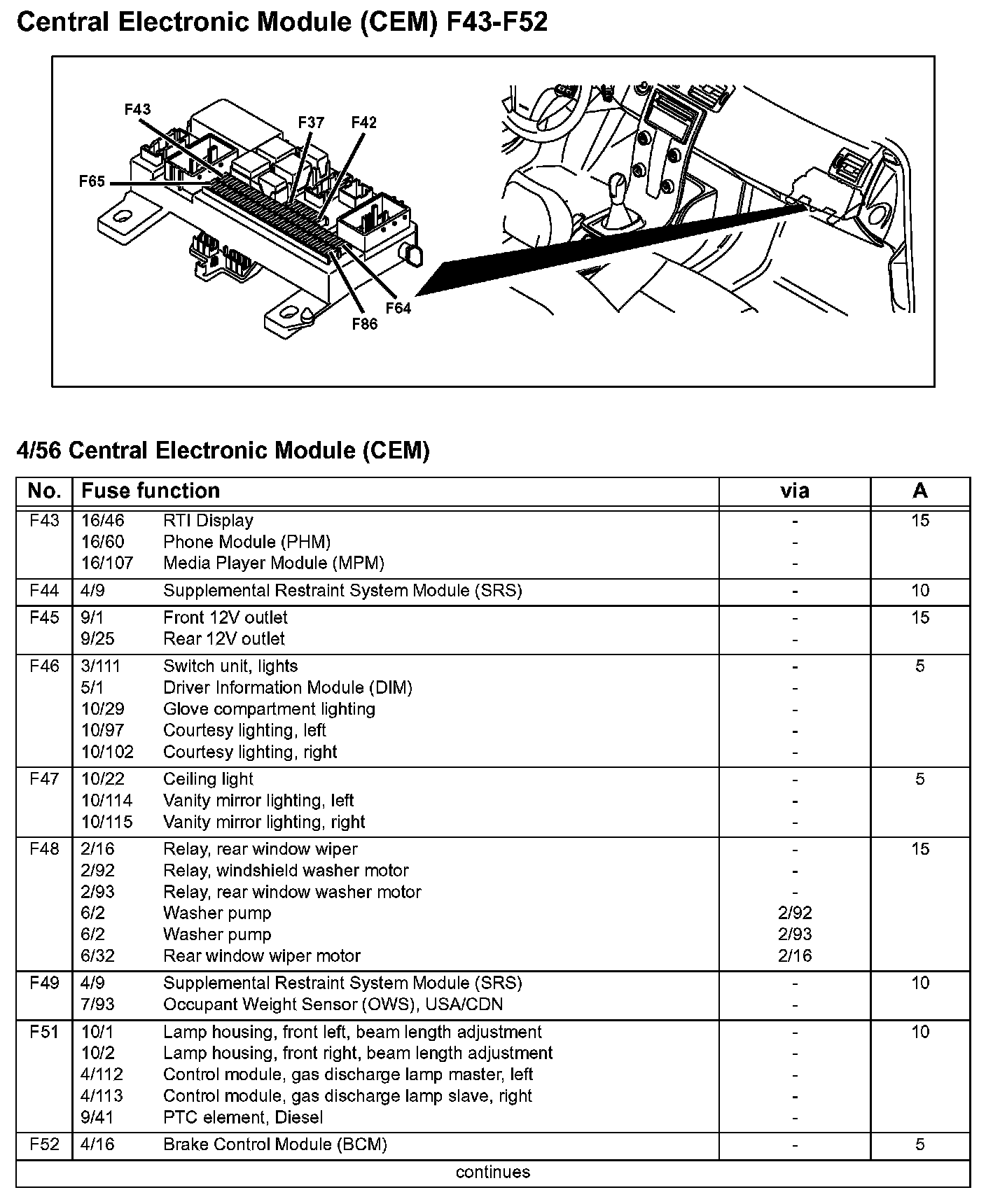

Central Electronic Module (CEM) F43-F52

Central Electronic Module (CEM) F43-F52:
