Manual Beam Length Adjustment

Manual Beam Length Adjustment

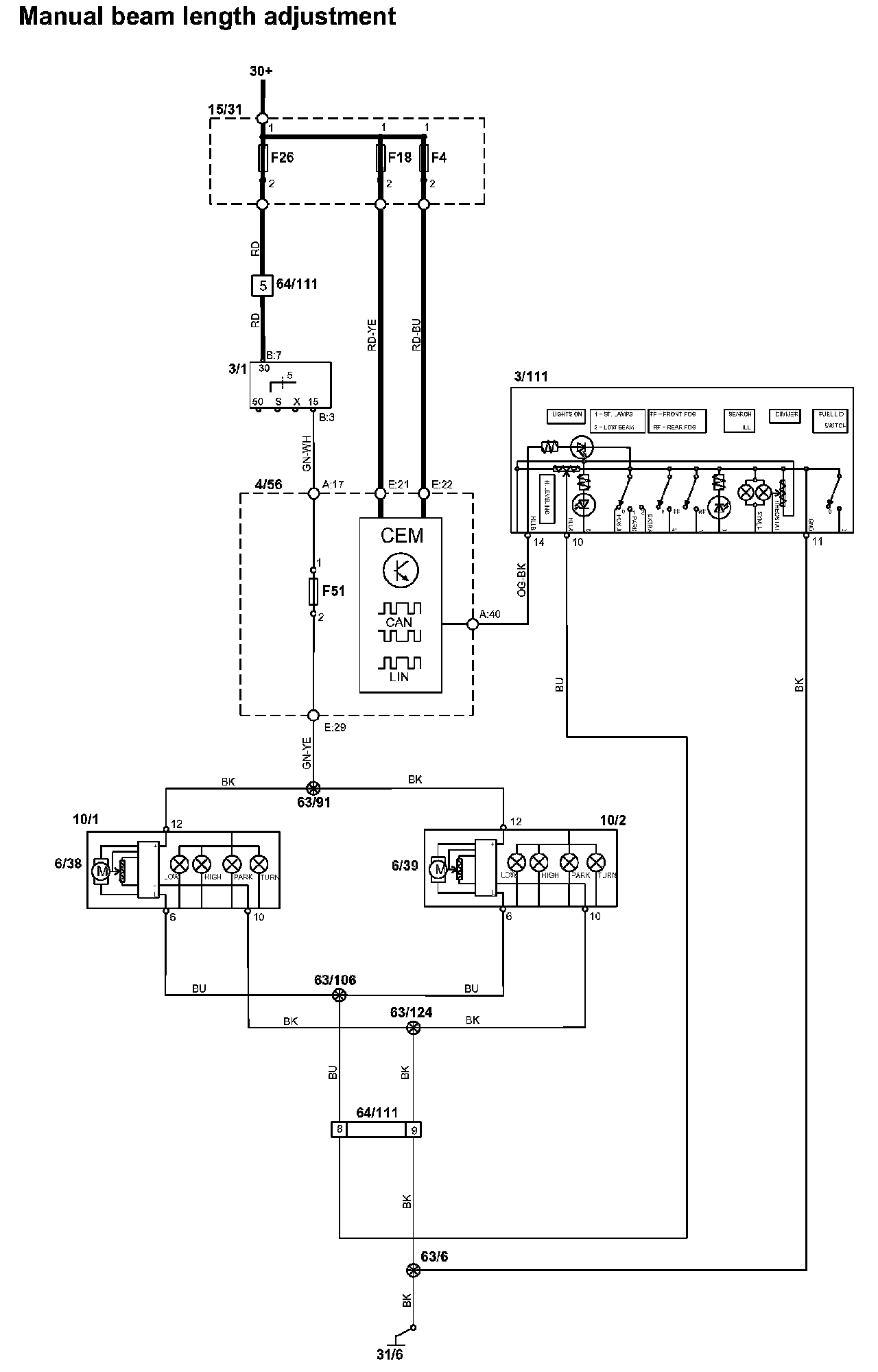

Manual Beam Length Adjustment:

Diagram Legend: Diagram Legend

Wire Color Code Identification And Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
