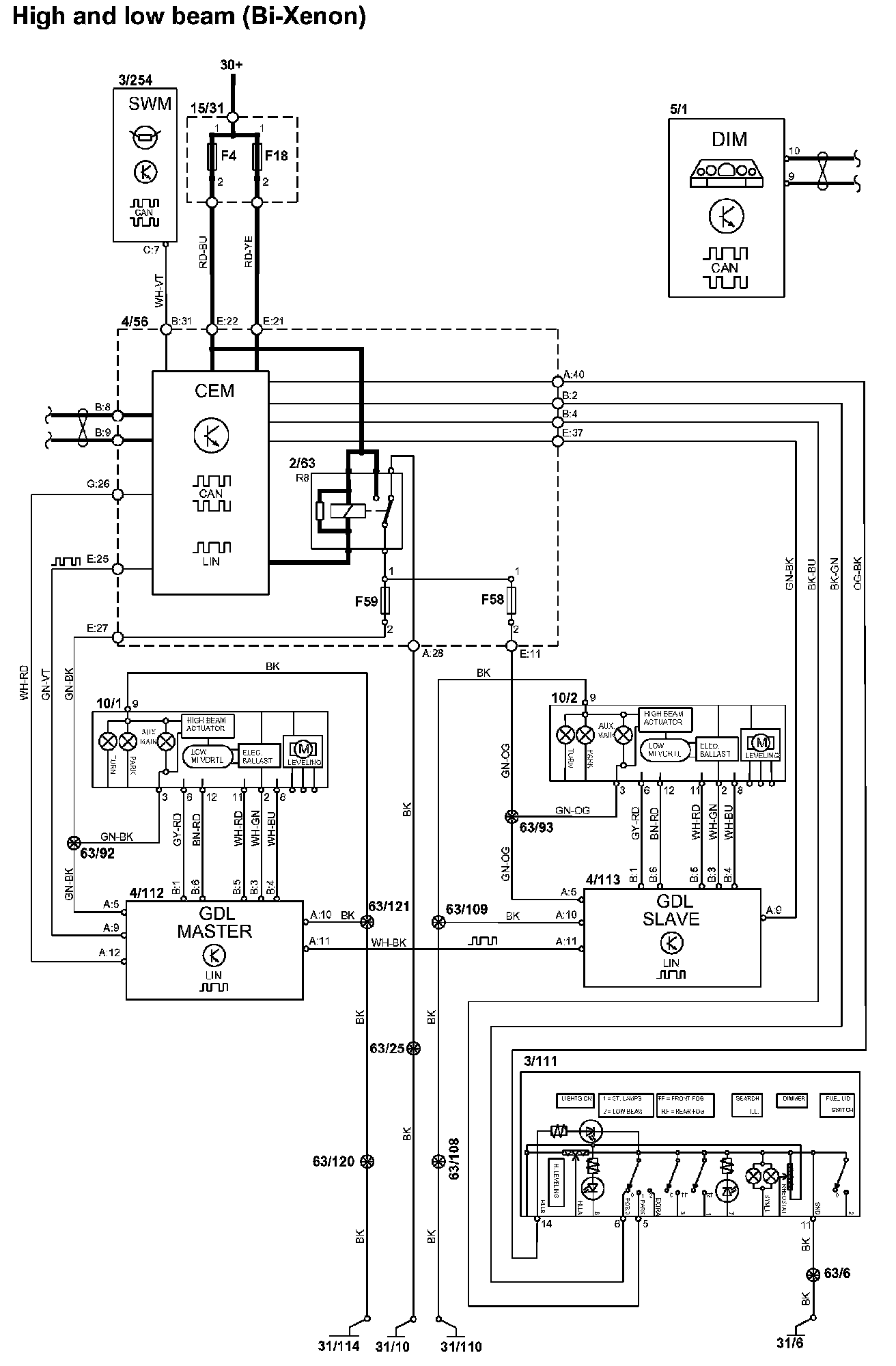

High And Low Beam (Bi-Xenon)

High And Low Beam (Bi-Xenon)

High And Low Beam (Bi-Xenon):

Diagram Legend: Diagram Legend

Wire Color Code Identification And Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
