Climate Control System

Climate Control System

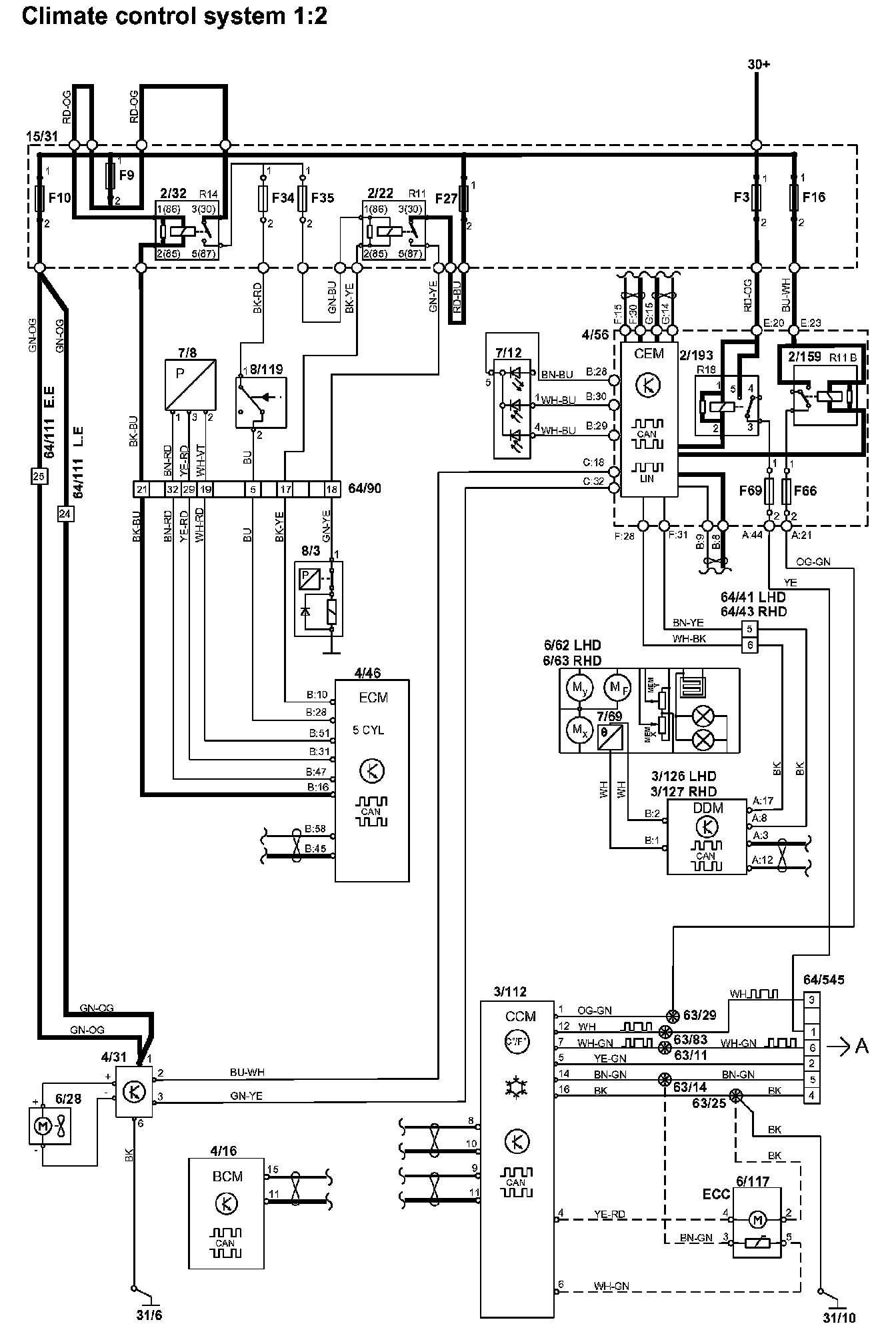

Climate Control System, Part 1:

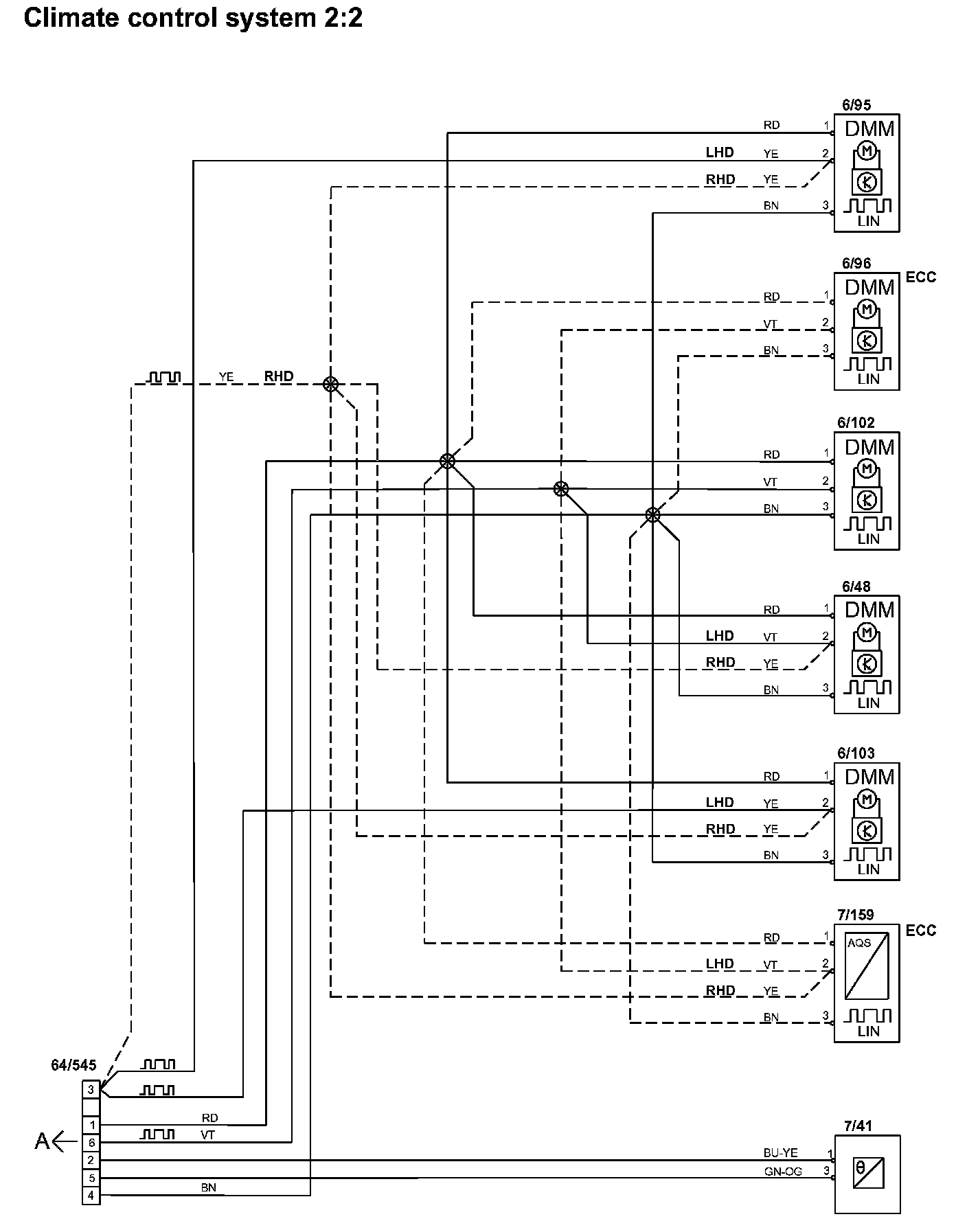

Climate Control System, Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification And Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
