Interior - Door Panel Cleaning Procedure

S40 (04-)/ V50 2005-

Section
8

Group
85

No.
0038

Year
2004

Month
10

Cleaning of door panel

Background:

This Service Bulletin describes how to clean the top part of the door panel in case of spots.

Competence requirement
Volvo Level 1 Technician

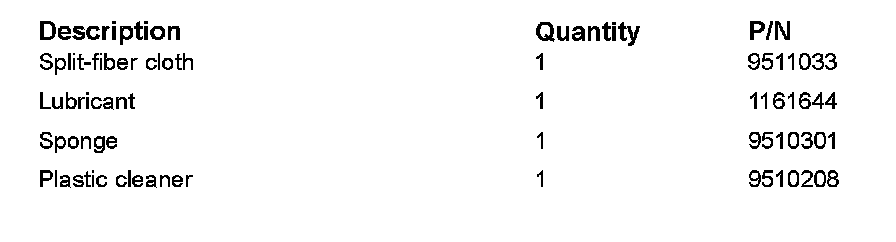

Material
Door panel, cleaning

Door panel, cleaning 1





First clean the door panel with a dry split4iber cloth.

Door panel, cleaning, continued 2





Clean the door panel with plastic cleaner and a clean cloth.

Let the panel dry.





Spray a thin layer of lubricant on the door panel. 3





Smooth out the lubricant with a sponge. 4

Let the door panel dry before repeating the treatment.

Repeat the treatment three times. Go to step 3. 5





WARRANTY STATEMENT:
Claims may be submitted under the New Car Warranty when there is a documented customer complaint, using claim type 01.
