Description Of Parameters

Description of parameters

Parameters, status

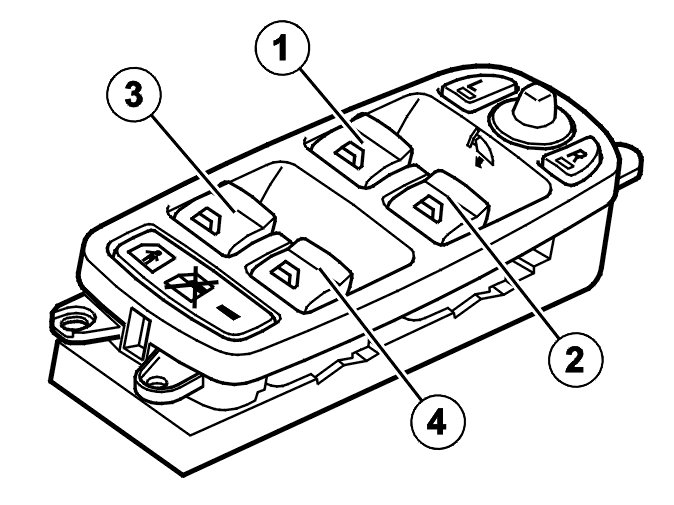

Note! The illustration shows the control panel for the driver door in a left-hand drive car. The control panel and numbering in a right-hand drive car is the mirror image of left-hand drive.




1. Window button for operating the window in the driver's door
2. Window button for operating the window in the passenger door
3. Window button for operating the window in the rear door on the driver's side
4. Window button for operating the window in the rear door on the passenger side.

Driver's side front, window button up
Read out of whether the control module interprets that window button 1 is activated or not activated in the up direction.

Driver's side front, window button down
Read out of whether control module interprets that the window button 1 is activated or not activated in the down direction.

Passenger side front, window button up
Read out of whether the control module interprets that window button 2 is activated or not activated in the up direction.

Passenger side front, window button down
Read out of whether the control module interprets that window button 2 is activated or not activated in the down direction.

Driver's side rear, window button up
Read out of whether the control module interprets that window button 3 is activated or not activated in the up direction.

Driver's side rear, window button down
Read out of whether control module interprets that the window button 3 is activated or not activated in the down direction.

Passenger side rear, window button up
Read out of whether the control module interprets that window button 4 is activated or not activated in the up direction.

Passenger side rear, window button down
Read out of whether control module interprets that the window button 4 is activated or not activated in the down direction.

Central locking switch, unlocking
Read out of whether the control module interprets that the driver's door button for central locking, unlocking, is activated or not.

Central locking switch, locking
Read out of whether the control module interprets that the driver's door button for central locking, locking, is activated or not.

Power window motor, up
Read out of whether the control module interprets that the driver's door window motor is activated or not activated in the up direction.

Power window motor, down
Read out of whether the control module interprets that the driver's door window motor is activated or not activated in the down direction.

Lock motor M1
Read out of whether the control module interprets that driver's door lock motor M1 is activated or not.
Lock motor M1 is active when locking the central locking.

Lock motor M2
Read out of whether the control module interprets that driver's door lock motor M2 is activated or not.
Lock motor M2 is active when unlocking the central locking and/or deadlocks.

Lock motor M3
Read out of whether the control module interprets that driver's door lock motor M3 is activated or not.
Lock motor M3 is active when locking the deadlocks.

Mirror motor MUD (Mirror up and down)
Read out of whether the control module interprets that driver's door mirror motor MUD (Mirror up and down) is activated or not.

Mirror motor MLR (Mirror Left and Right)
Read out of whether the control module interprets that driver's door mirror motor MLR (Mirror Left and Right) is activated or not.

Mirror motor MC (Mirror Common)
Read out of whether the control module interprets that driver's door mirror motor MC (Mirror Common) is activated or not.

Mirror motor MF (Mirror Fold)
Read out of whether the control module interprets that driver's door mirror motor MF (Mirror Fold) is activated or not.

Mirror heater
Read out of whether the control module interprets that the driver's door mirror heater is activated or not.

Door mirror lamp
Read out of whether the control module interprets that the driver's door mirror lamp is activated or not.
The key must not be in the ignition when reading off the status.

Turn signal lamps
Read out of whether the control module interprets that the driver's door turn signal lamp is activated or not.

Child-safety button
Read out of whether control module interprets that the child-safety button is activated or not.

Window initialization
Indicates whether the window in the driver's door is initialized or not.

Parameters, value

Power supply
Reading off the power supply to the control module.

Driver's door, door mirror position, X axis
Indicates the present door mirror position in the X axis.
Measurement range 0-5 V.

Driver's door, door mirror position, Y axis
Indicates the present door mirror position in the Y axis.
Measurement range 0-5 V.
