Design

Design

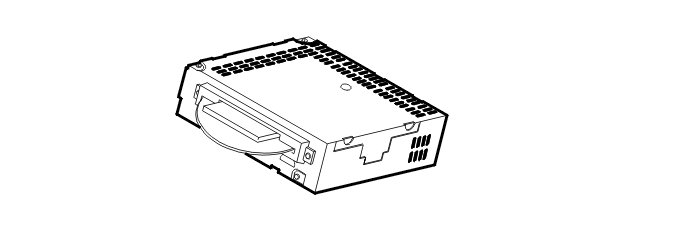

Media player module (MPM)




There are three versions of the media player module (MPM):
- CD player
- CD changer
- combined CD/MD player.
The magazine for the CD changer is integrated in the control module.
The media player module (MPM) is controlled using the buttons on the center console. The buttons for volume control and for selecting the CD track or radio station are also on the steering wheel.
The actual status is shown on the display for the infotainment control module (ICM).
All input and output signals from the control module are transmitted on the MOST network.
