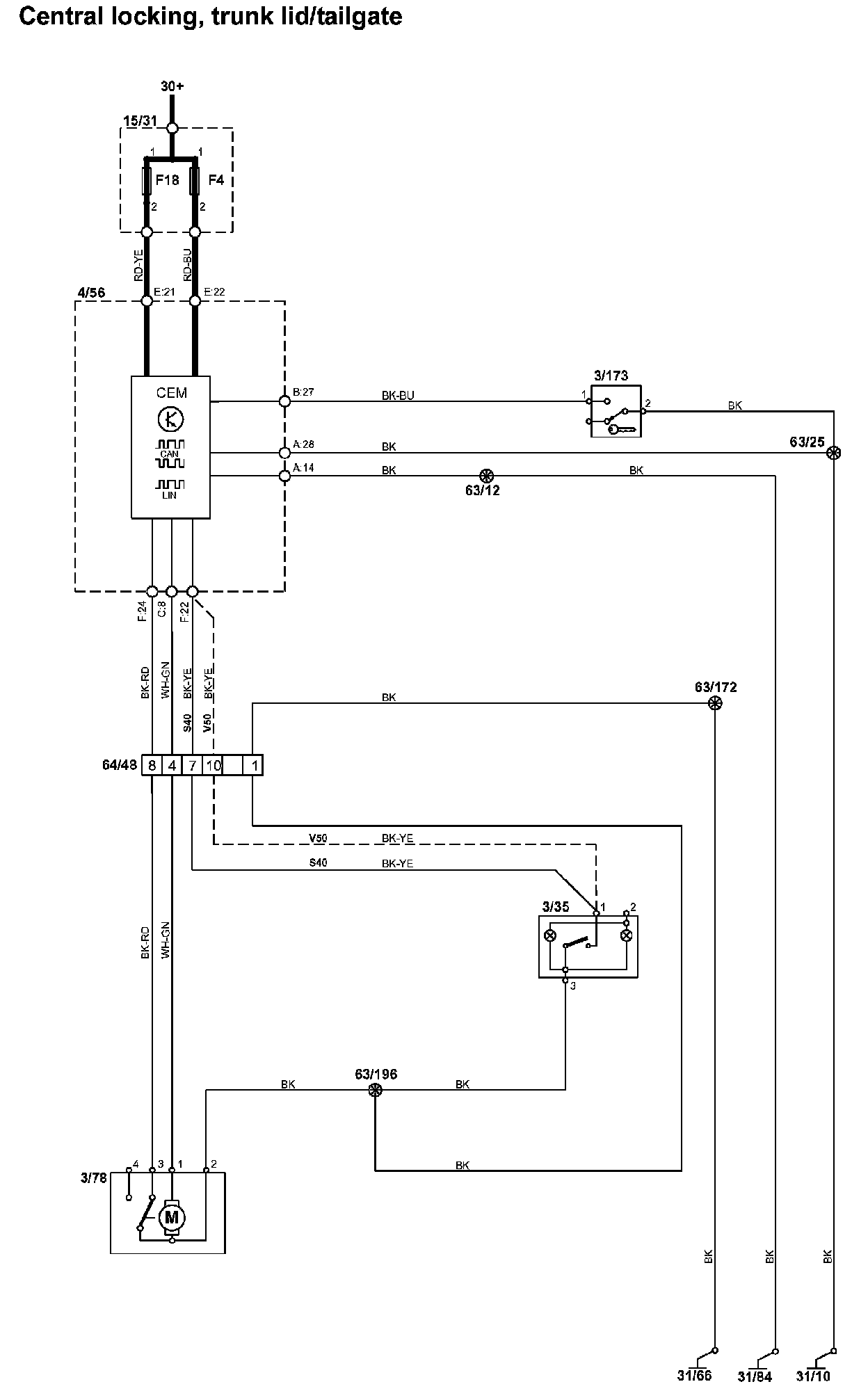

Central Locking, Trunk Lid/Tailgate

Central Locking, Trunk Lid/Tailgate

Central Locking, Trunk Lid/Tailgate:

Diagram Legend: Diagram Legend

Wire Color Code Identification And Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
