Antitheft - Immobilizer Lamp ON After Cold Start, IMMO DTC 321
Title Immobilizer warning lamp on after cold start, IMMO-DTC 321Ref No US4920.6.0 en-US
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 3669
Func Desc miscellaneous
Status Released
Status Date 02-28-2012
Issue Date 02-28-2012
Reference

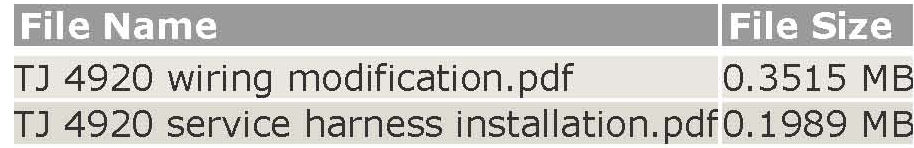

Attachment

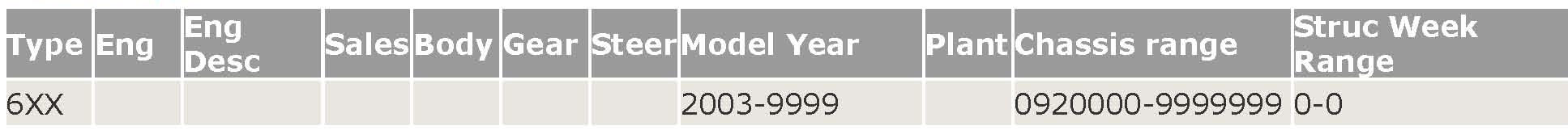

Vehicle Type

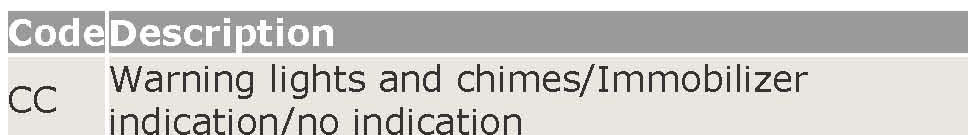

CSC Customer Symptom Codes

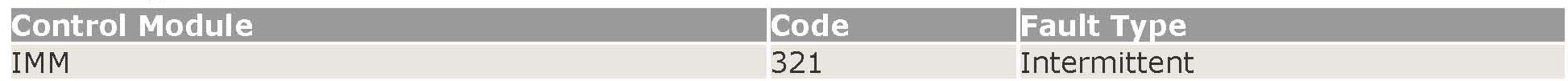

DTC Diagnostic Trouble Codes
Text
IMMO = Immobilizer control unit
If using a printed copy of this document, always check for the latest online version.
This TJ has been reopened due to market demand.
DESCRIPTION:
540/V40 cars with Gasoline engine (EM52000 ECM) may have the Immobilizer warning lamp on after a (successful) cold start. After a restart, or after switching ignition off and on, the warning lamp is off. As long as the warning lamp is on (engine still running), IMMO-DTC 321 is stored. This DTC indicates a communication problem between IMMO-ECU and ECM. If the warning lamp is off, the IMMO-DTC is self erased, and no IMMO-DTC is stored anymore. Also, the ECM does not have a DTC stored. This problem is caused by an intermittent interruption in the IG1 contact of the starter switch.
PRODUCT MODIFICATION:
Improving the starter switch was not feasible anymore. Therefore an easy to install.
Service solution has been made available.
SERVICE:

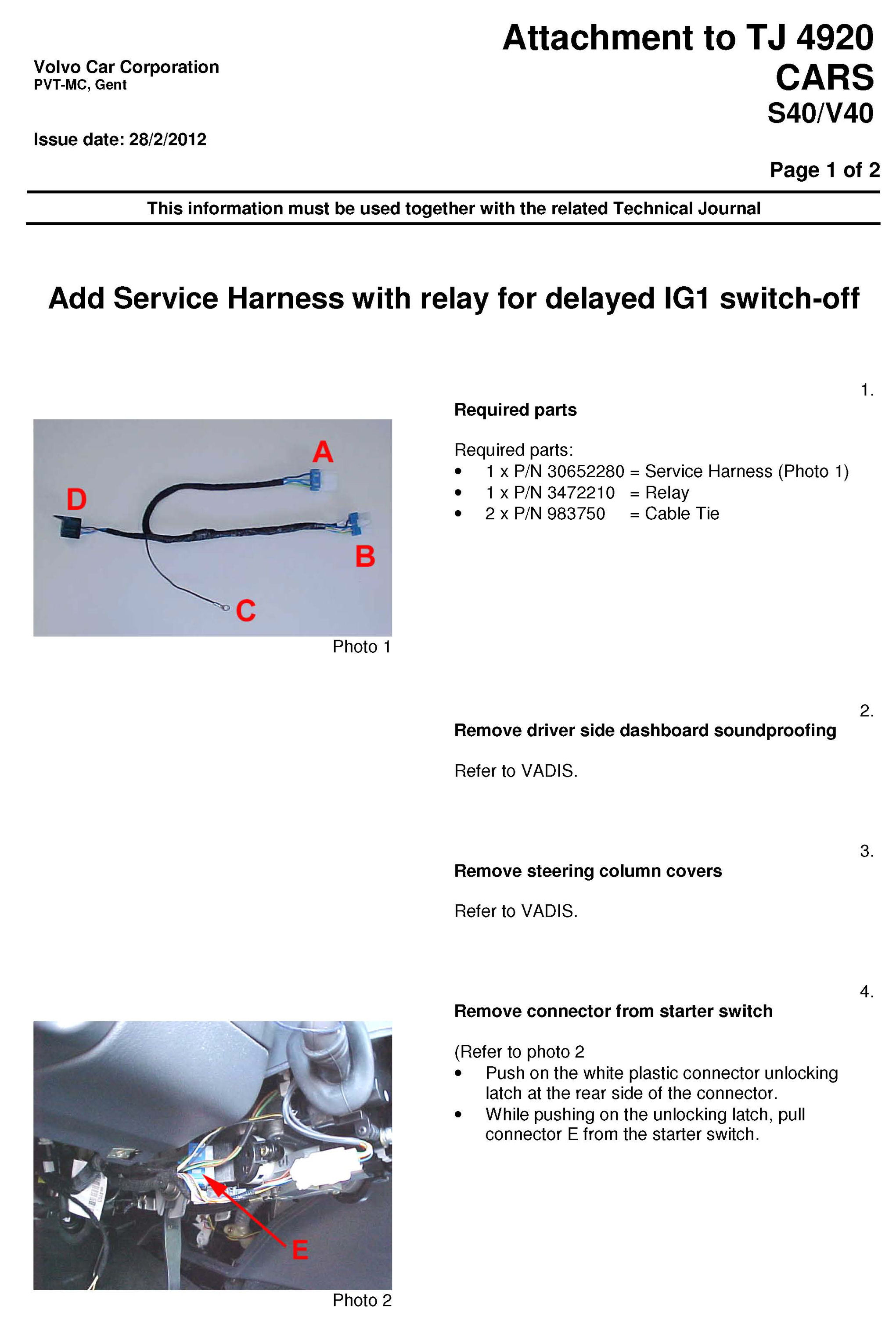

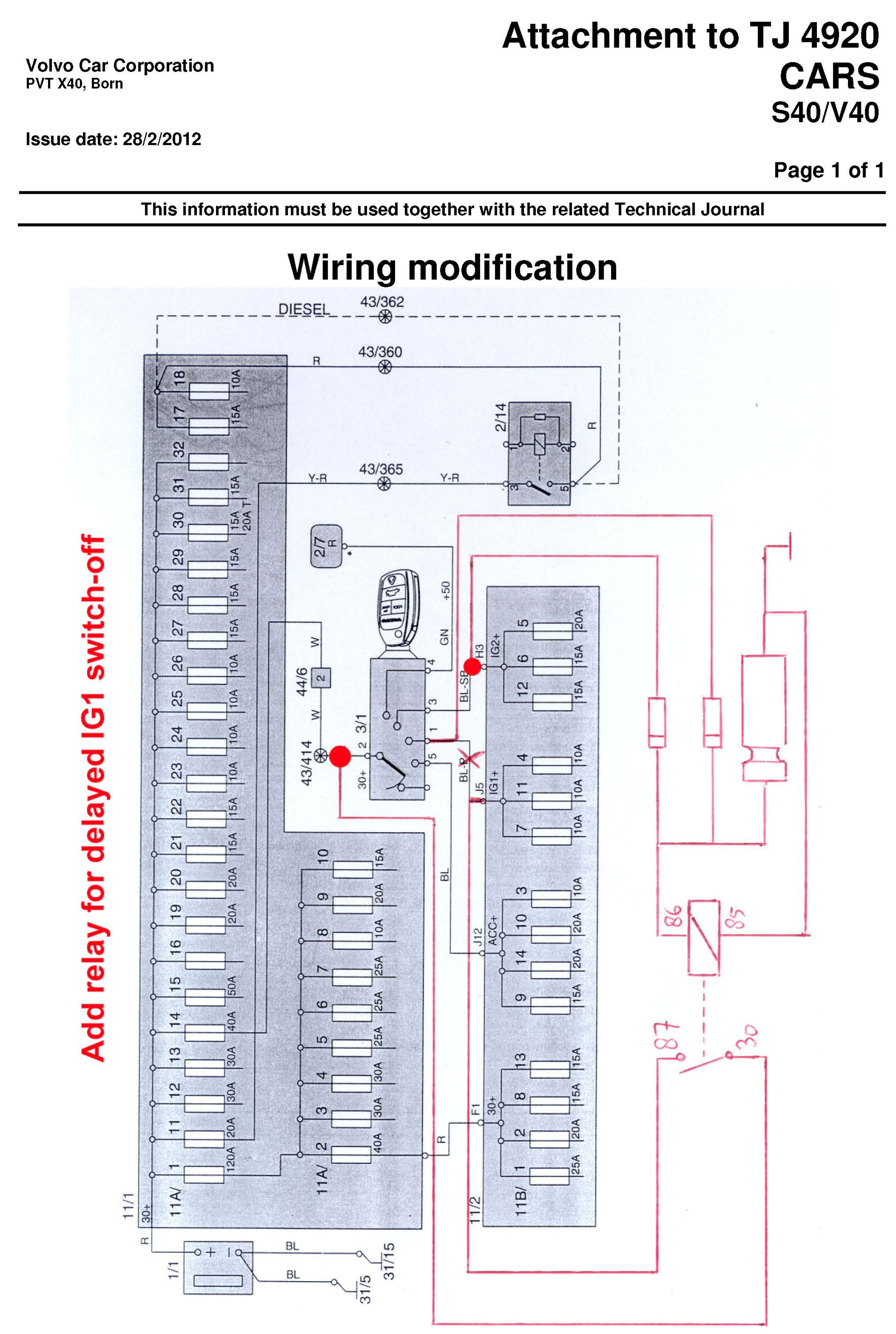

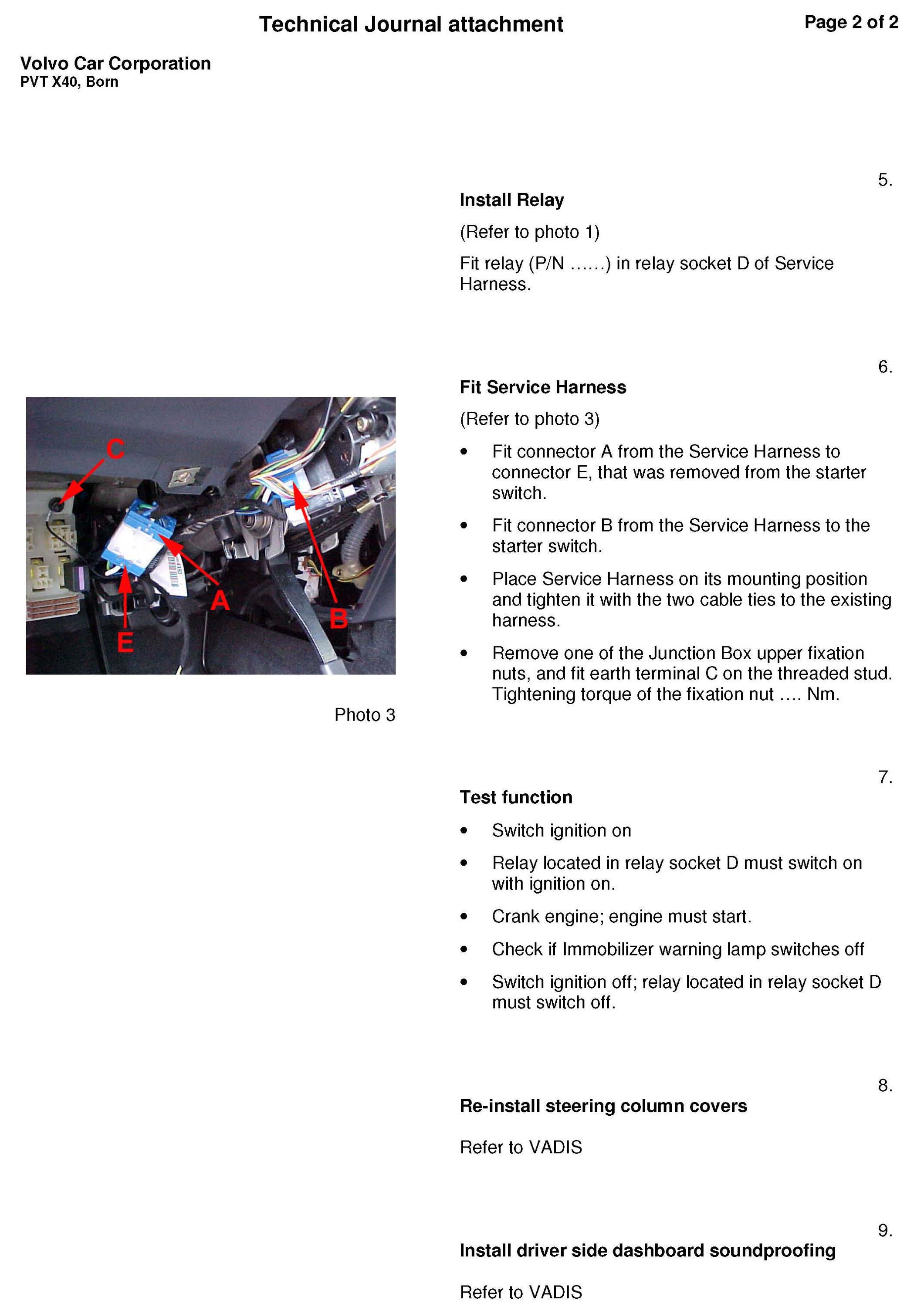

Install Service Harness P/N 30652280 according the method as described in attachment "TJ 4920 Service Harness installation". Attachment TJ 4920 wiring modification" shows the wiring diagram after installation of the Service Harness.
VOLVO STANDARD TIME GUIDE OPERATION NUMBER:
99191-2 Cable harness starter switch install S40,V40
