Checking the Control Module

Checking The Control Module

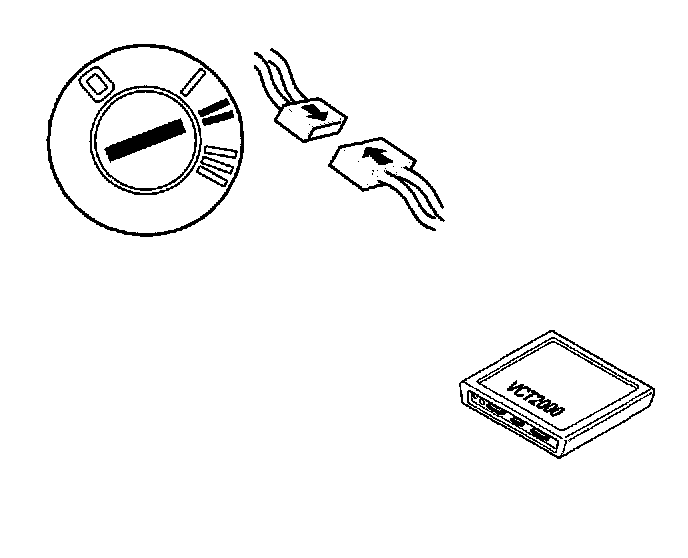

- Ignition on.
- Gear selector in position P.
- Activate solenoid S4 and S5 individually.

Read off the current in the circuit. The current should oscillate between 0 and approximately 1 A.

Does the current oscillate?

YES: Continue with Next Procedure. Refer to Fault-Tracing Information.
NO: Refer to Replacing the Control Module. Replacing the Control Module
