Checking Resistance

Checking Resistance

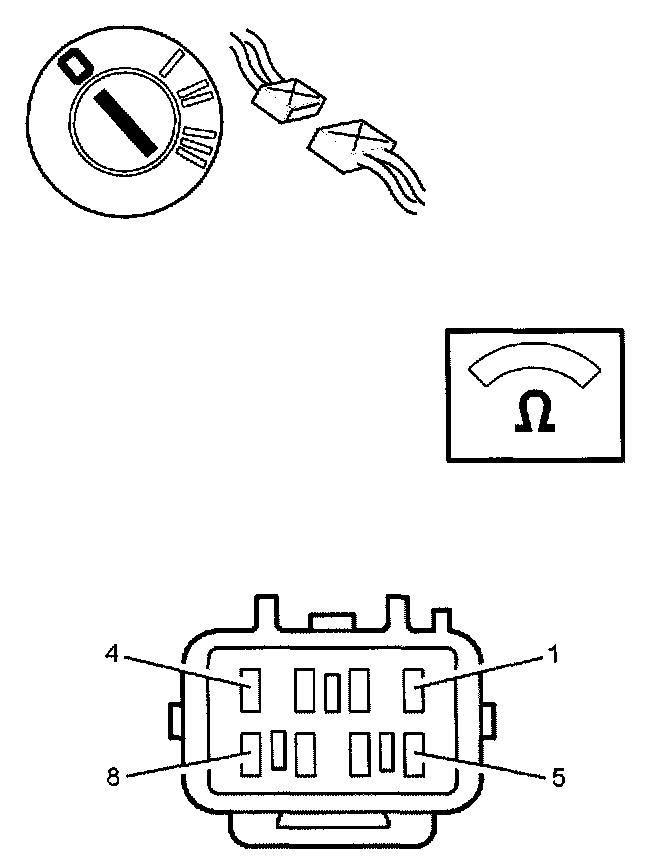

- Ignition off.
- 8-pin transmission connector disconnected.

Check solenoid SLT by measuring the resistance between terminals #3 and #4 transmission connector. The ohmmeter should read 5 - 5.6 Ohms at 20 degree C.

Other information:
- To disconnect the transmission connector, see Transmission connectors.
- For information about signals, see Signal description. Transmission control module (TCM).

Was the resistance OK?

YES: Continue with Next Procedure. Refer to Checking The Wiring.
NO: Refer to Checking The Wiring and Component. Checking the Wiring and Component
