- Ignition off.
- Open the transmission control system.

Check wiring between terminal #5 on the 8-pin transmission connector (transmission side) and solenoid SLS terminal #1.

Check the wiring between transmission terminal #6 (transmission side) and solenoid SLS terminal #2.

Check for a short-circuit to ground according to Checking wiring and terminals. Permanent faults.

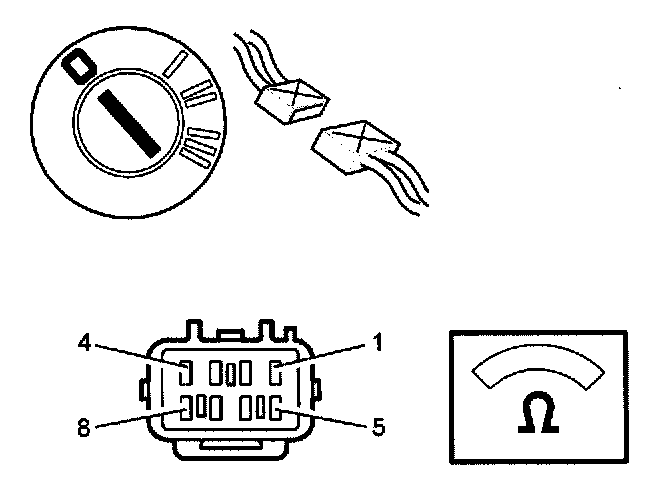

Check the solenoid SLS by measuring the resistance between terminals #1 and #2 on the connector. The resistance should be 5 - 5.6 Ohms at 20 degree C.

Replace the transmission control system if the resistance is incorrect.

Other information:
- To disconnect the transmission connectors, see Transmission connectors.
- To open and replace the transmission control system, see Replacing the cable harness for the control system.
- To replace the cable harness for the solenoids, see Replacing the cable harness for the control system.
- For information about signals, see Signal description. Transmission control module (TCM).

Continue with Next Procedure. Refer to Resetting Adaptation And The Counter For "Transmission Oil Change".
