Checking The Wiring and Component

Checking The Wiring And Component

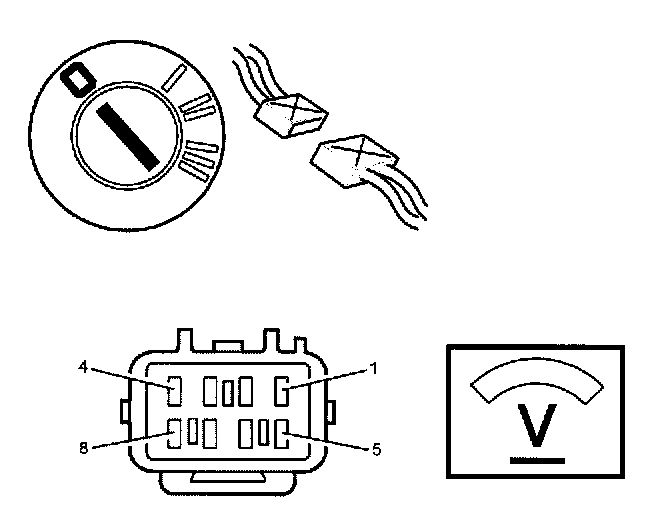

- Ignition off.
- Open the transmission control system.

Check wiring between transmission connector terminal #5 on the 8-pin transmission connector (transmission side) and solenoid SLS terminal #1.

Check the wiring between transmission connector terminal #6 on the 8-pin transmission connector (transmission side) and solenoid SLS terminal #2.

Check for a short-circuit according to Checking wiring and terminals. Permanent faults.

Also check against the other cables in the circuit. Use the relevant wiring diagram.

Check the solenoid SLS by measuring the resistance between terminals #1 and #2 on the connector. The resistance should be 5 - 5.6 Ohms (at 20 degree C). Replace the transmission control system if the resistance is incorrect.

Other information:
- To disconnect the transmission connectors, see Transmission connectors.
- To open and replace the transmission control system, see Replacing the cable harness for the control system.
- To replace the cable harness for the solenoids, see Replacing the cable harness for the control system.
- For information about signals, see Signal description. Transmission control module (TCM).

Continue with Next Procedure. Refer to Resetting Adaptation And The Counter For "Transmission Oil Change".
