Checking The Wiring

Checking The Wiring

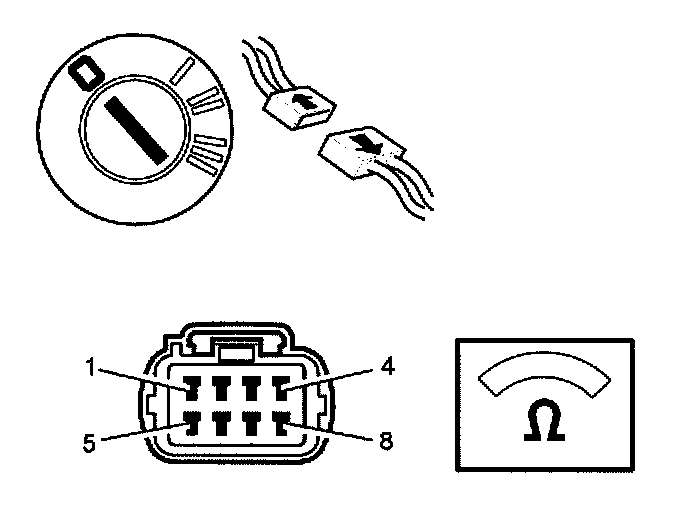

- Ignition off.
- The breakout box connected.
- Disconnected 8-pin transmission connector.

Check the cable between control module terminal #4 and terminal #5 on the 8-pin transmission connector (control module side). Check for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent faults.

Check the cable between control module #32 and terminal #6 on the 8-pin transmission connector (control module side). Check for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent faults.

Check the wiring in the circuit for short-circuits to other cables in the circuit. Use the relevant Wiring Diagram.

Remedy as necessary.

Other information:
- To connect the breakout box, see Connecting the breakout box.
- To disconnect the transmission connectors, see Transmission connectors.
- For information about signals, see Signal description. Transmission control module (TCM).

Was a fault found in the wiring?

YES: Continue with Next Procedure. Verification
NO: Refer to Checking The Wiring And Component. Checking The Wiring and Component
