Checking Line Pressure Solenoid SLS

Checking Line Pressure Solenoid SLS

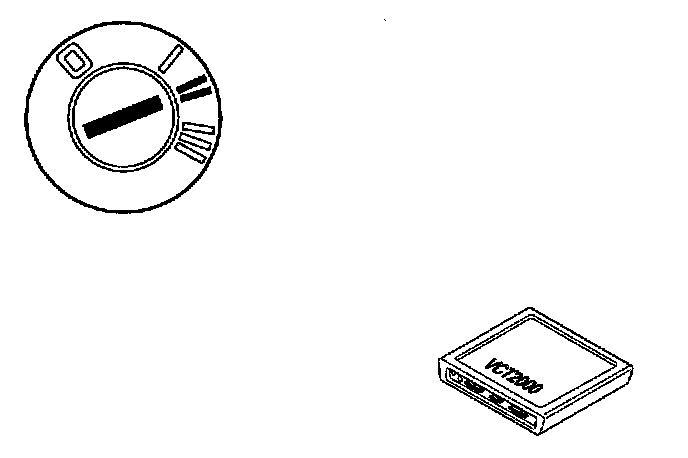

- Ignition on.
- Activate solenoid SLS.

Read off the current through the solenoid SLS circuit.
The current should oscillate between 0 and 1000 mA.

Other information:
- To disconnect the transmission connectors, see Transmission connectors.
- To disconnect the control module, see Transmission control module (TCM), replacing.
- For information about signals, see Signal description. Transmission control module (TCM).

Does the current oscillate?

YES: Refer to Trouble Code Description. Diagnostic Trouble Code Descriptions
NO: Continue with Next Procedure. Refer to Checking The Wiring.
