Checking The Wiring and Component

Checking The Wiring And Component







- Ignition off.
- Open the transmission control system.

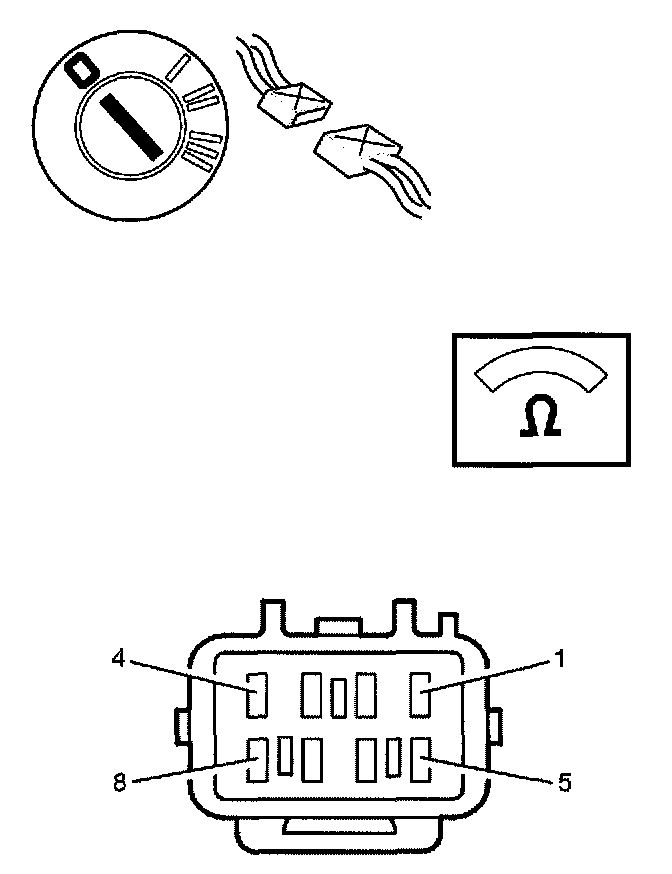

Check wiring between transmission connector terminal #1 on the 8-pin transmission connector and solenoid SLU terminal #1.

Check the wiring between transmission terminal #2 on the 8-pin transmission connector and solenoid SLU terminal #2.

Check for an short-circuit to ground according to Checking wiring and terminals. Permanent faults.

Check the solenoid SLU by measuring the resistance between solenoid connector terminals #1 and #2. The resistance should be 5 - 5.6 Ohms at 20 degree C. Replace the transmission control system if the resistance is incorrect.

Other information:
- To disconnect the transmission connectors, see Transmission connectors.
- To replace the transmission control system, see Replacing the cable harness for the control system.
- To replace the cable harness for the solenoids, see Replacing the cable harness for the control system.
- For information about signals, see Signal description. Transmission control module (TCM).

Continue with Next Procedure. Refer to Resetting Adaptation And The Counter For "Transmission Oil Change".
