Checking Resistance

Checking Resistance

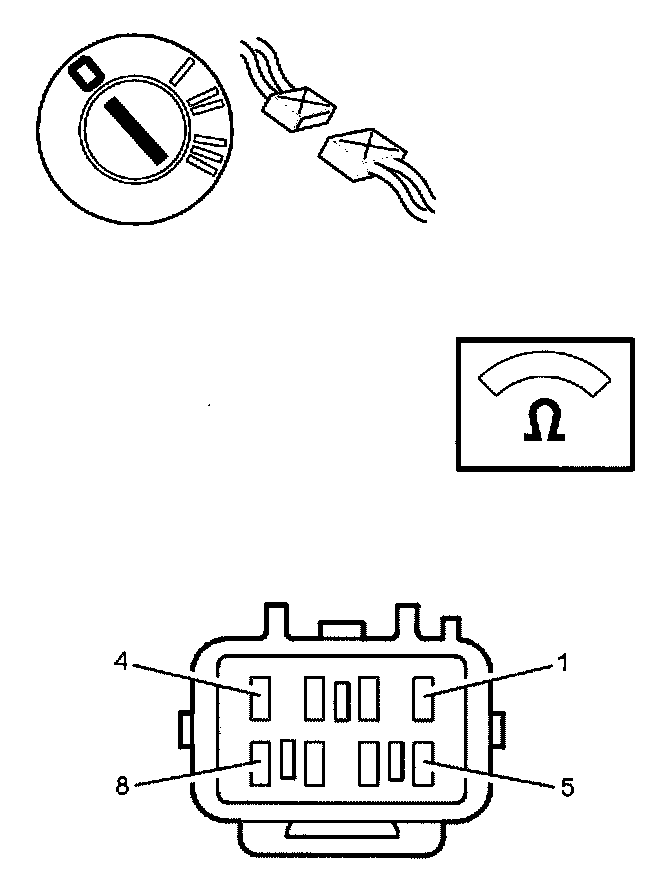

- Ignition off.
- 8-pin transmission connector disconnect.

Check the solenoid SLU circuit by measuring the resistance between terminals #1 and #2 on the transmission connector.

The ohmmeter should read 5 - 5.6 Ohms (at 20 degree C).

Other information:
- To disconnect the transmission connectors, see Transmission connectors.
- For information about signals, see Signal description. Transmission control module (TCM).

Was the resistance OK?

YES: Continue with Next Procedure. Refer to Checking The Wiring.
NO: Refer to Checking The Wiring And Component. Checking The Wiring and Component
