Checking The Wiring

Checking The Wiring

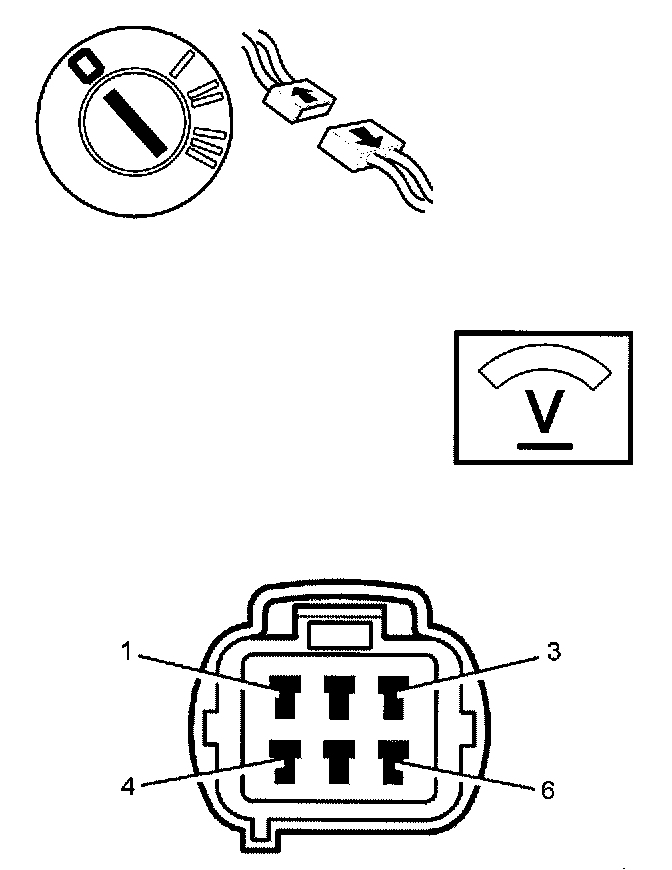

- Ignition off.
- Disconnect the dark gray 6-pin transmission connector.

Check the cable between control module terminal #6 and terminal #5 on the dark gray 6-pin transmission connector (control module side). Check for short-circuit to supply voltage according to Checking wiring and terminals. Permanent faults.

Also check against the other cables in the circuit. Use the relevant wiring diagram.

Other information:
- To connect the breakout box, see Connecting the breakout box.
- To disconnect the transmission connectors, see Transmission connectors.
- For information about signals, see Signal description. Transmission control module (TCM).

Was a fault detected?

YES: Continue with Next Procedure. Verification - I
NO: Refer to Checking The Wiring And Component. Checking The Wiring and Component
