Checking The Wiring

Checking The Wiring







- Ignition off

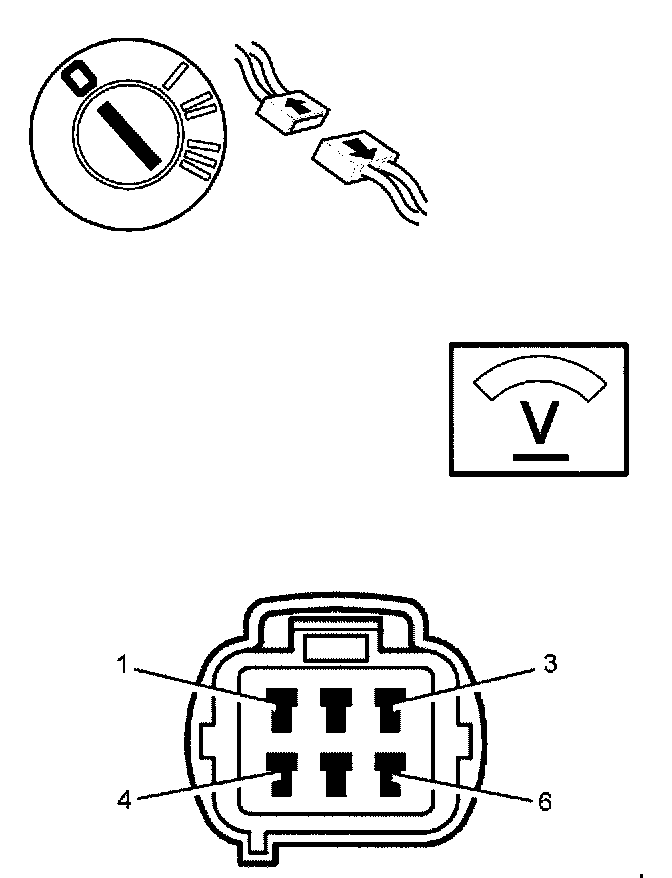

- Disconnect the dark gray 6-pin transmission connector.

Check the cable between control module terminal #35 and terminal #3 on the dark gray 6-pin transmission connector (control module side). Check for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent faults. Also check against the other cables in the circuit. Use the relevant wiring diagram.

Other information:
- To connect the breakout box, see Connecting the breakout box.
- To disconnect the transmission connectors, see Connectors, transmission, disconnecting/connecting.
- For information about signals, see Signal description. Transmission control module.

Was a fault detected?

YES: Continue with Next Procedure. Verification - I
NO: Refer to Checking the Wiring and Component. Checking The Wiring and Component
