Intermittent Fault

Intermittent Fault

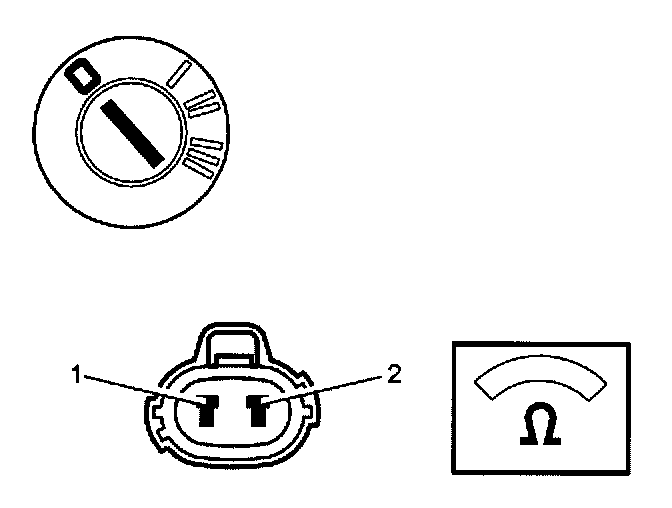

- Ignition off.

Check the power supply cable between control module terminal #9 and terminal #2 on the white 2-pin transmission connector. Check for an intermittent open-circuit according to Checking wiring and terminals. Intermittent faults. Check for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults.

Check the signal cable between control module terminal #10 and terminal #1 on the white 2-pin transmission connector. Check for an intermittent open-circuit according to Checking wiring and terminals. Intermittent faults. Check for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults.

Remedy as necessary.

Other information:
- To connect the breakout box, see Connecting the breakout box.
- To disconnect the control module, see Transmission connectors.
- For information about signals, see Signal description. Transmission control module (TCM).

Continue with Next Procedure. Fault-Tracing Information - Intermittent Fault
