Checking the Wiring and Component - I

Checking The Wiring And Component

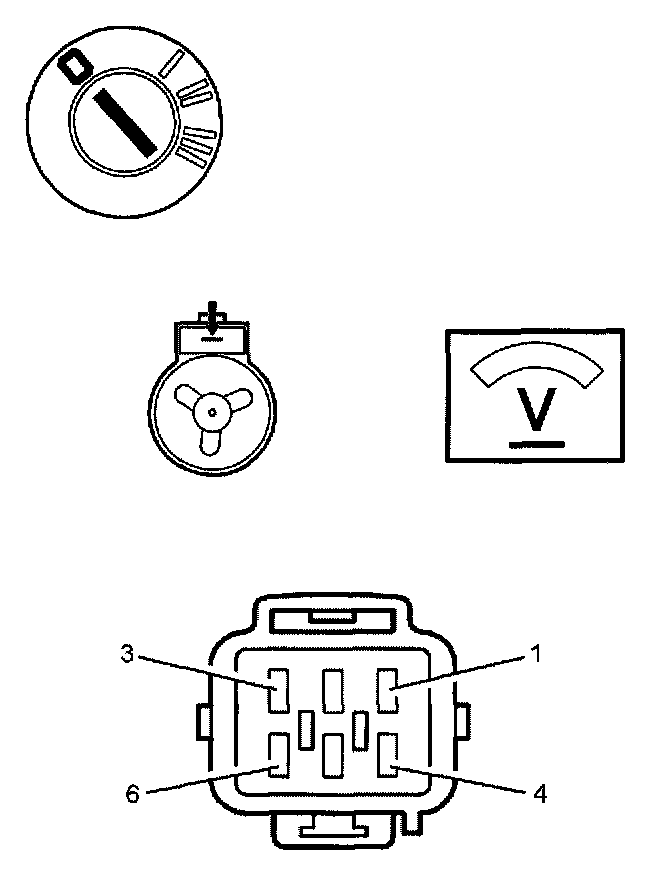

- Ignition off
- Open the control system.

Check the cable between terminal #2 on the 6-pin transmission connector (transmission side) and the connector for solenoid S2. Check for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent faults. Also check against the other cables in the circuit. Use the relevant wiring diagram.

Remedy as necessary.

Other information:
- To connect the breakout box, see Connecting the breakout box
- To disconnect the transmission connectors, see Transmission connectors
- To replace the cable harness for the solenoids, see Replacing the cable harness for the control system
- To open the control system and to check or replace solenoid S2, see Replacing the solenoids and control system
- For information about signals, see Signal description. Transmission control module (TCM).

Continue with Next Procedure. Refer to Resetting Adaptation and the Counter For "Transmission Oil Change".
