Checking the Wiring - I

Checking The Wiring







- Ignition off

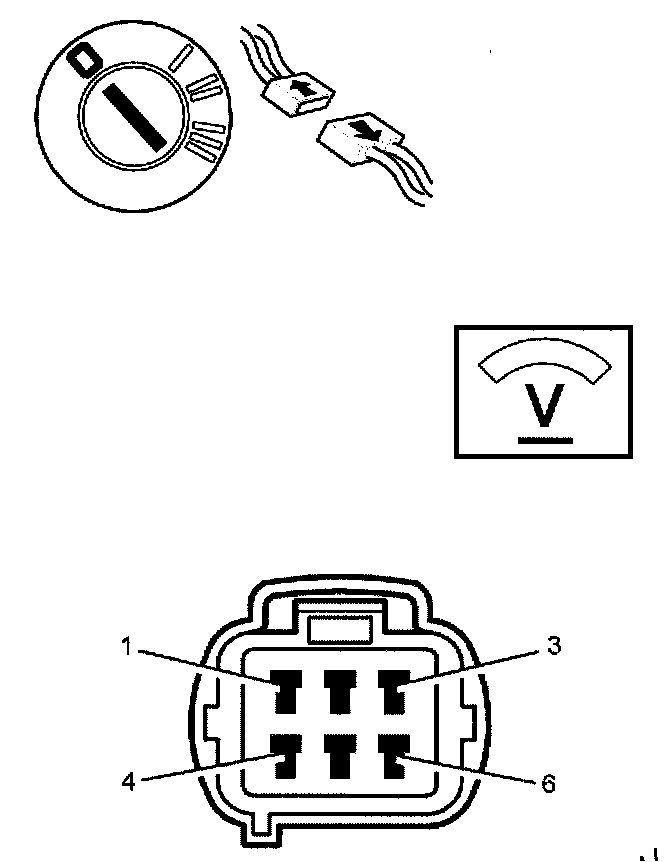

- Disconnect the dark gray 6-pin transmission connector.

Check the cable between control module terminal #34 and terminal #2 on the 6-pin transmission connector (control module side). Check for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent faults. Also check against the other cables in the circuit. Use the relevant wiring diagram.

Other information:
- To connect the breakout box, see Connecting the breakout box
- To disconnect the transmission connectors, see Transmission connectors
- For information about signals, see Signal description. Transmission control module (TCM).

Was a fault detected?

YES: Continue with Next Procedure. Verification - I
NO: Refer to Checking The Wiring And Component - I. Checking the Wiring and Component - I
