Checking Shift Solenoid S2

Checking Shift Solenoid S2

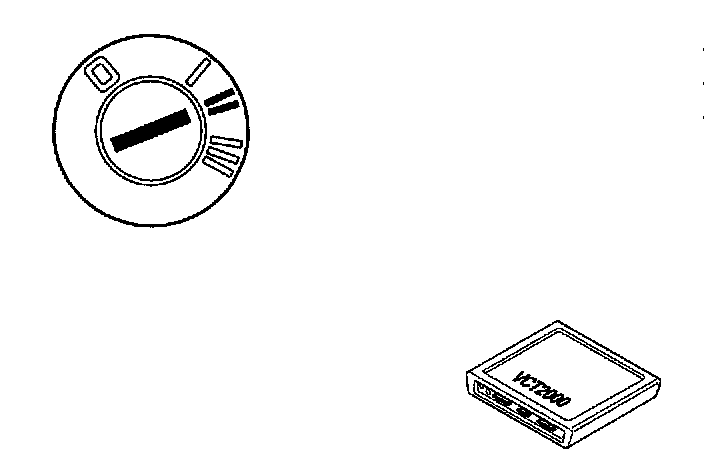

- Ignition on
- Gear selector in position P
- Activate solenoid S2.

The value must change between OFF and ON.

Does the value change?

YES: Continue with Next Procedure. Refer to Intermittent Fault - I.
NO: Refer to Checking the Wiring - I. Checking the Wiring - I
