Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information ECM-6110

Condition

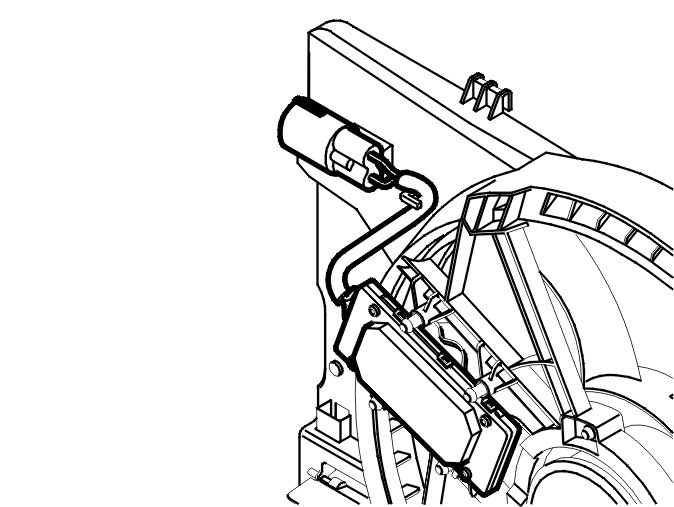

The diagnostic trouble code (DTC) is stored if the engine control module (ECM) detects a fault in the engine cooling fan (FC) module.
The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute value
- None.

Possible source

Signal too high
- Short-circuit to supply voltage in the signal cable
- Damaged engine cooling fan (FC) control module.

Signal too low
- Short-circuit to ground in the signal cable
- Short-circuit to ground in the power supply cable
- Damaged engine cooling fan (FC) control module.

Signal missing
- Open-circuit in the signal cable
- Damaged engine cooling fan (FC) control module.

Fault symptom[s]
- The engine cooling fan (FC) runs continuously even when the ignition is switched off.
