Signal Too High

Signal too high

Checking the component and wiring

Warning! The engine cooling fan (FC) can also operate if the ignition is switched off when this diagnostic trouble code (DTC) is stored.

Hint: To avoid injury, disconnect the power supply to the engine cooling fan (FC) during fault-tracing.

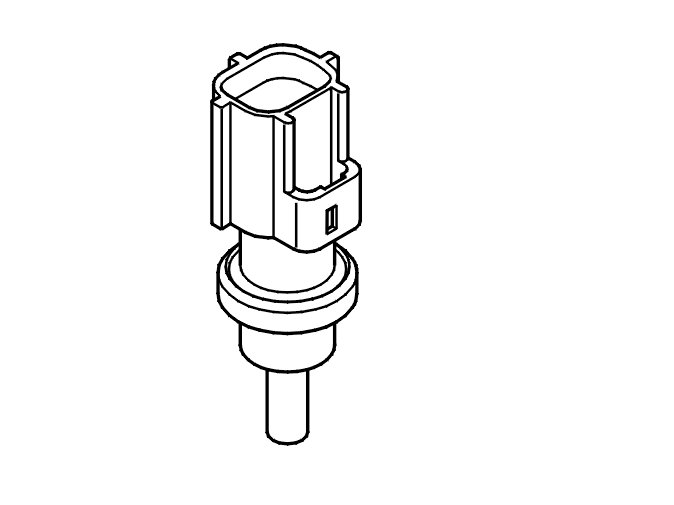

Check the resistance of the engine coolant temperature (ECT) sensor. Take readings between terminals #1 and #2 on the engine coolant temperature (ECT) sensor.
Check the signal cable between engine control module (ECM) terminal #A67 (#B7) and engine coolant temperature (ECT) sensor terminal #1. Check for a short-circuit to ground.
Remedy as necessary.

Other information:
- Connecting the breakout box Connecting The Breakout Box, Engine Control Module (ECM)
- Signal specification Signal Specification, Engine Control Module (ECM)
- Component specifications [1][2]Electrical Specifications
- Engine coolant temperature sensor (ECT) Service and Repair
- Checking wiring and terminals Checking Wiring and Terminals














Continue - Verification

-------------------------------------------------

Verification




Verification

Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Verification should begin with a cold engine (+20 °C) so that the engine coolant temperature (ECT) sensor can be tested over as wide a temperature range as possible
- Ignition off
- Reconnect the connectors, reinstall components etc.
- Start the engine.
Read off the engine coolant temperature (ECT) sensor signal.
Check that the engine coolant temperature (ECT) is within its permitted range and corresponds with the engine warming up.





Is the temperature within its permitted range?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - Fault Found

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit Fault-Tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the component and wiring

-------------------------------------------------
