Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information DDM-0016

Condition

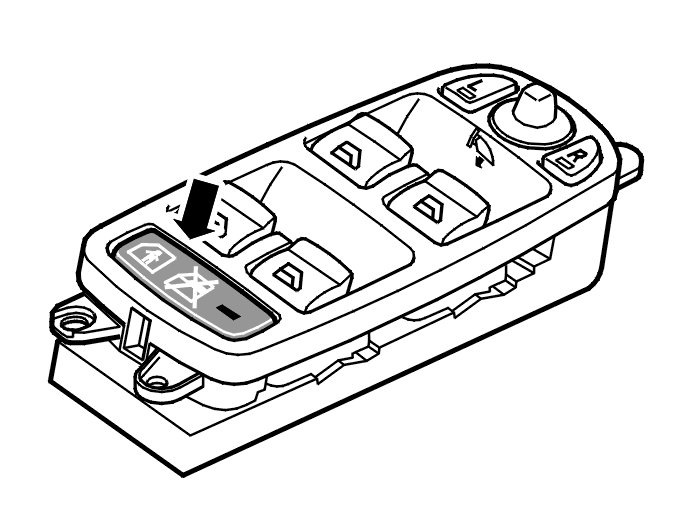

The diagnostic trouble code (DTC) is stored if the control module registers that the child-proof lock button has been pressed for more than 60 seconds.

Substitute value
- None.

Possible source
- The button has jammed in the pressed in position
- Damaged button.

Fault symptom[s]
- The child-proof lock does not function.
