Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information DDM-0015

Condition

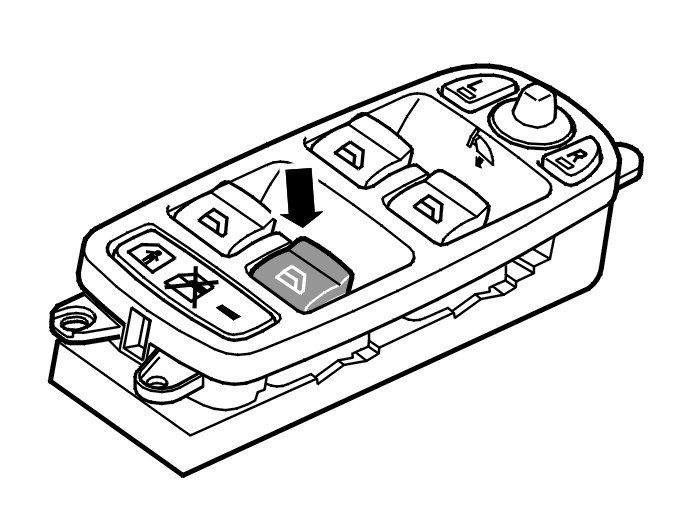

Note! The illustration shows the control panel for the driver door in a left-hand drive car. The control panel of a right-hand drive car is the mirror image.

The diagnostic trouble code (DTC) is stored if the control module registers that the driver's door button for operating the power window mechanism in the right rear door has been pressed for more than 60 seconds.

Substitute value
- None.

Possible source
- The button has jammed in the pressed in position
- Damaged button for the power window mechanism.

Fault symptom[s]
- The power window mechanism in the rear door does not operate.
