Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information AUD-0009

Condition

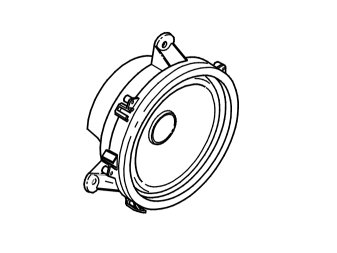

The diagnostic trouble code (DTC) is stored if the audio module (AUD) registers that the signal on the signal cable from the loudspeaker in the left rear door is too high or too low.
The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute value
- None.

Possible source
- Short-circuit to supply voltage in the signal cable between the control module and the loudspeaker in the left rear door
- Short-circuit to ground in the signal cable between the control module and the loudspeaker in the left rear door.

Fault symptom[s]
- No sound from the loudspeakers.
