Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information AUD-0007

Condition

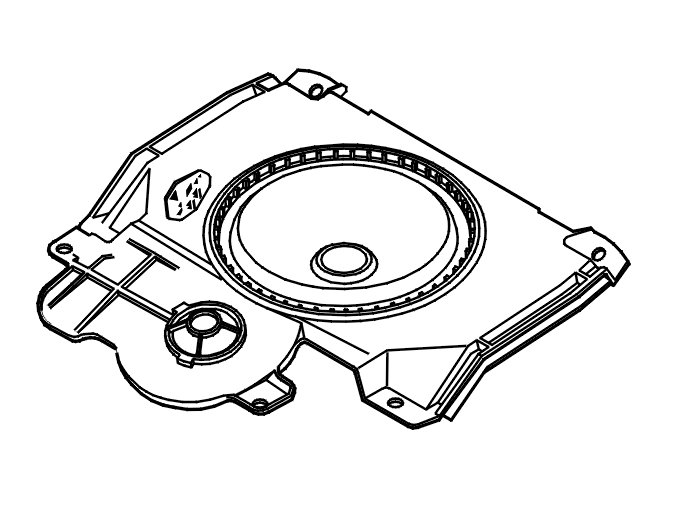

The diagnostic trouble code (DTC) is stored if the audio module (AUD) registers that the signal on the signal cable from the center loudspeaker is too high or too low.
The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute value
- None.

Possible source
- Short-circuit to supply voltage in the signal cable between the center loudspeaker and the control module
- Short-circuit to ground in the signal cable between the center loudspeaker and the control module.

Fault symptom[s]
- No sound from the loudspeakers.
