Canister Purge Control Valve: Service and Repair

EVAP Valve, Replacing

NOTE: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Preparatory work
Disconnect the hose for the turbocharger (TC).

Removing the evaporative emission system (EVAP) valve

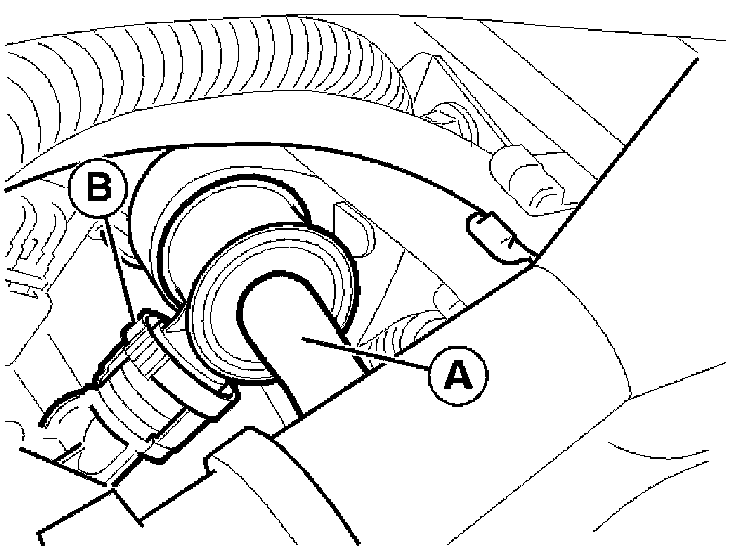

Disconnect the evaporative emission system (EVAP) valve connector. Remove the valve from the bracket on the cylinder block. Pull the hose (A) off the valve. Remove the hose connector (B). Press the catch in and pull the hose connector straight outwards.

Installation

Installing the evaporative emission system (EVAP) valve
- the evaporative emission system (EVAP) valve
- the hoses
- The evaporative emission system (EVAP) valve on the bracket on the cylinder block.

Connect the canister purge (CP) valve connectors.

Finishing
Install the hose on the turbocharger (TC).
