Brakes - ABS Lamp ON/Wheel Speed Sensor DTC's Set
TIE - Technical JournalTitle Metal Particles on rear hub ABS encoder ring, BCM 0032 0042 C003607 C003707
Ref No S17144.2.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 7732
Func Desc hub, rear
Status Released
Status Date 2010-05-17
Issue Date 2010-05-11
Reference VIDA
Attachment

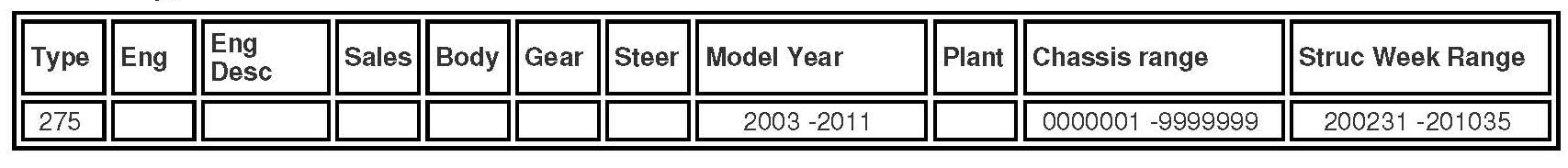

Vehicle Type

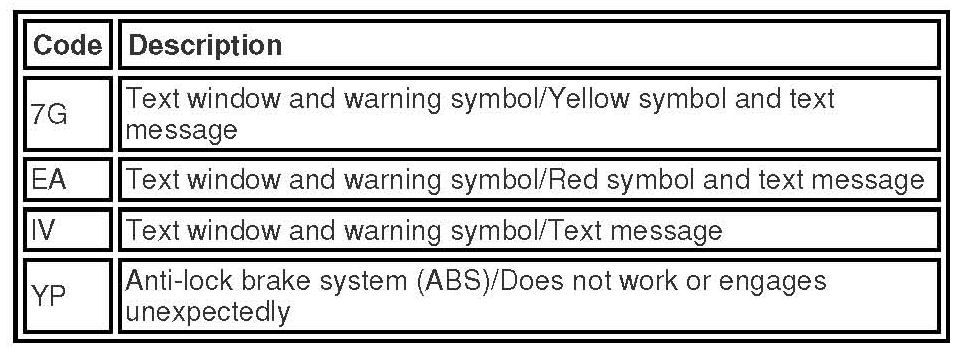

CSC
DTC
Text
CSC=Customer Symptom Code
DTC=Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:

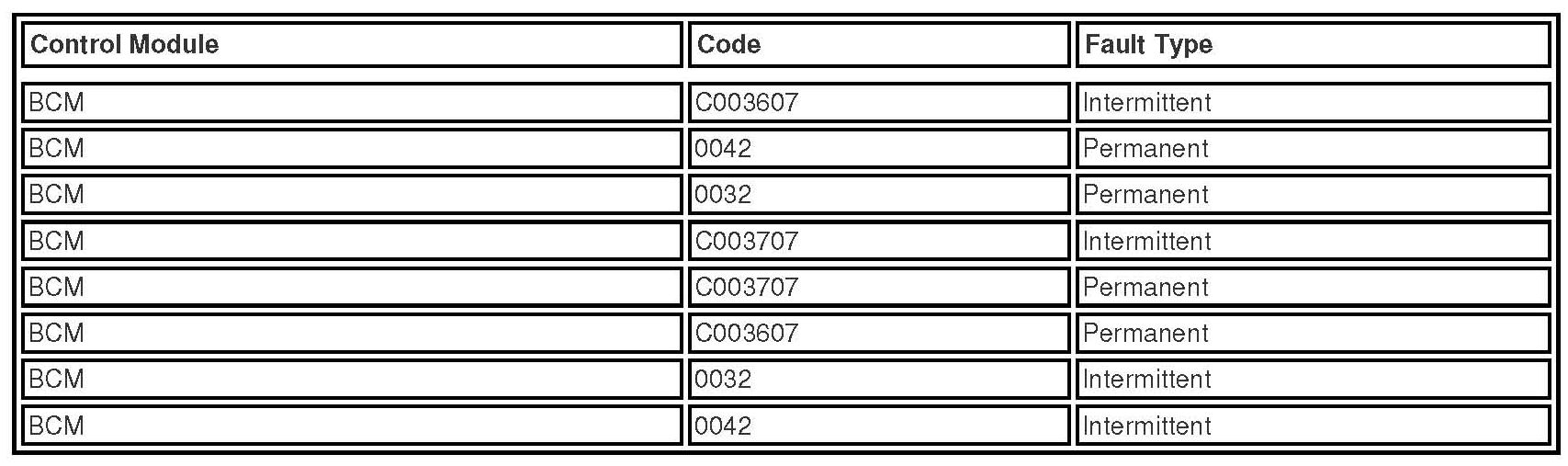

It may happen that metal particles get trapped on the magnetic ABS (Antilock Brake System) encoder ring (located on the rear wheel hub) which may cause a "Brake service required" message in DIM (Driver Information Module). BCM (Brake Control Module) codes 0032 0042 C003607 or C003707 could be stored in the BCM.
Analysis show that the metal particles may originate from factory and in some cases also from the road while driving.
SERVICE:
If any of these DTC's occur it may indicate a problem with the toothed wheel sensor or the rear hub.

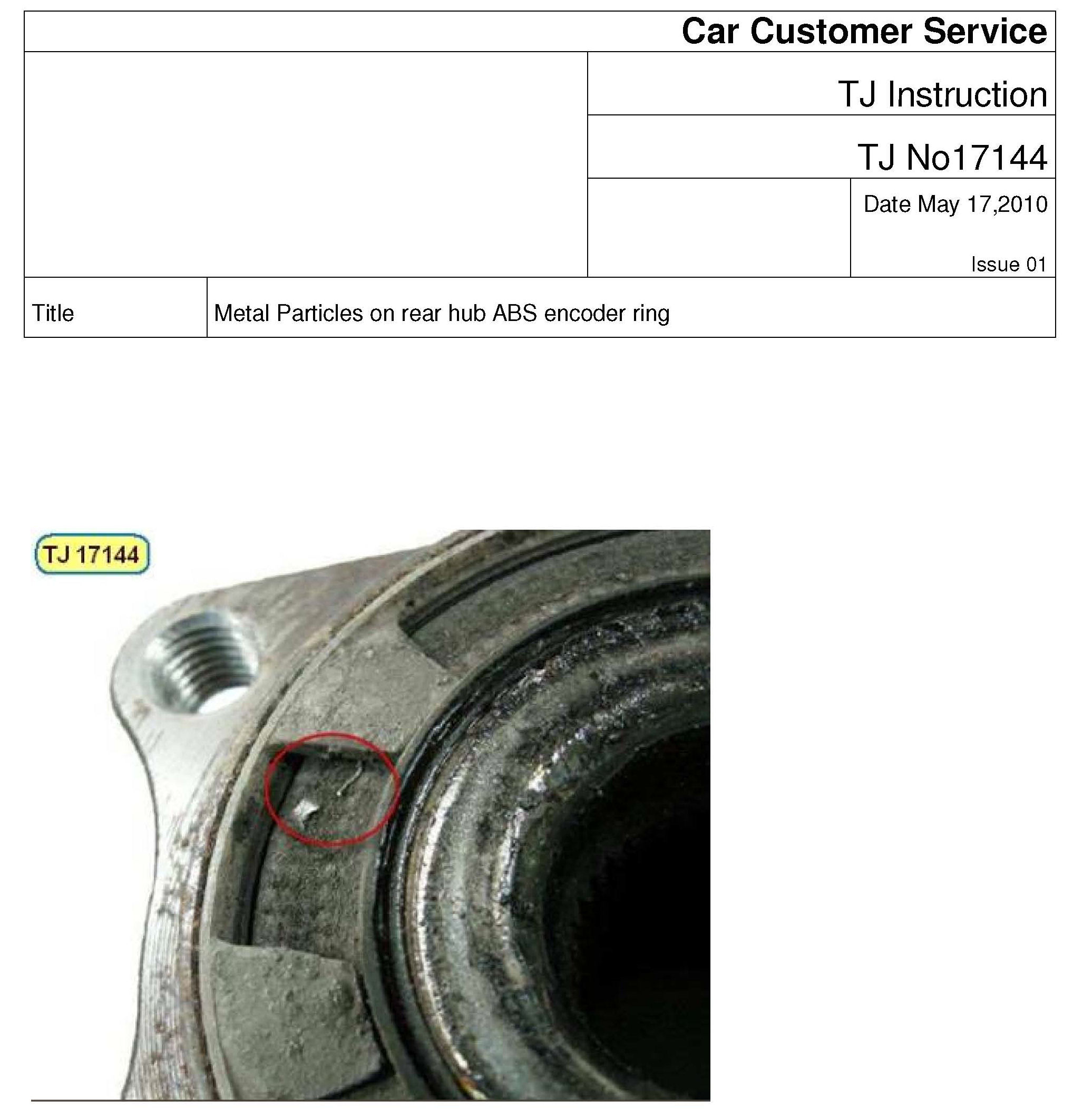

First inspect the hub for any metal particles possibly trapped on the ABS encoder ring (Refer to picture in attachment).
If a metal particles are found do not replace the hub remove them from the hub and also inspect the encoder ring for possible damages.
* Note:
Do not use a magnet to remove the metal particle since this could damage the encoder ring.
Reinstall and test drive the vehicle to verify repair before releasing it to customer.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number - 98231-2 Rear wheel hub 1 side clean -04 1.6 / 05- 1.2
Operation number - 98232-2 Rear wheel hub 2 sides clean -04 2.2 / 05- 1.8
-Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
-Labor times are valid at the time of release and are subject to change.
