Electrical Distribution Overview

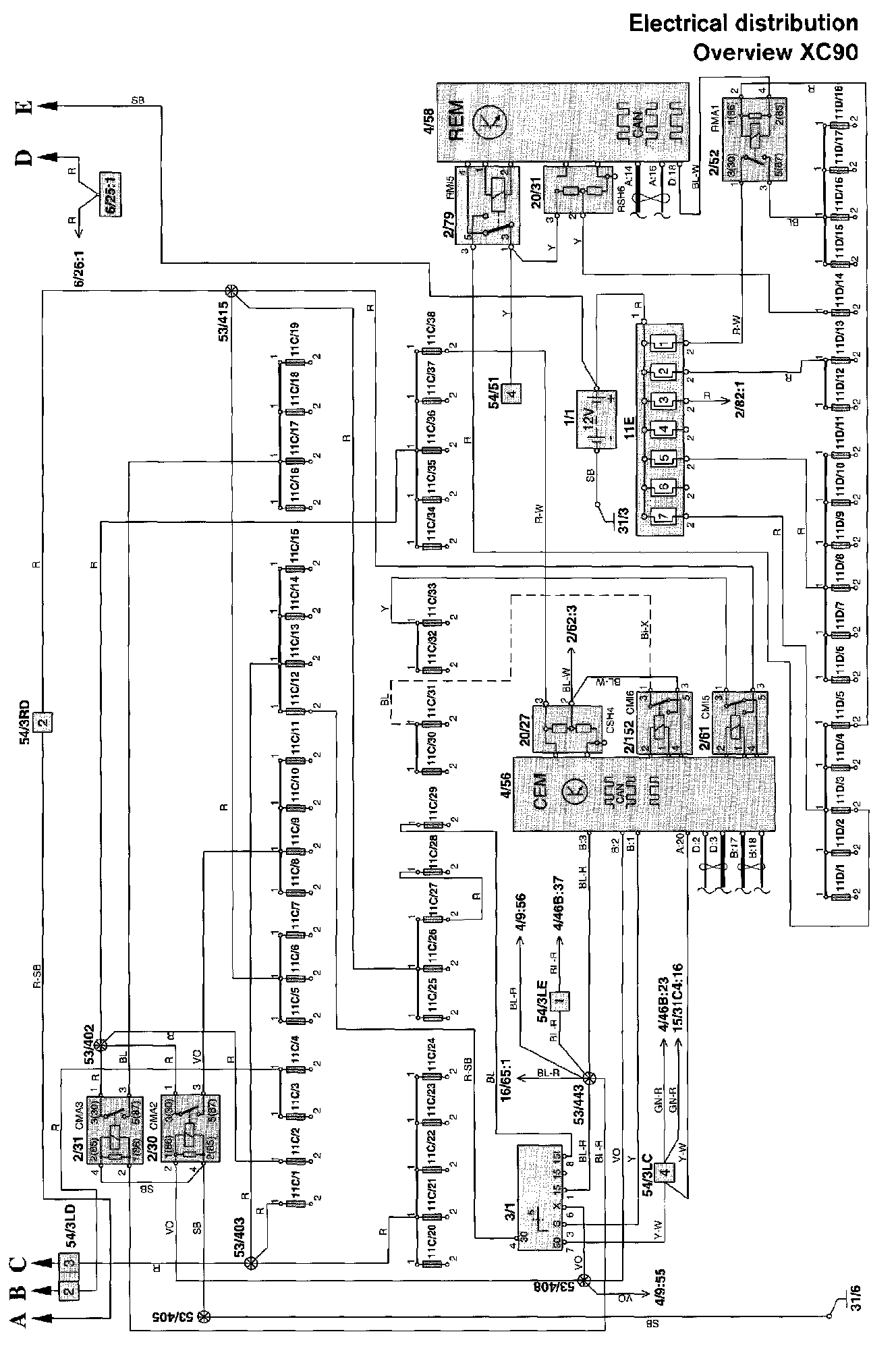

Electrical Distribution Overiew - Part 1:

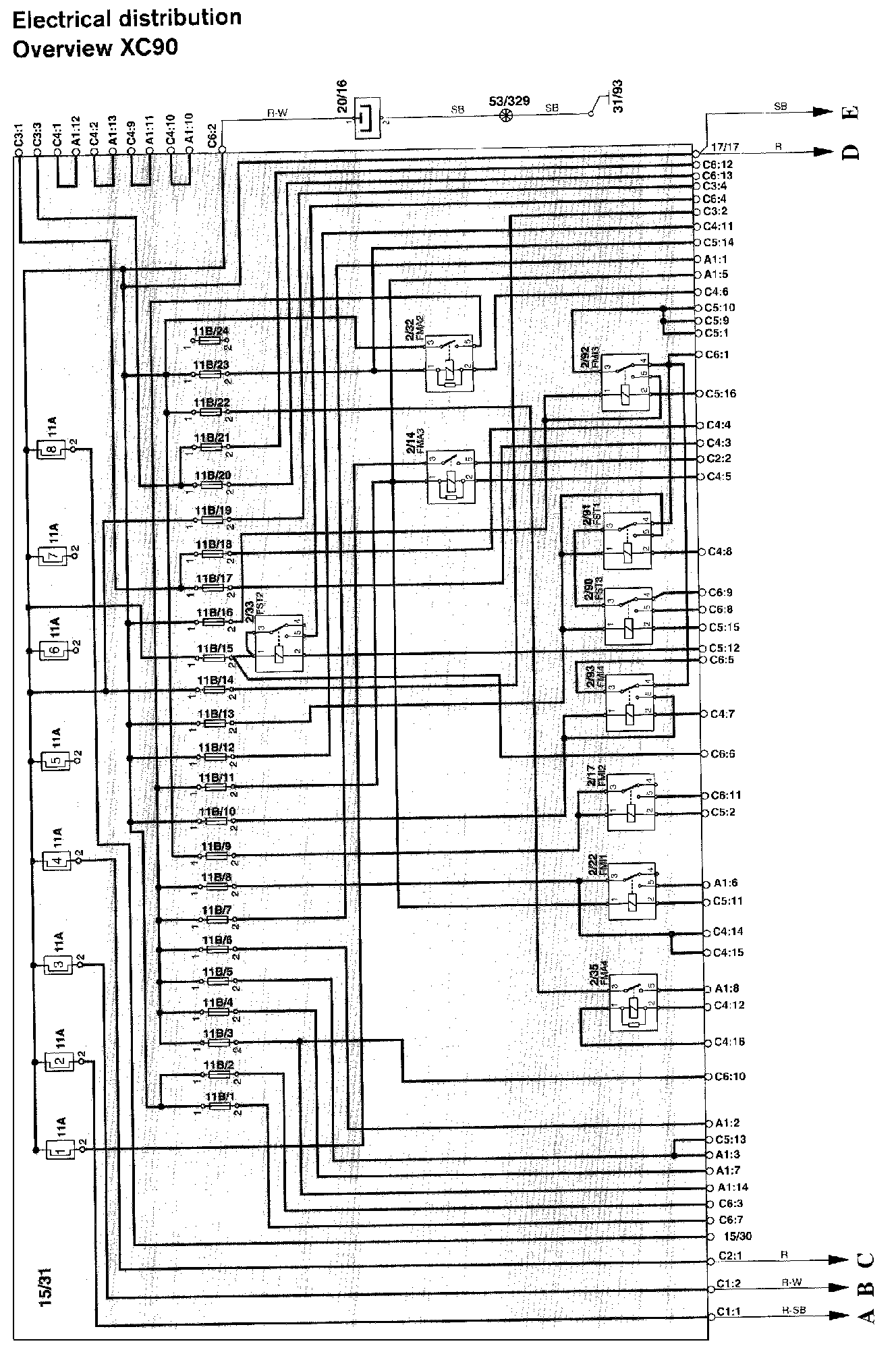

Electrical Distribution Overview - Part 2:






Diagram Legend, Diagram Legend
