Keypad Unit, Steering Wheel, Replacing



Keypad Unit, Steering Wheel, Replacing

Driver's airbag module
Remove the driver's airbag module.

Keypad

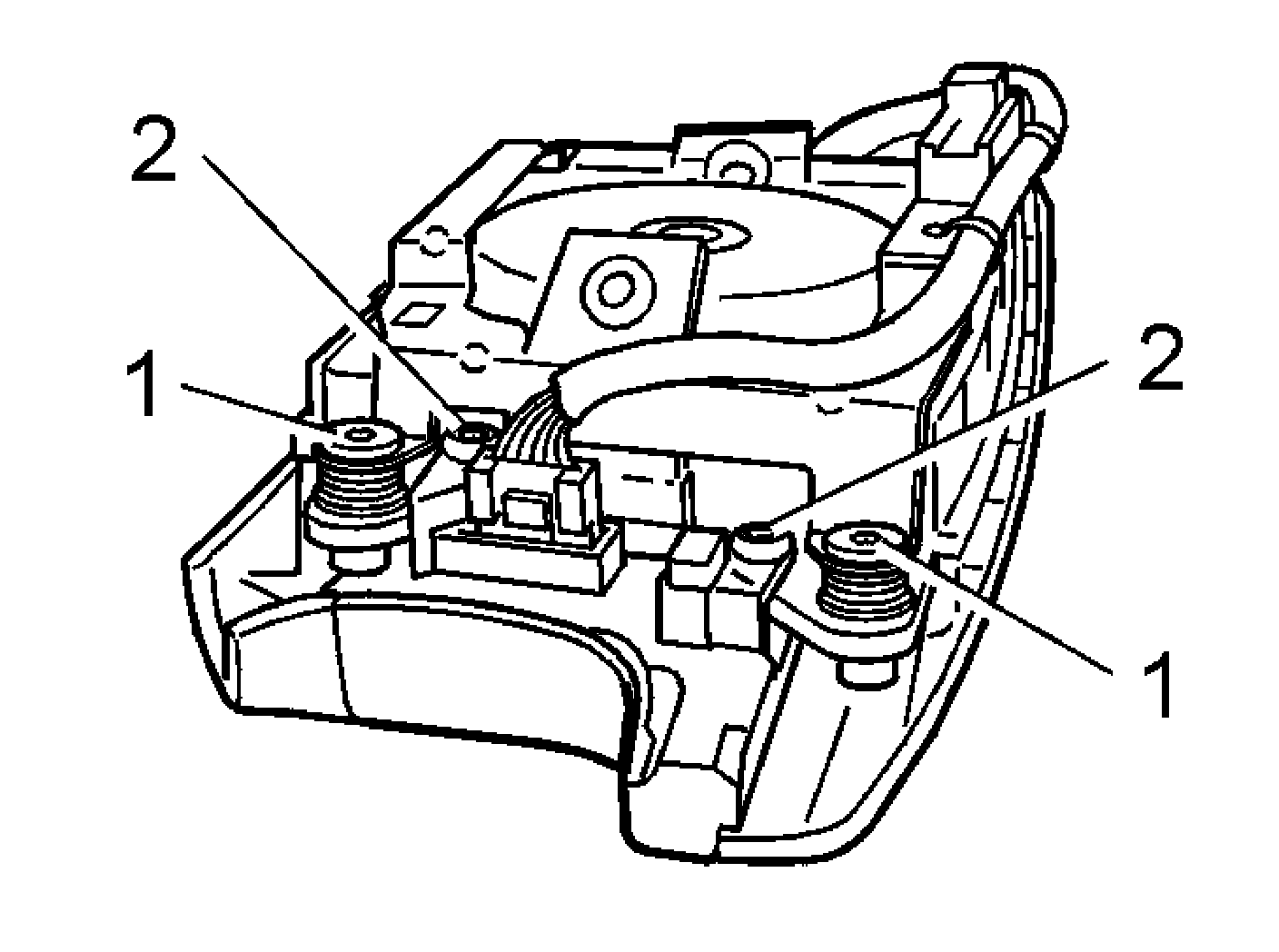

Remove:







- the four screws for the bracket (1) (10 Nm)
- the two screws for the keypad kit x2 (2) (2 Nm)
- the two connectors for the keypad.

Install
- Install in reverse order
