High and Low Beam Plus Auxiliary Light Wiring
High and Low Beam Plus Auxiliary Light Wiring

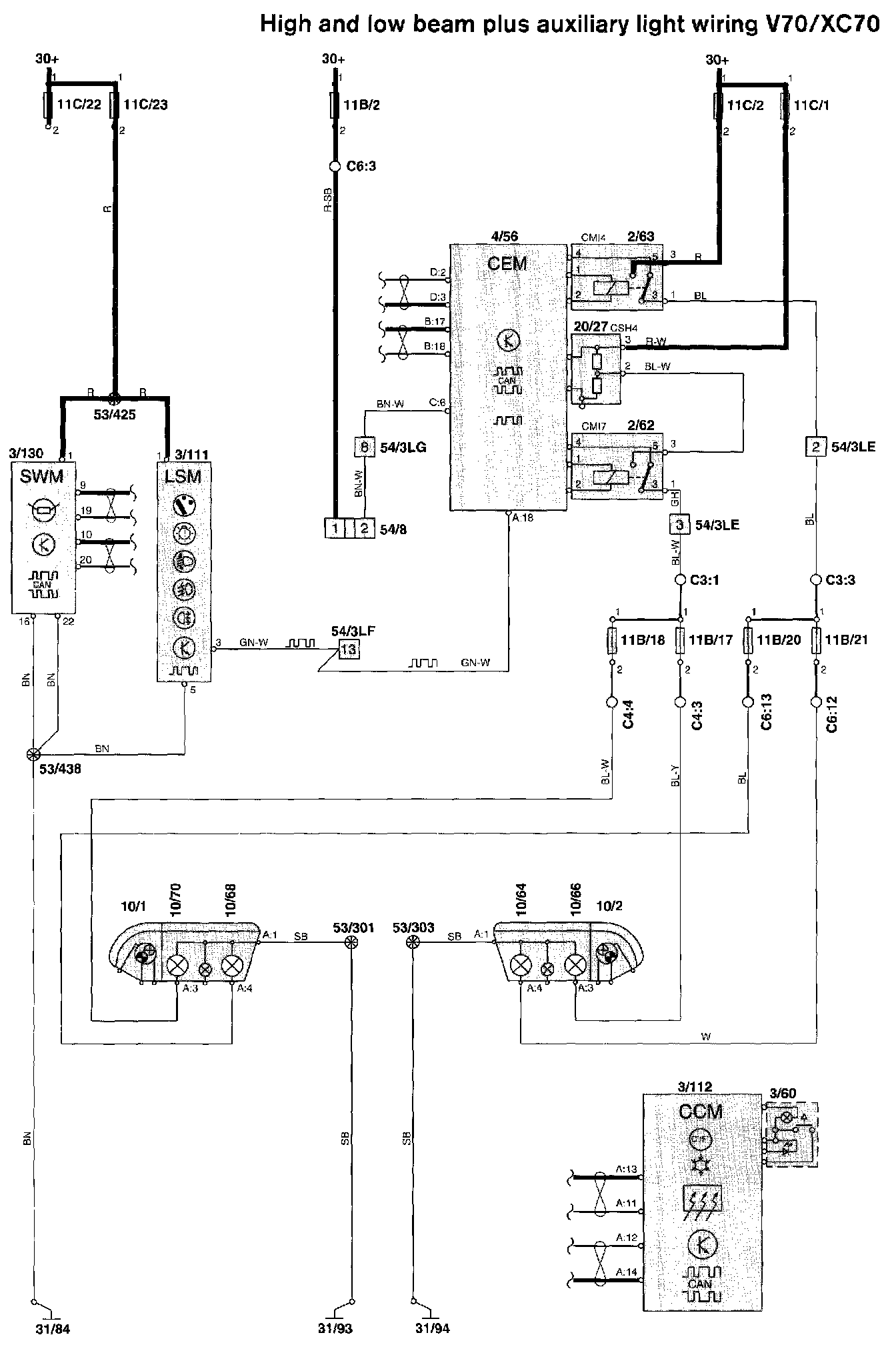

High And Low Beam Plus Auxiliary Light Wiring:
Diagram Legend,
Diagram Legend
