Home >> Volvo >> 2003 >> XC70 L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram >> Wipers/Washers, Windshield

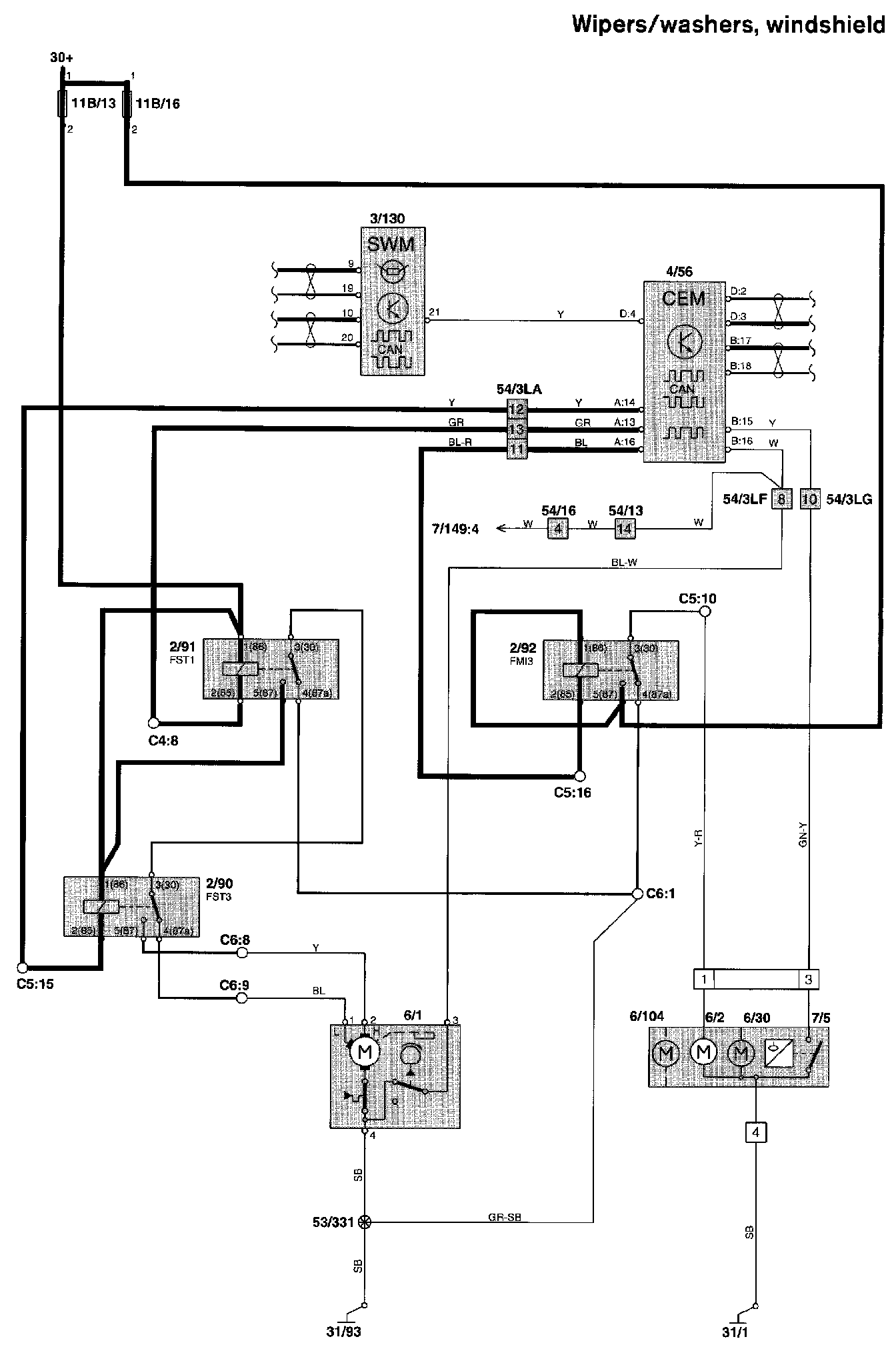

Wipers/Washers, Windshield




Wipers/washers, Windshield:






Diagram Legend, Diagram Legend
