Home >> Volvo >> 2003 >> XC70 L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Electronic Immobilizer

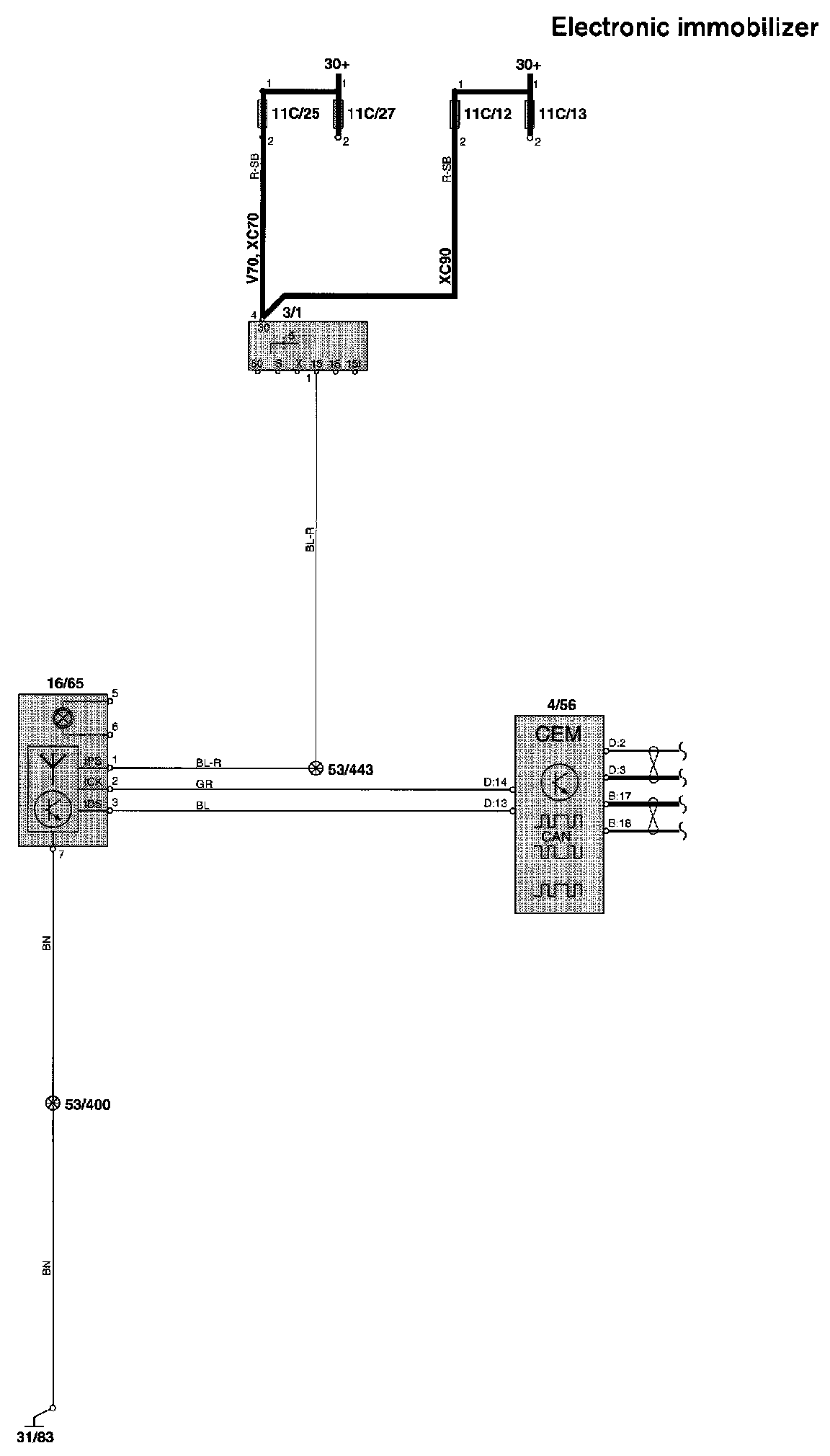

Electronic Immobilizer




Electronic Immobilizer:






Diagram Legend, Diagram Legend
